8-56 Section 8-19 - Replacement of the Dock Cart Components

8-19-12 Replacement of the Top Probe Holder

8-19-12-1 Manpower

One person, 2 minutes

8-19-12-2 Tools

none

8-19-12-3 Preparations

none

8-19-12-4 Top Probe Holder - Removal Procedure

1.) Carefully pull out the Top Probe Holder.

8-19-12-5 Top Probe Holder - Installation Procedure

1.) Place the new Top Probe Holder.

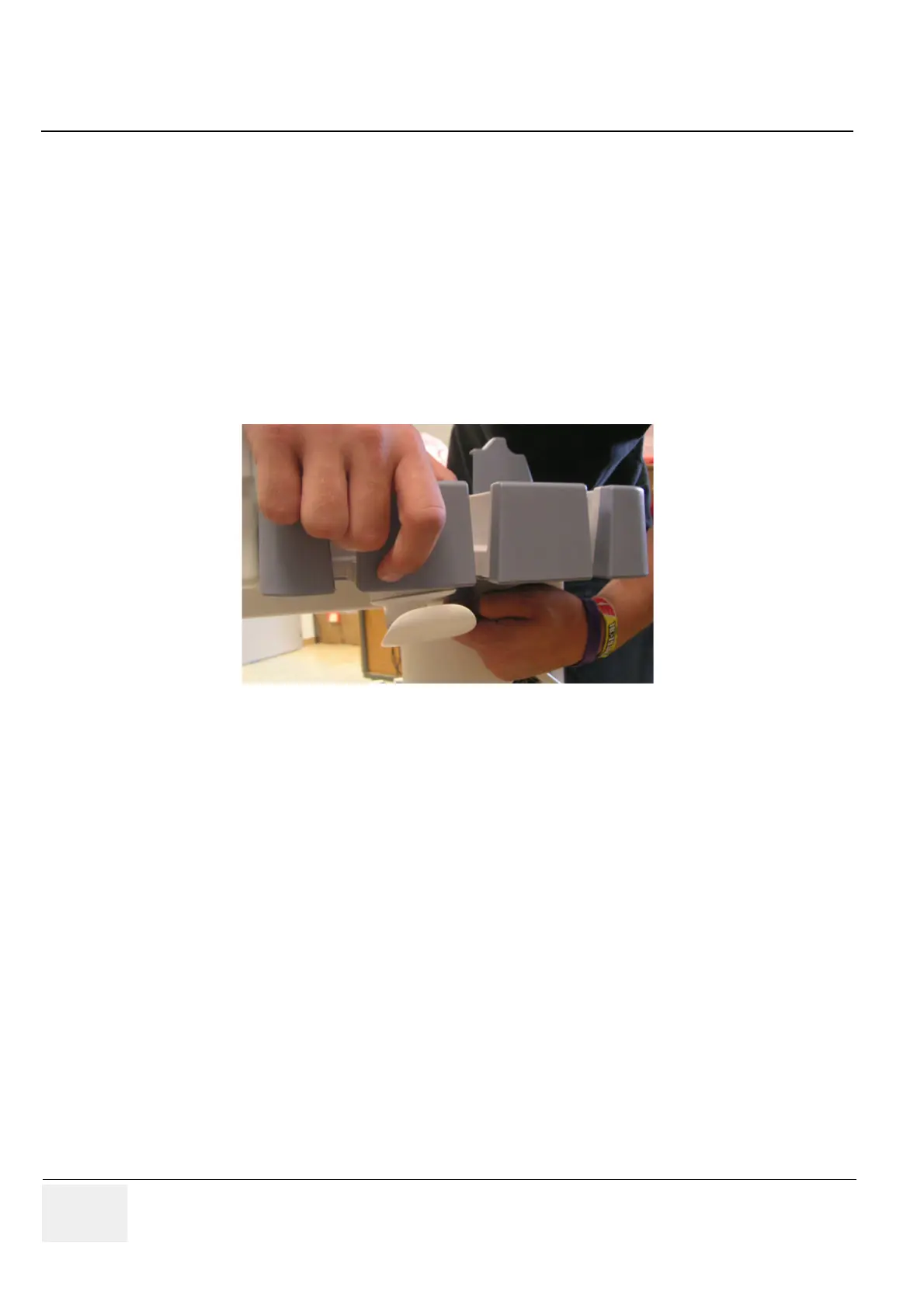

Figure 8-76 pull out the Top Probe Holder
