SECTION 4: MOTOR GUIDE T200 User's Manual
PAGE 4-5
4.2.2 Motor Nameplate
S/N: serial number
Date: production quarter and year
Model: motor model number
Type: electric model, description optional brake
n
N
: nominal speed (speed at P
N
)
n
max
: maximum speed
P
N
: nominal power (maximum continuous power)
J: moment of inertia
M
0
: continuous stall torque
I
0
: continuous stall current
R
tt
: terminal to terminal resistance
U
d
: bus voltage
Further electrical data can be found in the catalogue.

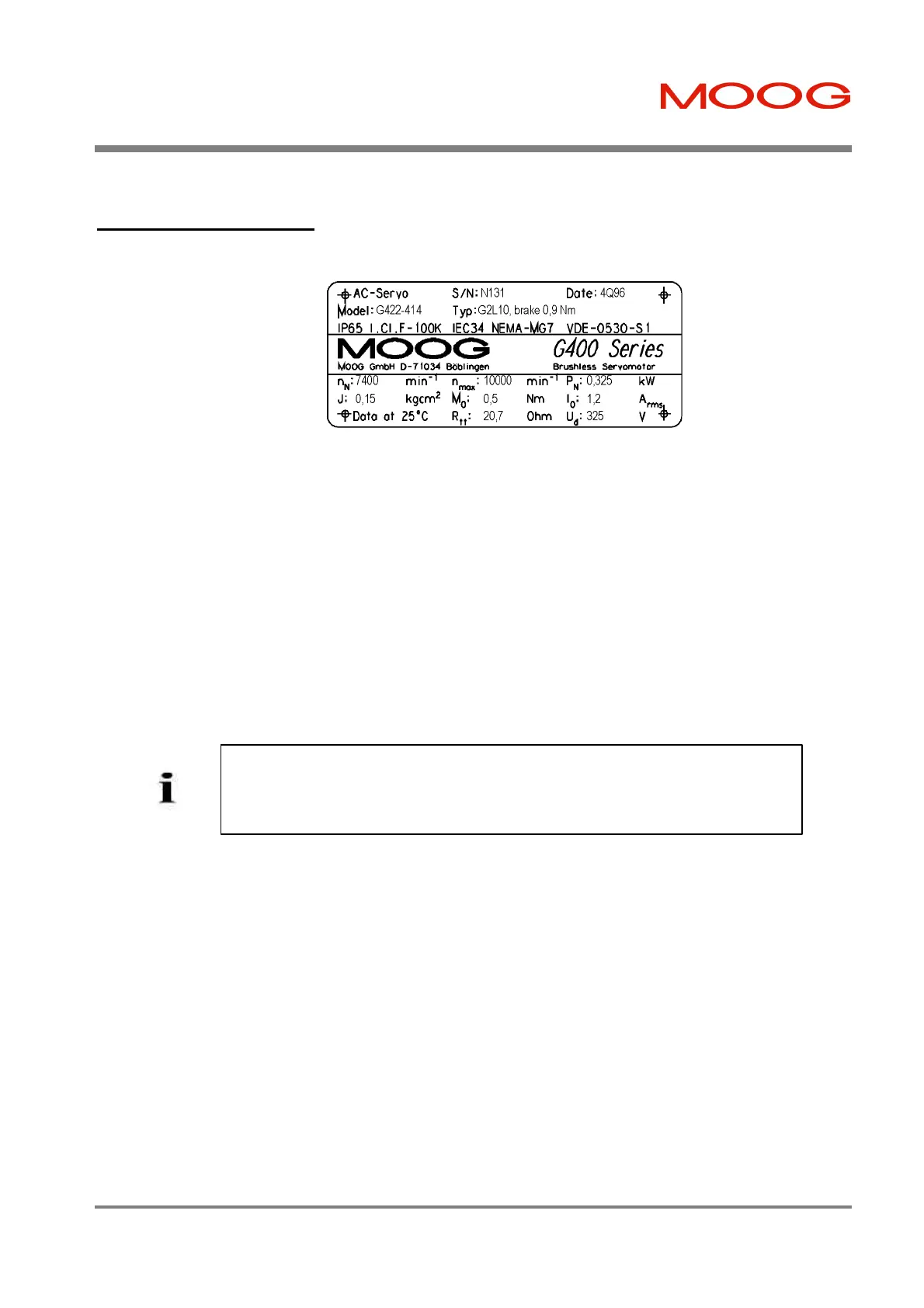

Figure 4.1:- Example Nameplate
The nameplate serves to identify the product. Check whether the nameplate on the device
matches the nameplate illustrated above. This documentation must not be used for
commissioning and startup if the nameplates do not match. Devices without nameplate
are not covered by the manufacturer's warranty and must not be put into operation.
