Figure 7.44: Regen Resistor Configuration Dialog Box
Select Regen Kit: Allows the selection of the regen kit used in the application. The selection is based on the maximum
continuous power of the regen resistor kit. Data of a regen resistor not supplied by MOOG can be set up under “Other”.
This option allows the setting of the resistor value and the maximum continuous power of the resistor.
7.10.1.10 Saving a Configuration to Non-Volatile Storage
On completion of the Basic DriveSetup, the completed
tuning information is downloaded to drive EEPROM using
the Save to EEPROM function. By clicking on the Save
button, the parameters which have been set in the T200
volatile storage are transferred into non-volatile storage,
and the T200 will be configured with these parameters the
next time the T200 is powered-on or reset.

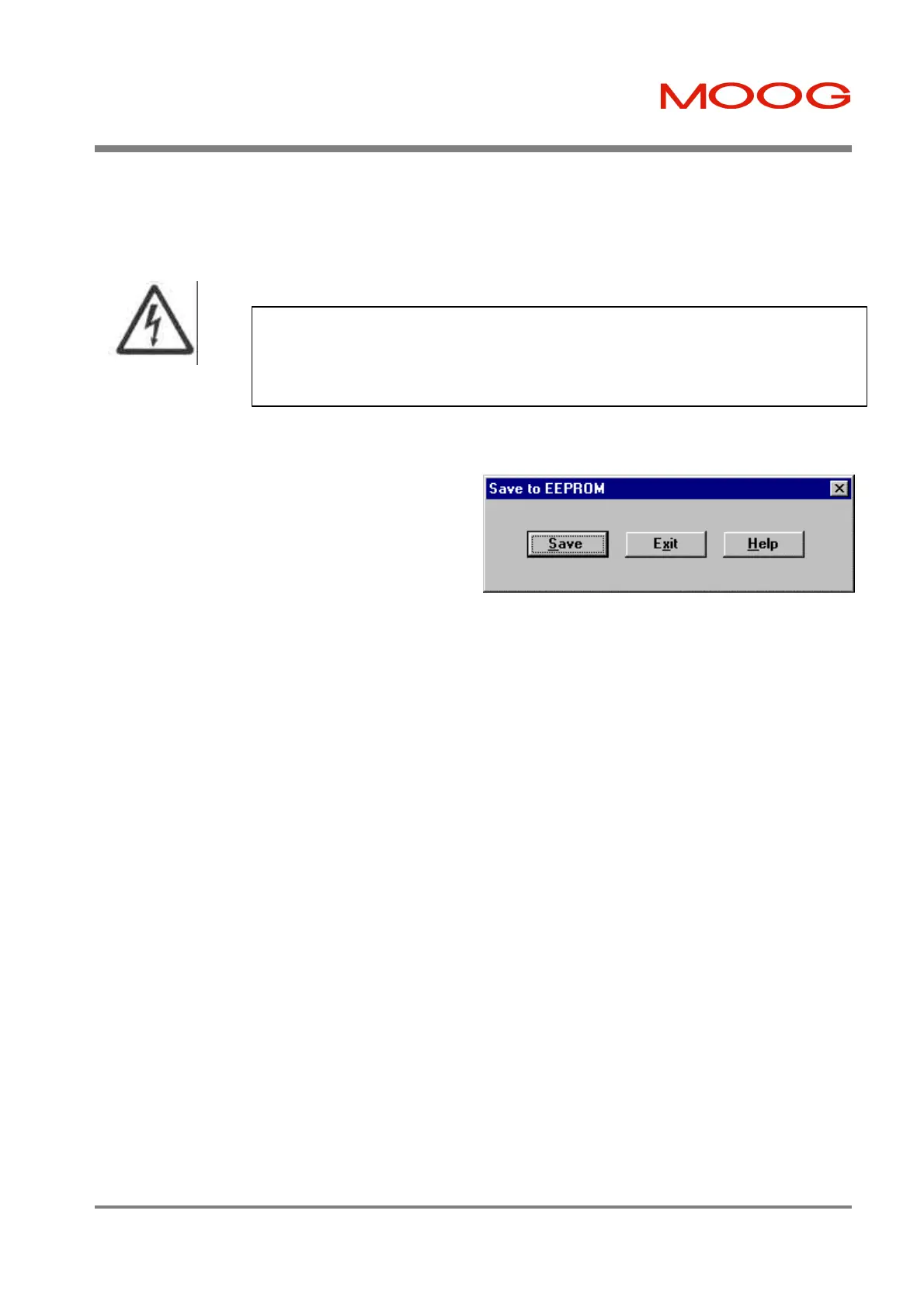

Figure 7.45: Save to EEPROM Dialog Box
: It is the user’s responsibility to ensure that the correct regen configuration is set
up. The Regen Exceeded functionality is the only protective mechanism which indicates to the
user that the continuous regen power for the regen resistor is exceeded. Excessive regen power
will thermally damage the regen resistor. Dependent on the material of the regen resistor the
