T200 User's Manual SECTION 5: QUICK START
PAGE 5-8
5.1.3.6 Step 6:- Encoder Simulation
Many applications, especially those applications that use the T200 in ± 10V command Velocity or Torque Mode, use the
T200's inbuilt Encoder Simulation to feed back the motor shaft position to a master Motion Controller System. The user
should set the number of Lines per Revolution to match that required by the Motion Controller by setting the Number of
Lines per Revolution input. Moog recommends the use of the 1024 or 512 lines per revolution options.
The Encoder Simulation is described in detail in Section 6.9.

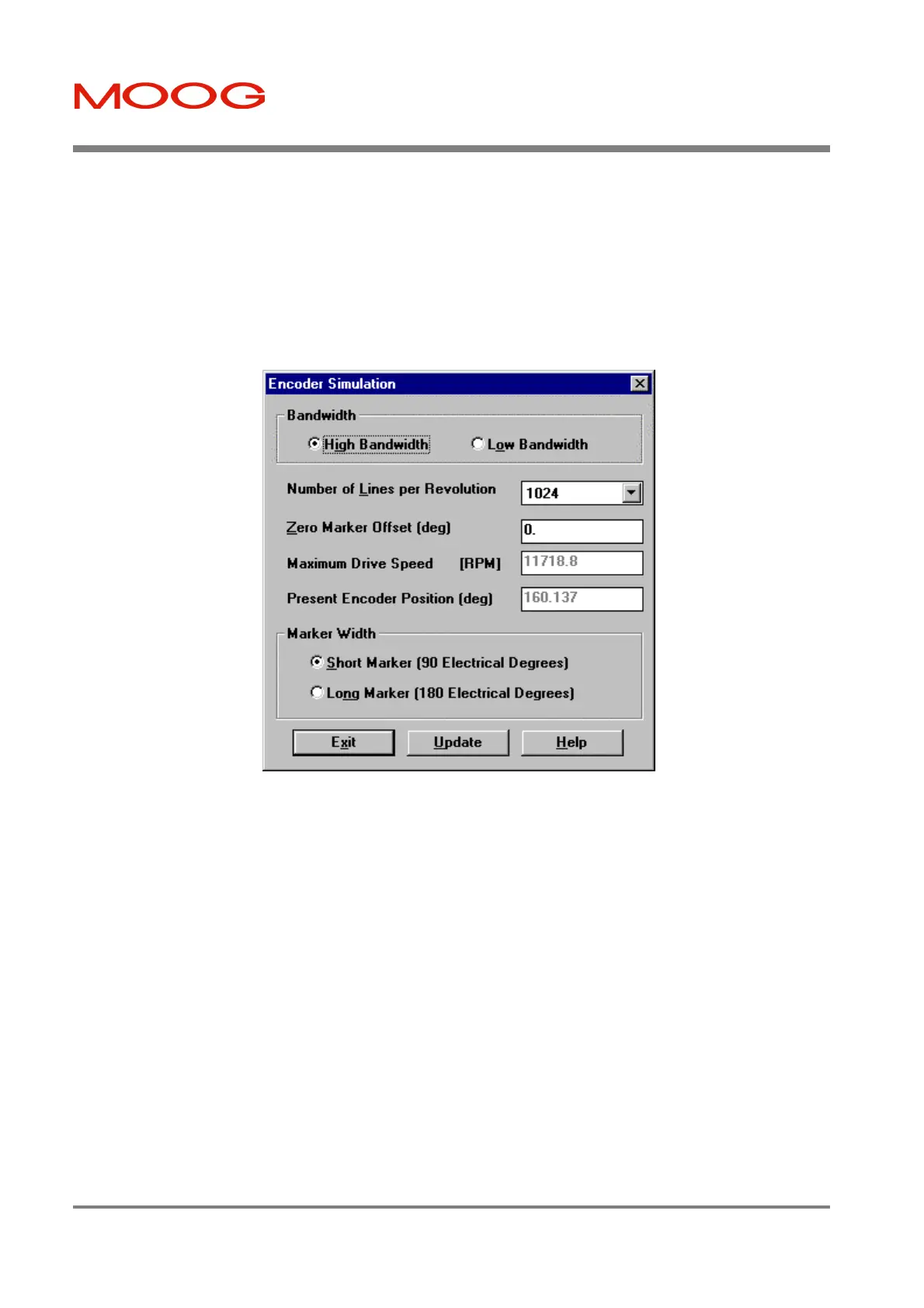

Figure 5.6:- Setting Up the Encoder Simulation
Click the Update Button to activate the settings. Click Exit to leave the dialog box.
