SECTION 7: WINDRIVE T200 User's Manual
PAGE 7-29
7.9.7 Fault Status

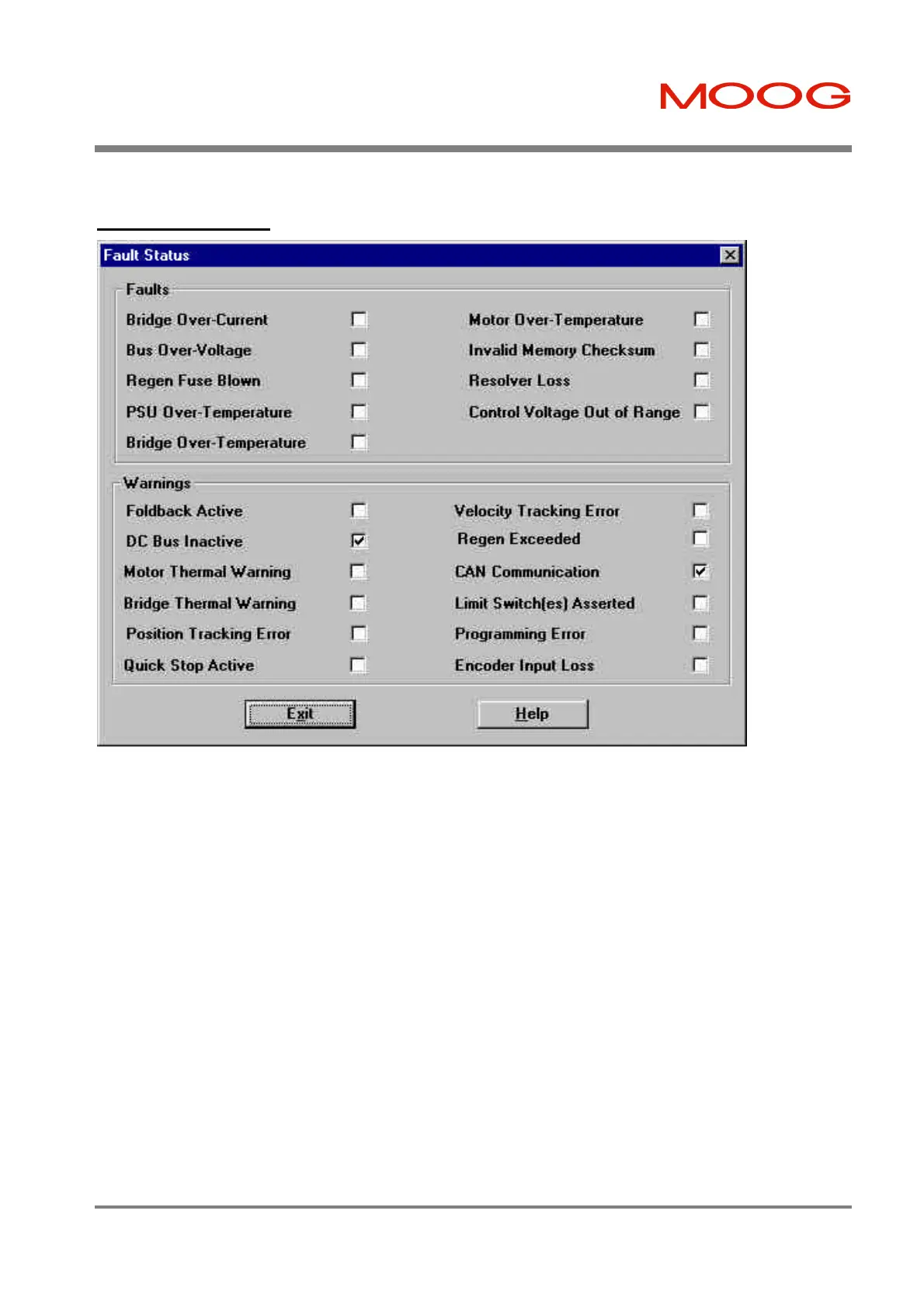

Figure 7.26: Fault Status Dialog Box
This dialog is available by selecting Fault Status from the Drive Menu. This dialog box provides an overview of
current fault and warning conditions and is constantly updated by the WinDrive software. This dialog is useful in
diagnostic as well as system querying procedures.
