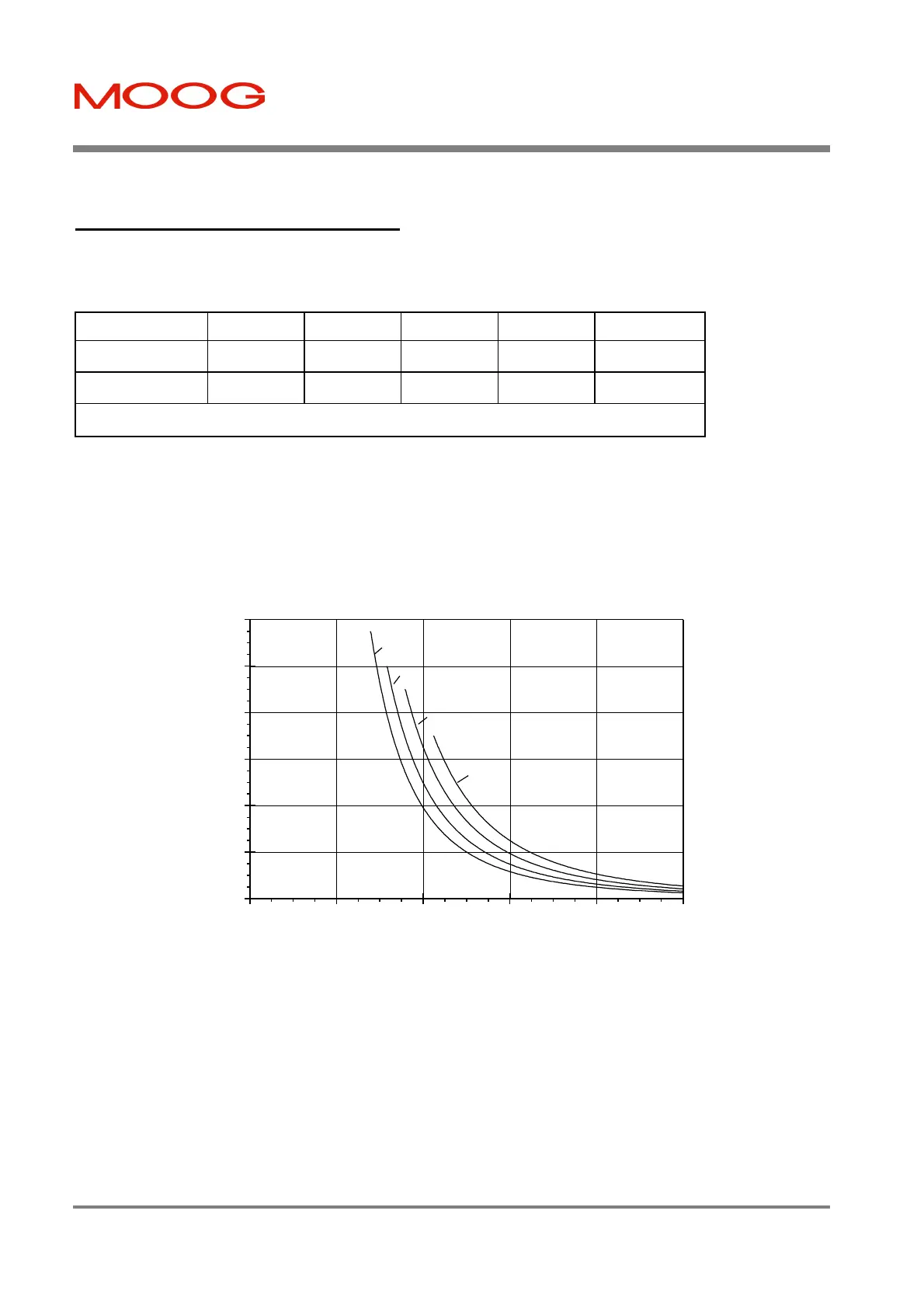

T200 User's Manual SECTION 4: MOTOR GUIDE
PAGE 4-16
4.6.3 Rated Bearing Load Capacity
Radial load capacity, shown in Figure 4.3 to Figure 4.7, are for a B10 life of 20,000 hours. The load is applied at shaft
extension midpoint. Curves are based on minor axial shaft loads. Consult factory for other loading conditions.
Maximum permissible axial and radial forces for brushless MOOG servomotors during installation refer to Table 4.7.
Motor size G4x2 G4x3 G4x4 G4x5 G4x6
Axial force
1) 150N 150N 300N 400N 500N
Radial force
1) 500N 500N 1000N 1600N 2000N
1): During installation. Lower loads apply for the rotating motor, see catalog.
Table 4.6 Installation Loads
0 100 200 300 400 500
0
2000
4000
6000
8000
10000
12000
G4x2-8xx
G4x2-6xx
G4x2-4xx
G4x2-2xx
Motor Series G4x2
Speed [rpm]
Radial Load Capacity [N]
Figure 4.3:- Radial Load Capacity G4x2
