SECTION 7: WINDRIVE T200 User's Manual
PAGE 7-19
7.8 Menu Options
7.8.1 File Menu Options
• Open - Opens a previously saved log (file extension *.log) or Data Logger (file extension *.mdl) file.
• Save - Saves the current Data Logger or log file data to disk for future use.
• Print Plots - Three options are available from the Print Plots option:
1. Print Graph - Prints the selected plot.
2. Print Page - Prints plots for both Data Logger channels.
3. Print Options - Allows printing parameters to be changed.
• Print Logfile - Prints the current log file.
• Print Setup - Printer and printing options are configured using Printer Setup.
• Save to EEPROM - Saves the current drive configuration to the servo-drive
non volatile storage.
• Configuration Upload - Transfers the drive parameters listed in the *.cfg file
from the drive to a specified log file.
• Configuration Download - Transfers parameters stored in a *.log file to the
drive.
• Passwords - Allows the set-up and changing of servo-drive access passwords.
• Exit - Exits the WinDrive system.

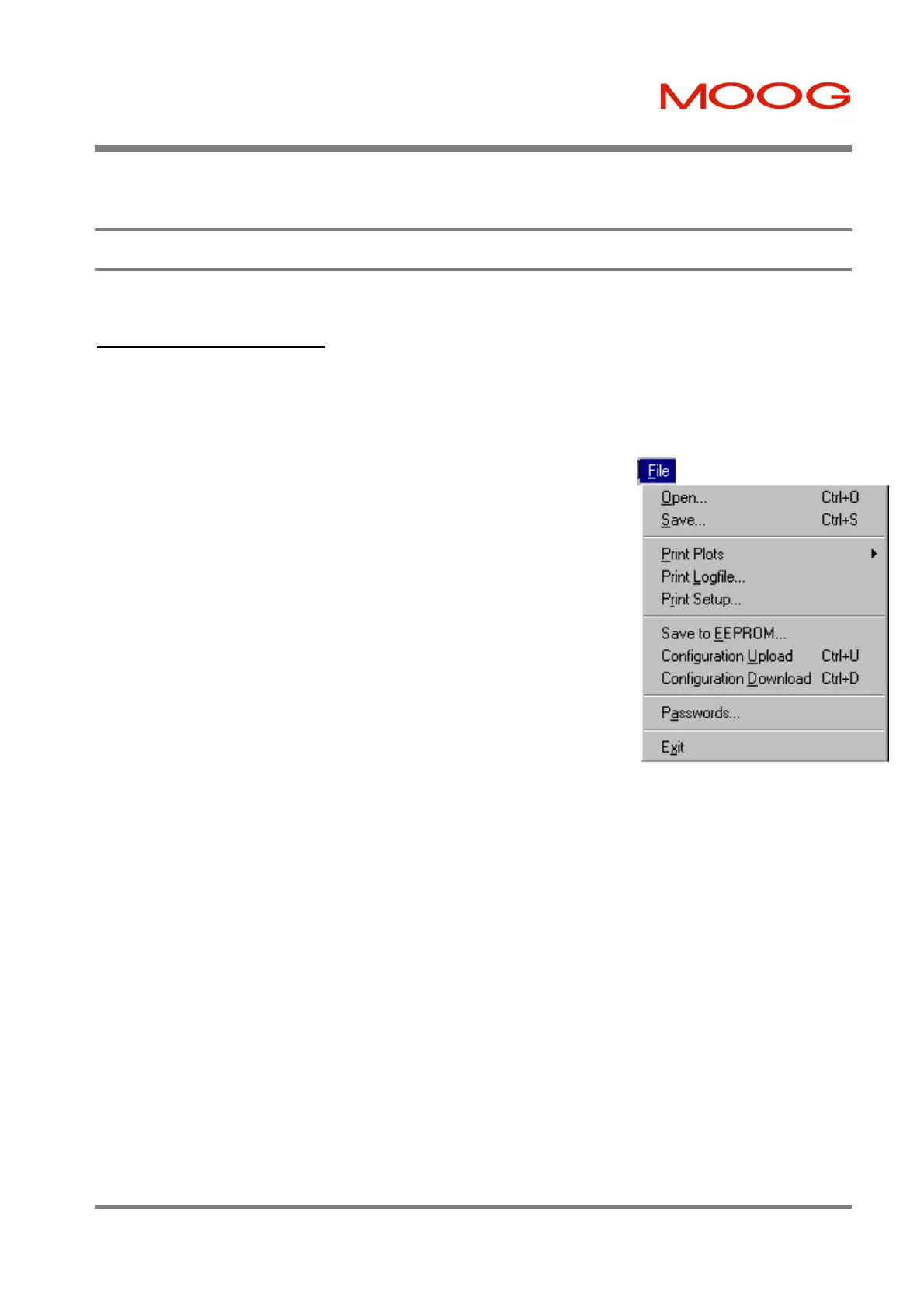

Figure 7.8: File Menu Options
