SECTION 5: QUICK START T200 User's Manual
PAGE 5-5
5.1.3.2 Step 2:- Setup the Reference Source
The user should next select the reference source for the T200. The Reference Source determines where the reference
signal is coming from.

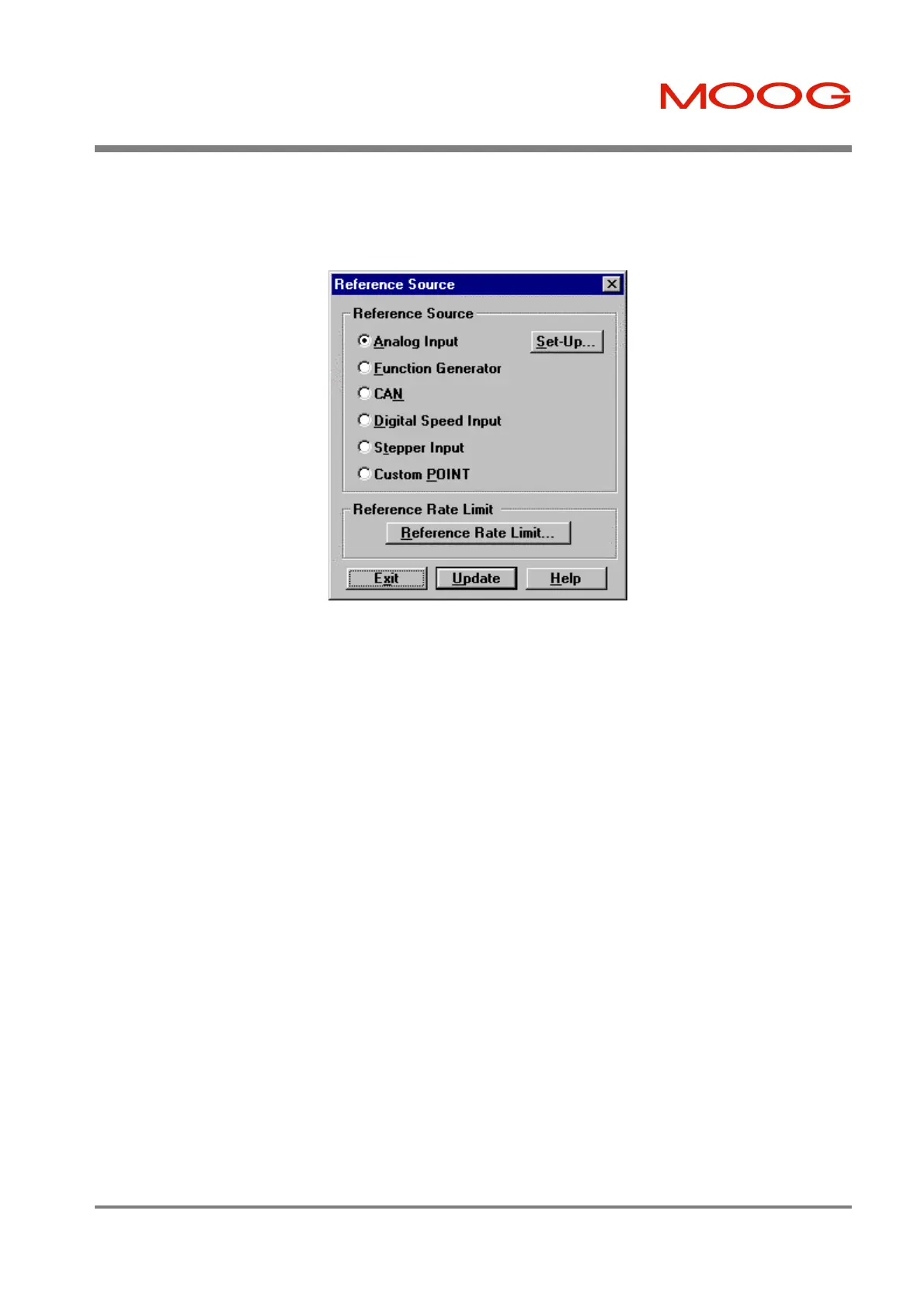

Figure 5.2:- Selecting the Reference Source
The appropriate choice should first be made by selection of the appropriate Radio Button. The Set-Up button should
then be left clicked to setup details of the particular reference mode, in order to ensure that the T200 is operating
correctly.
Moog recommends that the T200 unit is operated in Function Generator Mode, with very low excitation values (Speed
Amplitude 100RPM, Speed Offset 0RPM, Torque Amplitude 0.5Nm, Torque Offset 0Nm, Period 1s), in order to check
that the unit is wired correctly. (When the Quick-Start sequence is completed, then the unit can be enabled and the
movement checked, to do a simple check that the T200 is wired correctly.)
Please refer to Section 6 for a more detailed explanation of the operation of the T200 in various reference modes.
Click the update button to activate the settinge. Click Exit to leave the dialog box.
