Version 5.2 127 September 2007
SIP User's Manual 5. Web-based Management
¾ To configure the IP to Trunk Group Routing table, take these 6
steps:
1. Open the 'IP to Trunk Group Routing' screen (Protocol Management menu >
Routing Tables submenu > IP to Trunk Group Routing option).

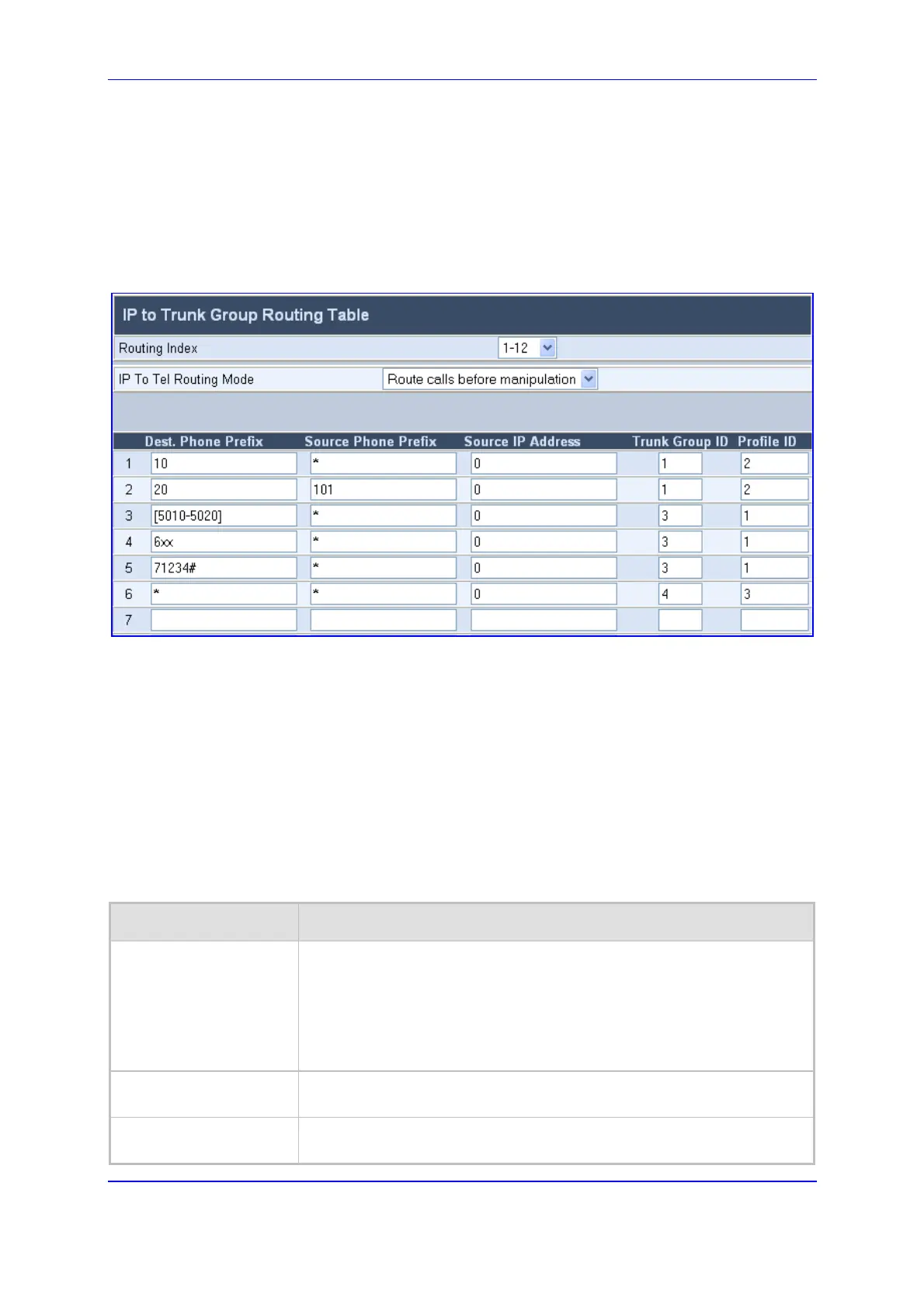

Figure 5-17: IP to Trunk Group Routing Table Screen
2. From the 'IP to Tel Routing Mode' field, select the IP to Tel routing mode (refer to the
table below).
3. From the 'Routing Index' drop-down list, select the range of entries that you want to
add. Up to 24 entries can be configured.
4. Configure the 'IP to Trunk Group Routing' table according to the table below.
5. Click the Submit button to save your changes.
6. To save the changes so they are available after a power fail, refer to 'Saving
Configuration' on page 256.
Table 5-21: IP to Trunk Group Routing Table
Parameter Description
IP to Tel Routing Mode
[RouteModeIP2Tel]
Defines order between routing calls to Trunk group and manipulation of
destination number.
 [0] Route calls before manipulation = IP-to-Tel calls are routed before
the number manipulation rules are applied (default).
 [1] Route calls after manipulation = IP-to-Tel calls are routed after the
number manipulation rules are applied.
Dest. Phone Prefix
Represents a called telephone number prefix. The prefix can be 1 to 49
digits long. An asterisk (*) represents all numbers.
Source Phone Prefix
Represents a calling telephone number prefix. The prefix can be 1 to 49
digits long. An asterisk (*) represents all numbers.
