SIP User's Manual 32 Document #: LTRT-68806
Mediant 2000 & TP-1610 & TP-260/UNI
Before rack-mounting the chassis, attach the two front mounting brackets (supplied) to the
front sides of the Mediant 2000, as described in the procedure below.
¾ To attach the two front side mounting brackets, take these 3 steps:
1. On one side of the Mediant 2000, remove the two screws located nearest the front
panel.
2. Align a bracket over the two holes from which you removed the screws in the step
above (so that the bracket’s larger holes face the front) and with the two replacement
screws (supplied), screw in the bracket.
3. Perform the same procedure on the other side of the Mediant 2000.

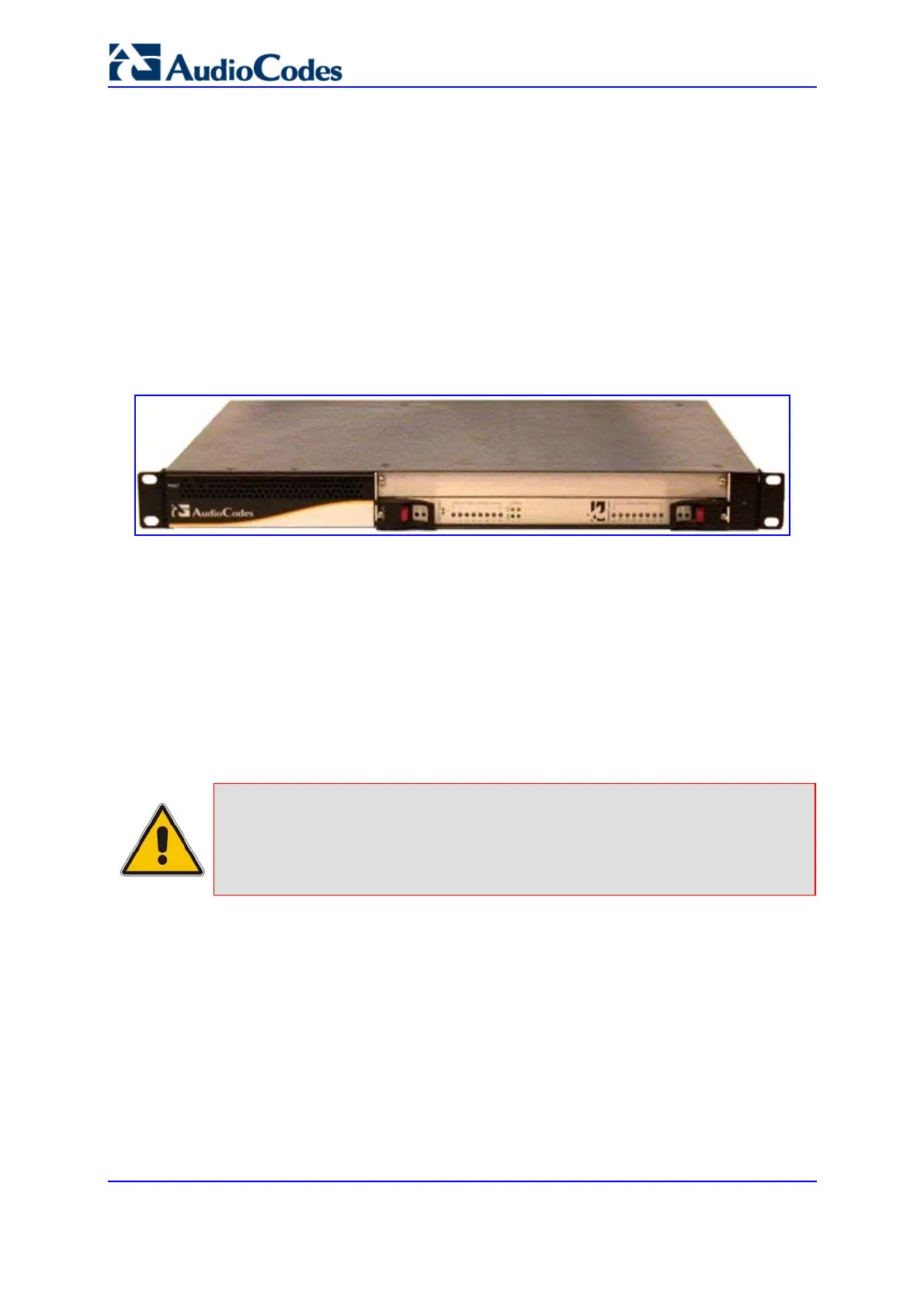

Figure 3-2: Front View with 19-inch Rack-Mount Brackets
¾ To install the Mediant 2000 in a 19-inch rack, take these 2 steps:
1. Position the device in your 19-inch rack and align the left-hand and right-hand bracket
holes to holes (of your choosing) in the vertical tracks of the 19-inch rack.
2. Use standard 19-inch rack bolts (not provided) to fasten the device to the frame of the
rack.
AudioCodes recommends using two additional rear mounting brackets (not supplied) for
added support.
Notes: If you are assembling the rear brackets by yourself, please note the following:
• The distance between the screws on each bracket is 26.5 mm.
• To attach the brackets, use 4-40 screws with a maximal box penetration
length of 3.5 mm.
¾ To mount the Mediant 2000 on a pre-installed shelf in a 19-inch
rack, take these 2 steps:
1. Place the Mediant 2000 on the pre-installed shelf.
2. You’re now recommended to take the optional steps of fastening the Mediant 2000 to
the frame of the rack (as described above) while it is placed on the shelf, so
preventing it from sliding when inserting cables into connectors on the rear panel.
