SIP User's Manual 378 Document #: LTRT-68806
Mediant 2000 & TP-1610 & TP-260/UNI

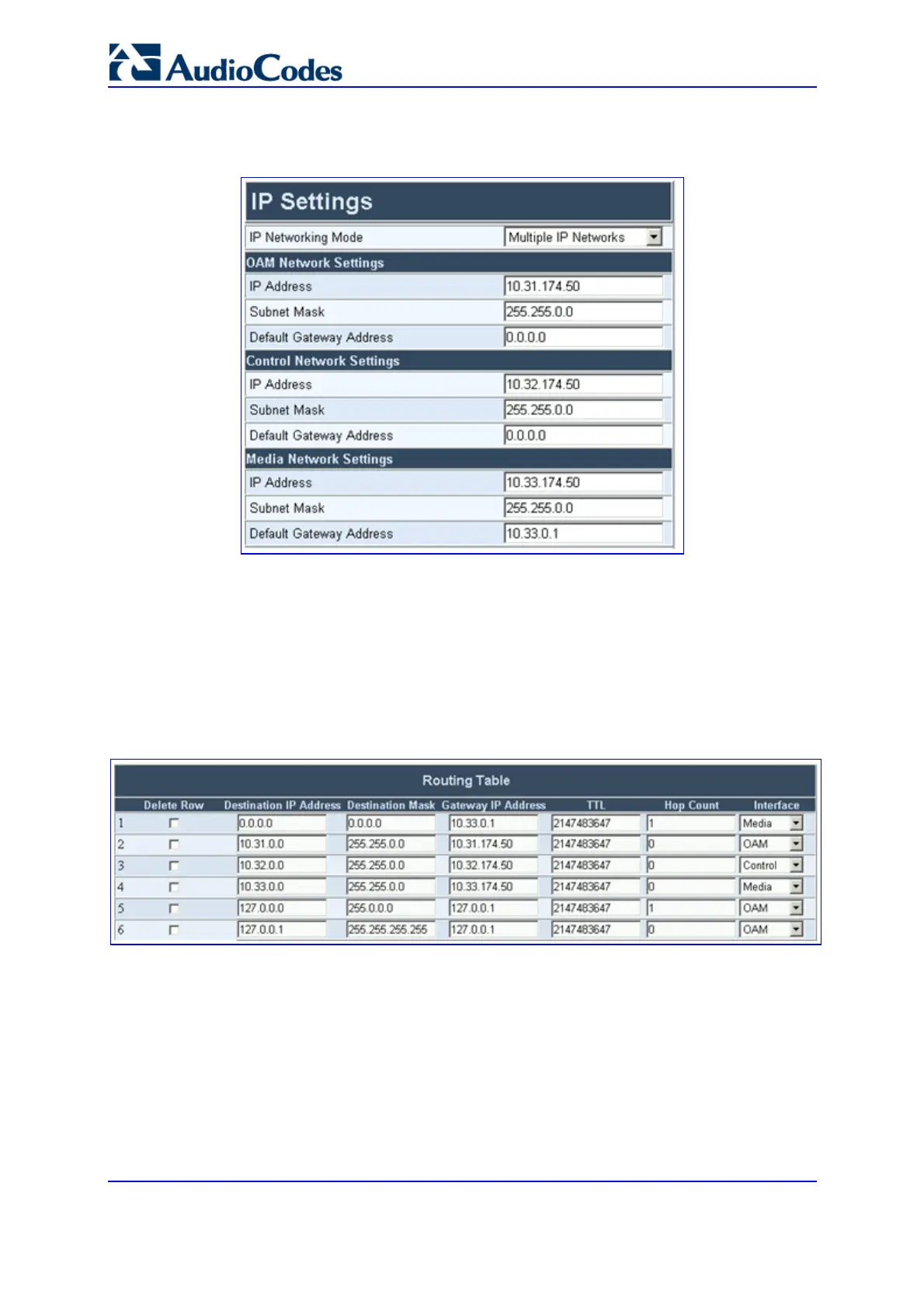

Figure 8-2: IP Settings Screen - Example
c. Click the Submit button to save your changes.
5. Configure the IP Routing table by completing the following steps (the IP Routing table
is required to define static routing rules for the OAM and Control networks since a
default gateway isn’t supported for these networks):
a. Open the ‘IP Routing Table’ screen (Advanced Configuration menu > Network
Settings > IP Routing Table option).
Figure 8-3: IP Routing Table - Example
To Next Page
