3.3.4.2 Connecting the Ethernet Interface
Connect the TP-260 Ethernet connection, located on the front panel, directly to the network
using a standard RJ-45 Ethernet cable. The Ethernet connector is wired according to the
connector pinouts shown below:

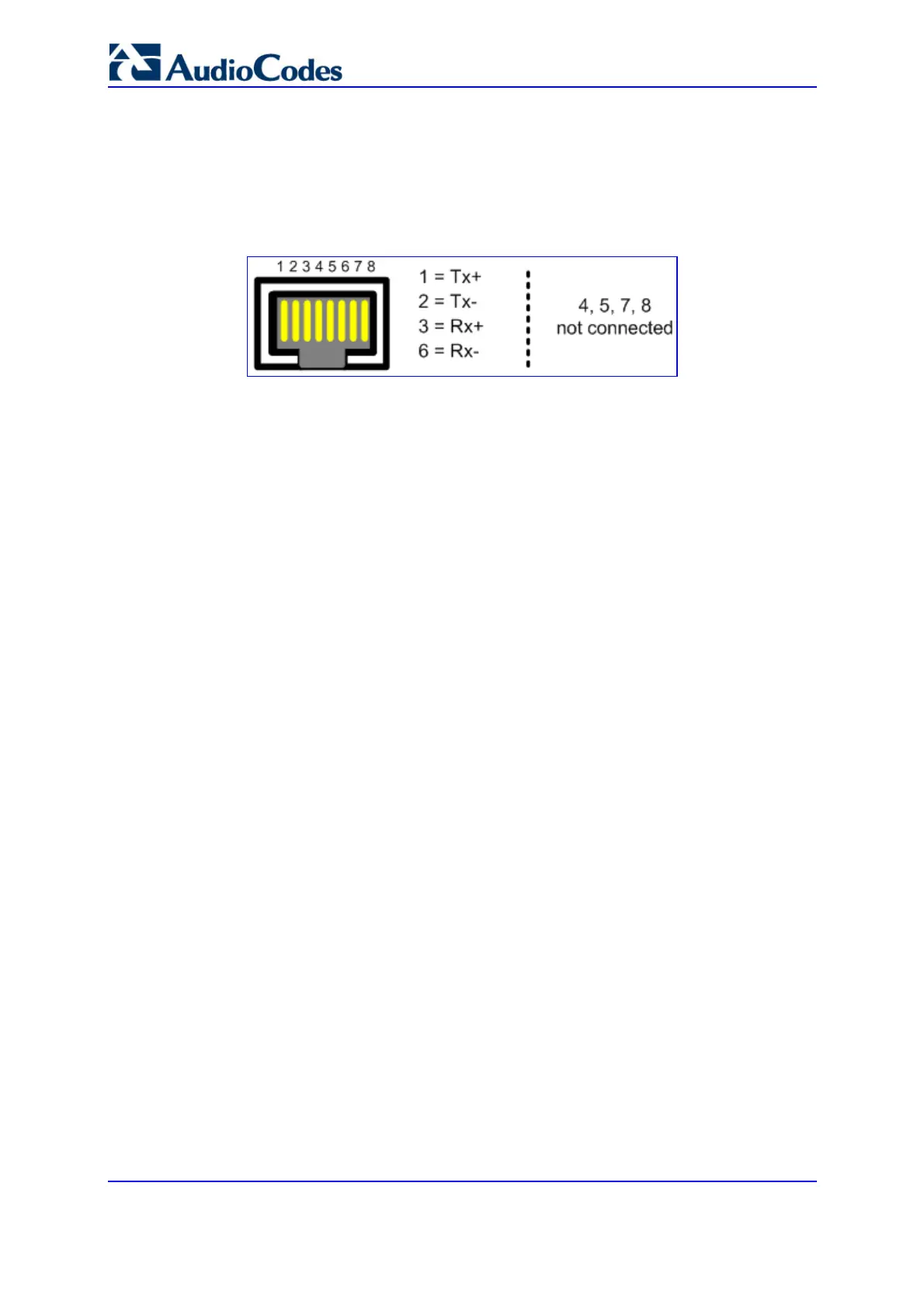

Figure 3-13: RJ-45 Connector Pinouts
Note that when assigning an IP address to the TP-260 using HTTP (in 'Assigning an IP
Address Using HTTP' on page 50), you may be required to disconnect this cable and re-
cable it differently.
