SIP User's Manual 214 Document #: LTRT-68806
Mediant 2000 & TP-1610 & TP-260/UNI
5.9.7 Configuring the IKE Table
The 'IKE Table' screen is used to configure the IKE parameters.
¾ To configure the IKE table using the Embedded Web Server, take
these 6 steps:
1. Access the Embedded Web Server (refer to 'Accessing the Embedded Web Server'
on page 60).
2. Open the ‘IKE Table’ screen (Advanced Configuration menu > Security Settings >
IKE Table option).

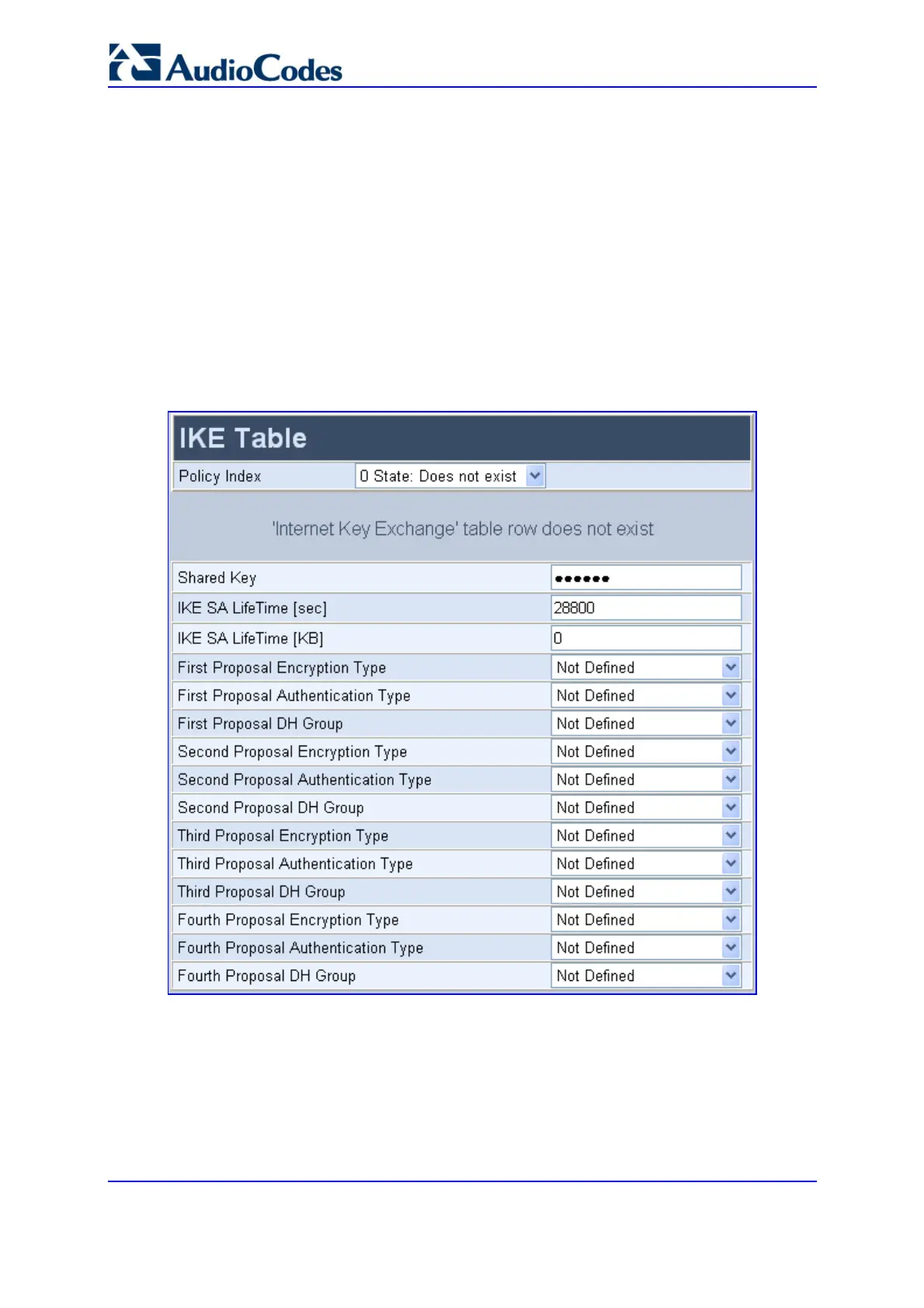

Figure 5-44: IKE Table Screen
3. From the ‘Policy Index’ drop-down list, select the peer you want to edit (up to 20 peers
can be configured).
4. Configure the IKE parameters according to the parameters described in the table
below. Up to two IKE main mode proposals (Encryption / Authentication / DH group
combinations) can be defined. The same proposals must be configured for all peers.
