SIP User's Manual 210 Document #: LTRT-68806
Mediant 2000 & TP-1610 & TP-260/UNI
5.9.6 Configuring the IPSec Table
The 'IPSec Table' screen is used to configure the IPSec SPD (Security Policy Database)
parameters.
¾ To configure the IPSec SPD table using the Embedded Web
Server, take these 6 steps:
1. Access the Embedded Web Server (refer to 'Accessing the Embedded Web Server'
on page 60).
2. Open the ‘IPSec Table’ screen (Advanced Configuration menu > Security Settings
> IPSec Table option).

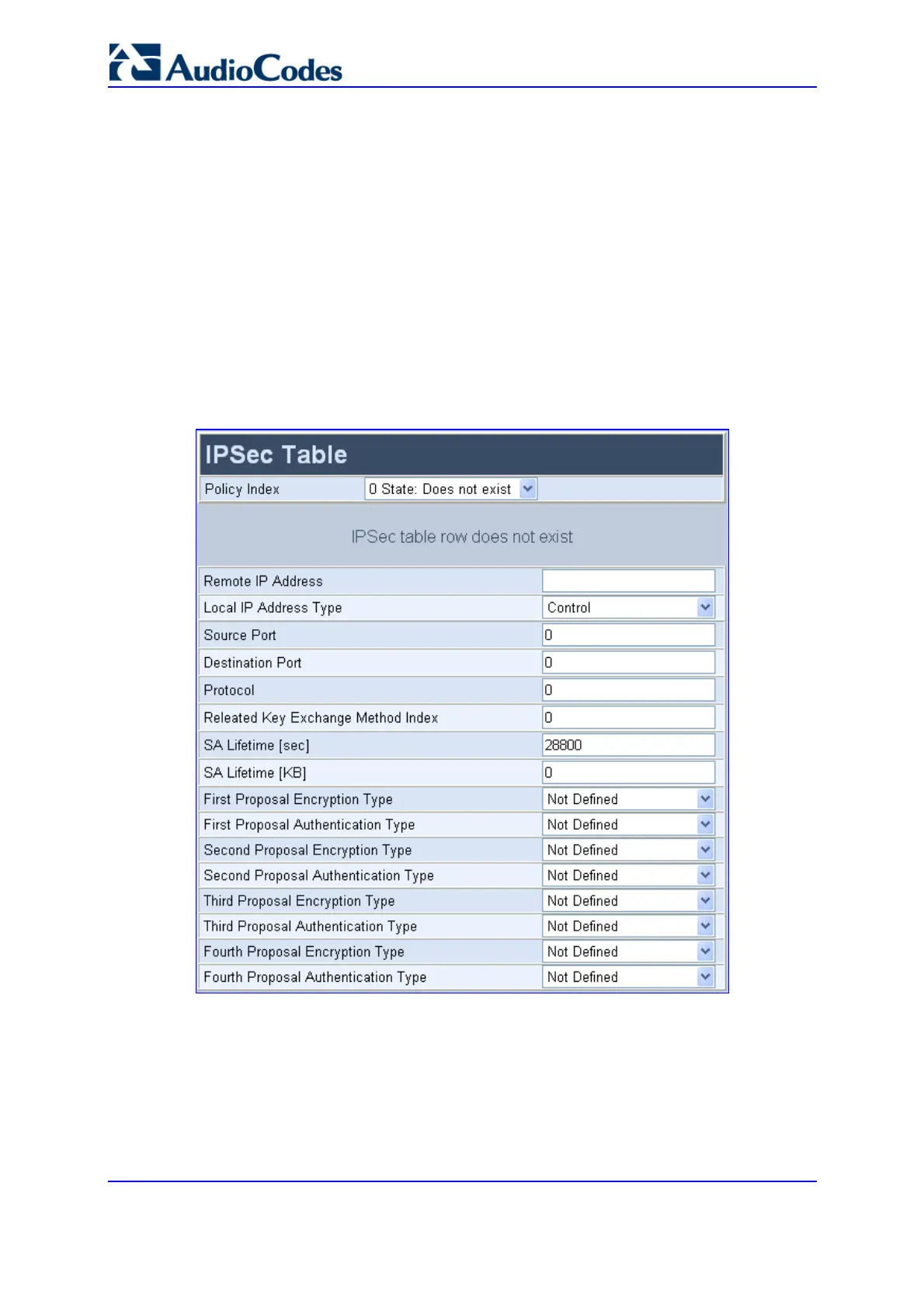

Figure 5-43: IPSec Table Screen
3. From the ‘Policy Index’ drop-down list, select the rule you want to edit (up to 20 rules
can be configured).
4. Configure the IPSec SPD parameters according to the table below.
5. Click the button Create; a row is added in the IPSec table.
6. To save the changes to flash memory, refer to 'Saving Configuration' on page 256.
