Version 5.2 99 September 2007
SIP User's Manual 5. Web-based Management
5.5.1.4 DTMF & Dialing Parameters
The DTMF & Dialing option is used to configure parameters associated with dual-tone
multi-frequency (DTMF) and dialing.
¾ To configure the DTMF and dialing parameters, take these 4 steps:
1. Open the 'DTMF & Dialing' screen (Protocol Management menu > Protocol
Definition submenu > DTMF & Dialing option).

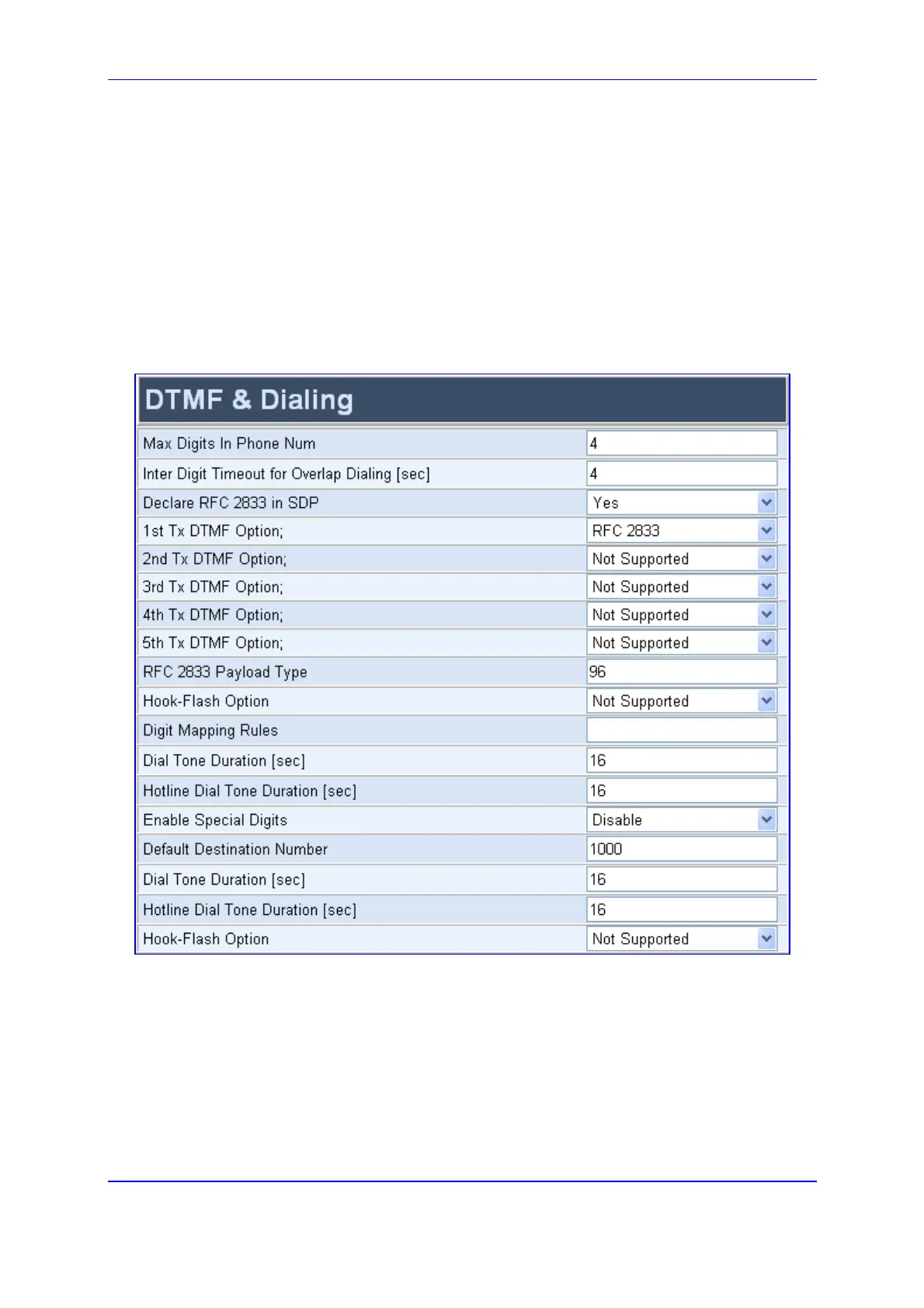

Figure 5-11: DTMF & Dialing Screen
2. Configure the DTMF and dialing parameters according to the table below.
3. Click the Submit button to save your changes.
4. To save the changes to flash memory, refer to 'Saving Configuration' on page 256.
