SIP User's Manual 2. Physical Description
2.1.3 Optional CPU Blade
The Mediant 2000 provides an optional second cPCI slot that can be optionally used for the
customer’s CPU blade. This CPU blade can be used for general applications such as a
gatekeeper, softswitch, and application server. The following CPU blades are compliant
with the Mediant 2000 chassis:
îš„ Sunâ„¢: CP2080, PMC-233 (Ramixâ„¢ on-board disk), and Rear Transition Module
(RTM)
îš„ Intelâ„¢ ZT5515B-1A with 40 GB on-board disk and RTM (ZT4807)
For details on removing and inserting the optional CPU blade, refer to the directions
accompanying it.
2.2 TP-1610 Physical Description
The TP-1610 (shown in the figure below) is composed of one or two identical gateway
modules: Gateway-1 and Gateway-2, each containing 240 DSP channels. These gateways
are fully independent, each possessing its own Media Access Control (MAC) and IP
address, as well as LED indicators.
The TP-1610 blade is supplied with an optional Rear Transition Module (RTM) that
provides I/O configuration, where both PSTN trunks and Ethernet interfaces are located on
a passive rear I/O module (for information on the RTM, refer to 'Rear Transition Module' on
page 23).

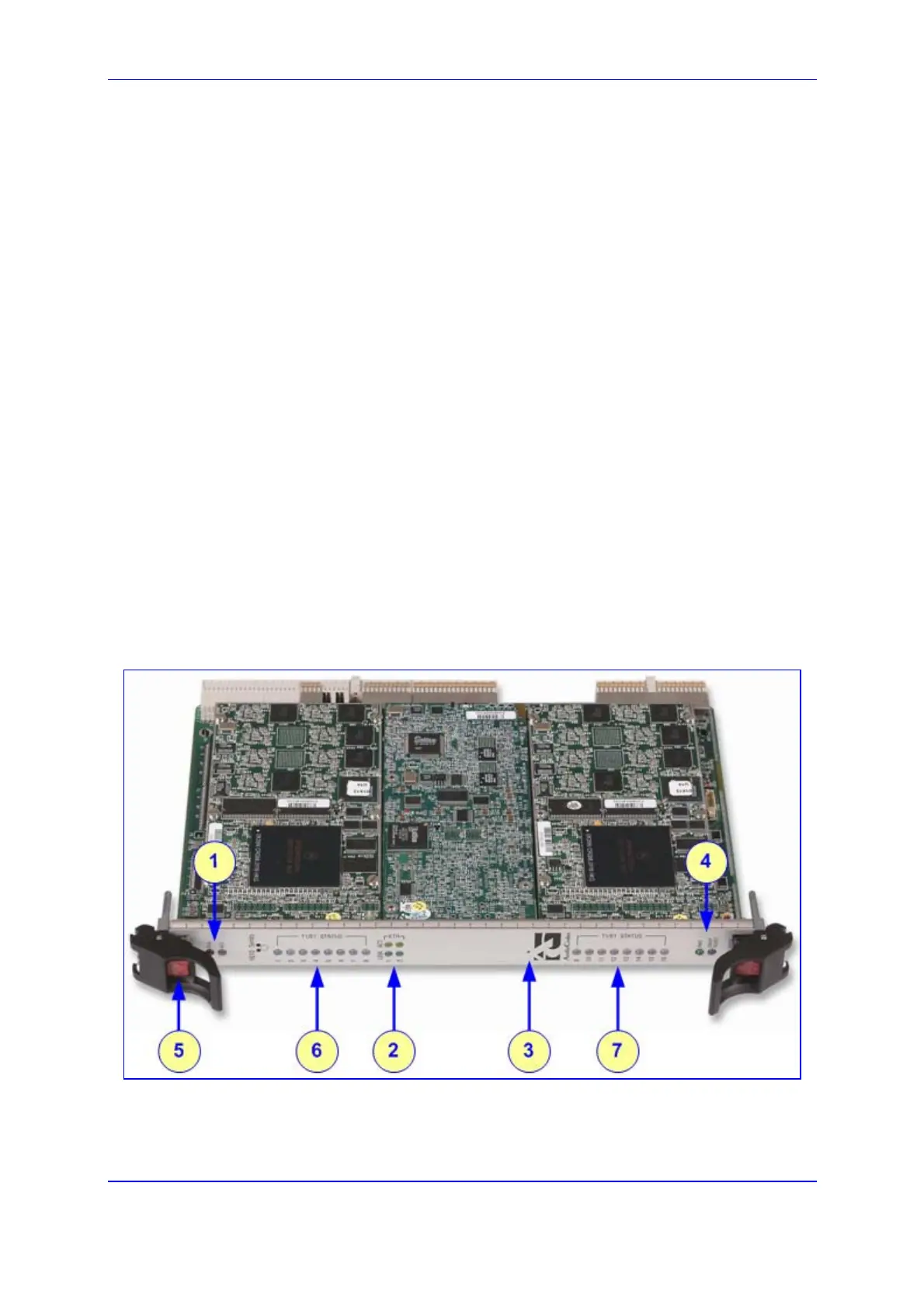

Figure 2-2: Front View of TP-1610 cPCI Blade
