SIP User's Manual 54 Document #: LTRT-68806
Mediant 2000 & TP-1610 & TP-260/UNI
4.4 Configuring Basic Parameters
To configure the gateway's basic parameters, use the Embedded Web Server’s ‘Quick
Setup’ screen (shown in the figure below). For information on accessing the Embedded
Web Server, refer to 'Accessing the Embedded Web Server' on page 60.

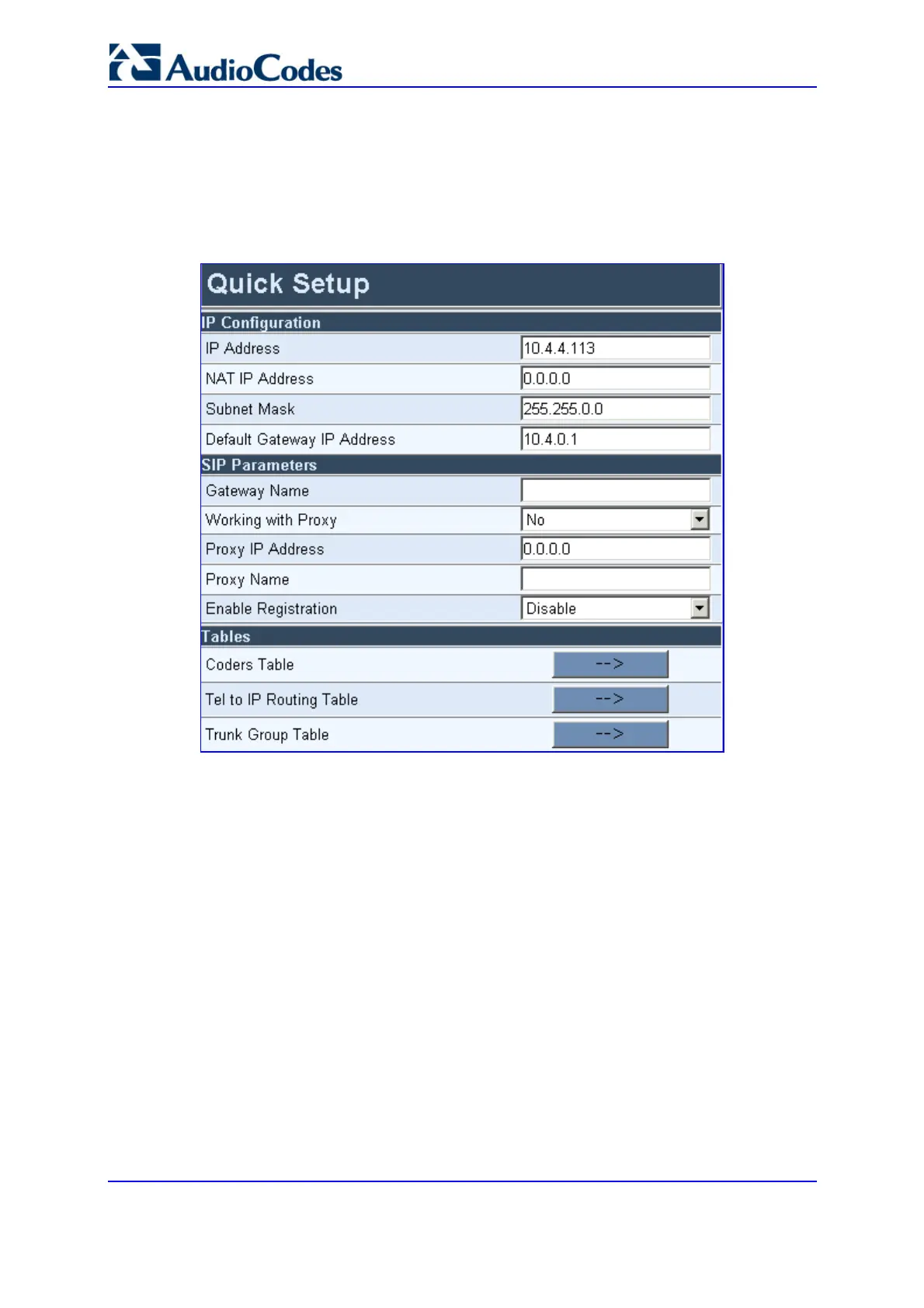

Figure 4-2: Quick Setup Screen
¾ To configure basic SIP parameters, take these 11 steps:
1. Access the ‘Quick Setup’ screen by clicking the Quick Setup menu.
2. If the gateway is connected to a router with NAT (Network Address Translation)
enabled, perform the following (if it isn’t, leave the ‘NAT IP Address’ field undefined):
• Determine the ‘public’ IP address assigned to the router (by using, for example,
router Web management). If the public IP address is static, enter this in the ‘NAT
IP Address’ field.
• Enable the DMZ (Demilitarized Zone) configuration on the router for the LAN port
where the gateway is connected. This enables unknown packets to be routed to
the DMZ port.
3. Under ‘SIP Parameters’, enter the gateway's domain name in the field ‘Gateway
Name’. If the field is not specified, the gateway's IP address is used instead (default).
4. When working with a Proxy server, set the ‘Working with Proxy’ field to ‘Yes’, and then
enter the IP address of the primary Proxy server in the field ‘Proxy IP address’. When
no Proxy is used, the internal routing table is used to route the calls.
