5.4.5.1.1 Replacing the Main Corporate Logo with an Image File
You can replace the logo in the Web interface's title bar using either the Embedded Web
Server or the ini file.
¾ To replace the default logo with your own corporate image via the
Embedded Web Server, take these 7 steps:
1. Access the gateway's Embedded Web Server (refer to 'Accessing the Embedded Web
Server' on page 60).
2. In the URL field, append the case-sensitive suffix ‘AdminPage’ to the IP address (e.g.,
http://10.1.229.17/AdminPage).
3. Click Image Load to Device; the Image Download screen is displayed, as shown in
the figure below.

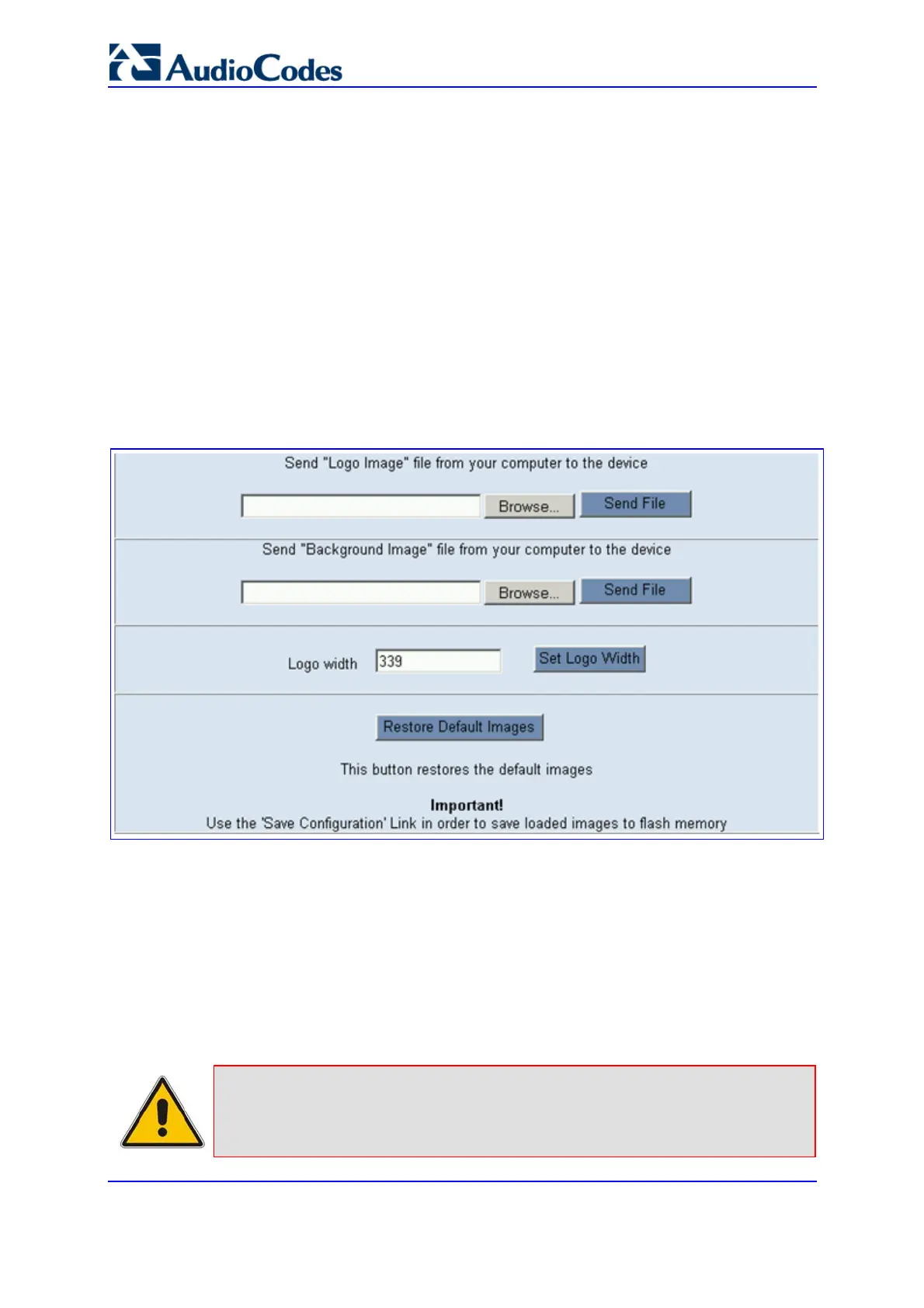

Figure 5-6: Image Download Screen
4. Click the Browse button in the 'Send Logo Image File from your computer to the
Device' box. Navigate to the folder that contains the logo image file you want to load.
5. Click the Send File button; the file is sent to the device. When loading is complete, the
screen is automatically refreshed and the new logo image is displayed.
6. If you want to modify the width of the logo (the default width is 339 pixels), in the 'Logo
Width' field, enter the new width (in pixels) and then click the Set Logo Width button.
7. To save the image to flash memory, refer to 'Saving Configuration' on page 256.
The new logo appears on all Embedded Web Server interface pages.
Note: Use a gif, jpg or jpeg file for the logo image. It is important that the image file
has a fixed height of 59 pixels (the width can be configured up to a maximum
of 339 pixels). The size of the image files (logo and background) is limited
each to 64 Kbytes.
