SIP User's Manual 34 Document #: LTRT-68806
Mediant 2000 & TP-1610 & TP-260/UNI

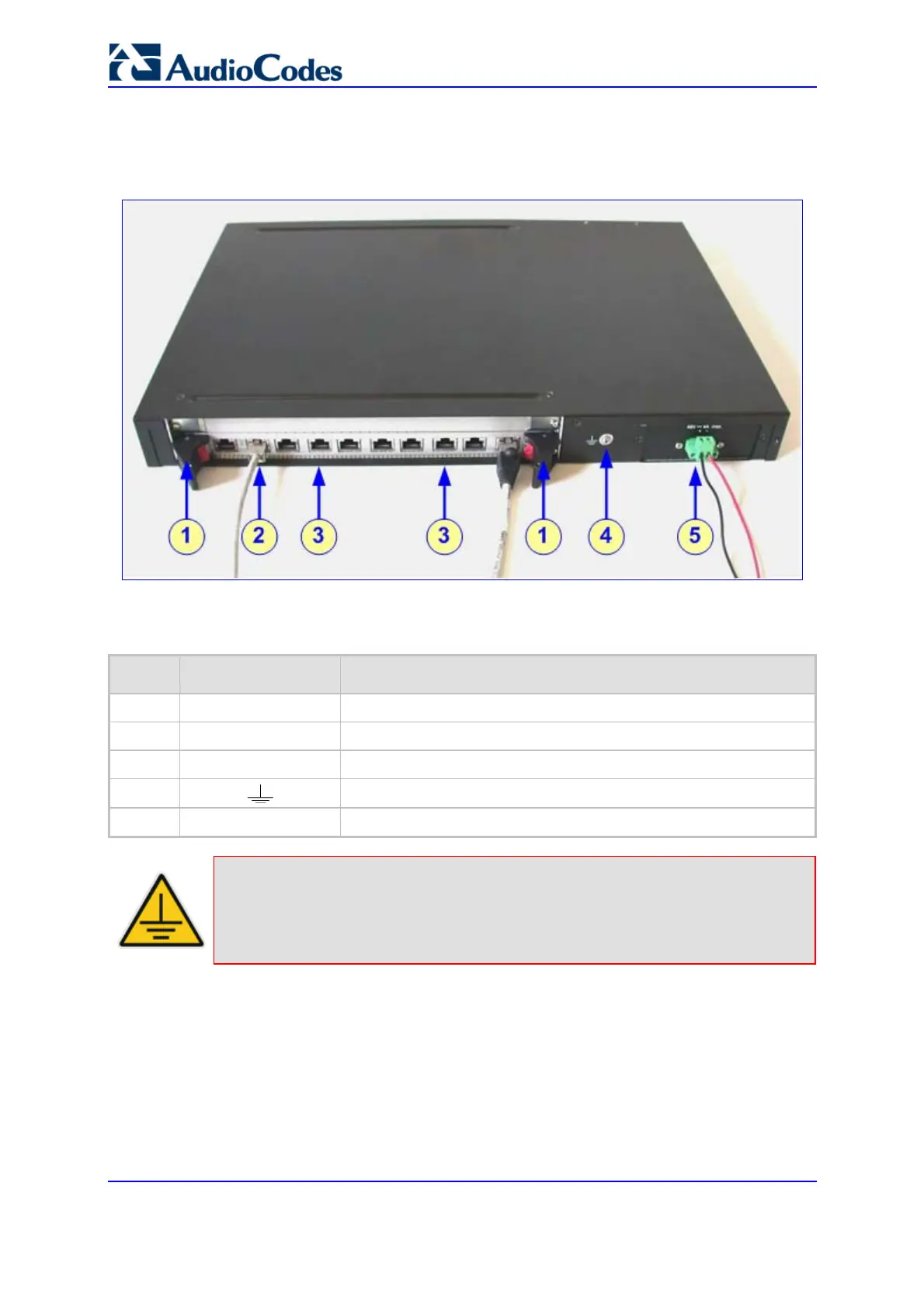

The figure below shows an example of the rear-panel cabling for Mediant 2000 providing
eight trunks and supporting DC power.
Figure 3-4: Rear-Panel Cabling (8 Trunks, DC Power)
Table 3-2: Mediant 2000 Rear Panel Cabling (8 Trunks, DC Power) Component Descriptions
Item # Label Component Description
1 -- RTM latches
2
ETH
A Category 5 network cable, connected to the Ethernet 1 RJ-45 port
3
PSTN
8 RJ-48c ports, each supporting a trunk
4
Protective earthing screw
5
48V 4A max
2-pin connector for DC
Electrical Earthing
The unit must be permanently connected to earth via the screw provided at the
back on the unit. Use 14-16 AWG wire and a proper ring terminal for the
earthing.
