E1 Series Servo Drive User Manual Basic Function Settings Before Operation
6-14 HIWIN MIKROSYSTEM CORP.
MD09UE01-1910

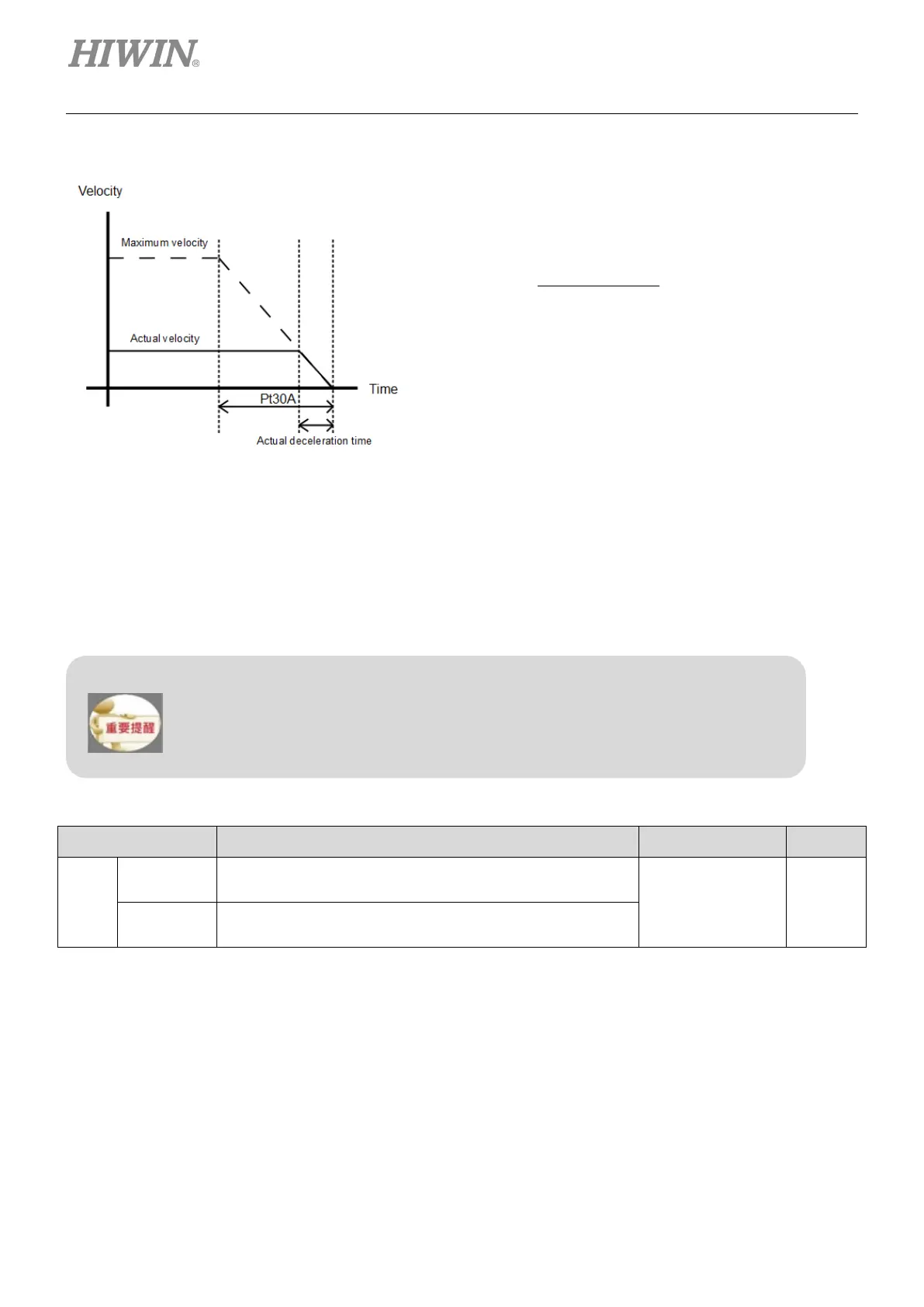

The deceleration time set in Pt30A is the time to decelerate the motor from maximum velocity to a stop.
Figure6.7.3.1
6.7.4 Overtravel warning
Overtravel warning is to detect warning AL.9A0 (Overtravel detected when servo ON (P-OT or N-OT
signal is received.)) when P-OT or N-OT signal is triggered.
Table6.7.4.1
Parameter Description Effective Category
Pt00D
t.0 Do not detect overtravel warning.
Immediately Setup
t.1
(Default)
Detect overtravel warning.
Note:
Set Pt513 to t.1 to allocate signal to the desired pin. For more information, please refer to section 8.1.
Actual deceleration time =
Actual velocity
Maximum velocity
× Deceleration time (Pt30A)
 If warning AL.9A0 (Overtravel detected when servo ON (P-OT or N-OT signal is
received.)) occurs during operation, the motor will stop but the controller can still
proceed to the following commands. If not, please check the controller.
 If the motor does not reach the target position when overtravel occurs, please check
the ratio setting for command.
