E1 Series Servo Drive User Manual Panel Operation
14-6 HIWIN MIKROSYSTEM CORP.
MD09UE01-1910
14.2.1 Setting numeric parameter
Table 14.2.1.1 describes how to change the setting value of velocity loop gain (Pt100) from 40.0 to 100.0
via panel.
Note:
To display and modify numeric parameters via servo drive panel, please refer to section 14.2.2 and set Pt00B =
t.1 (Display all parameters)

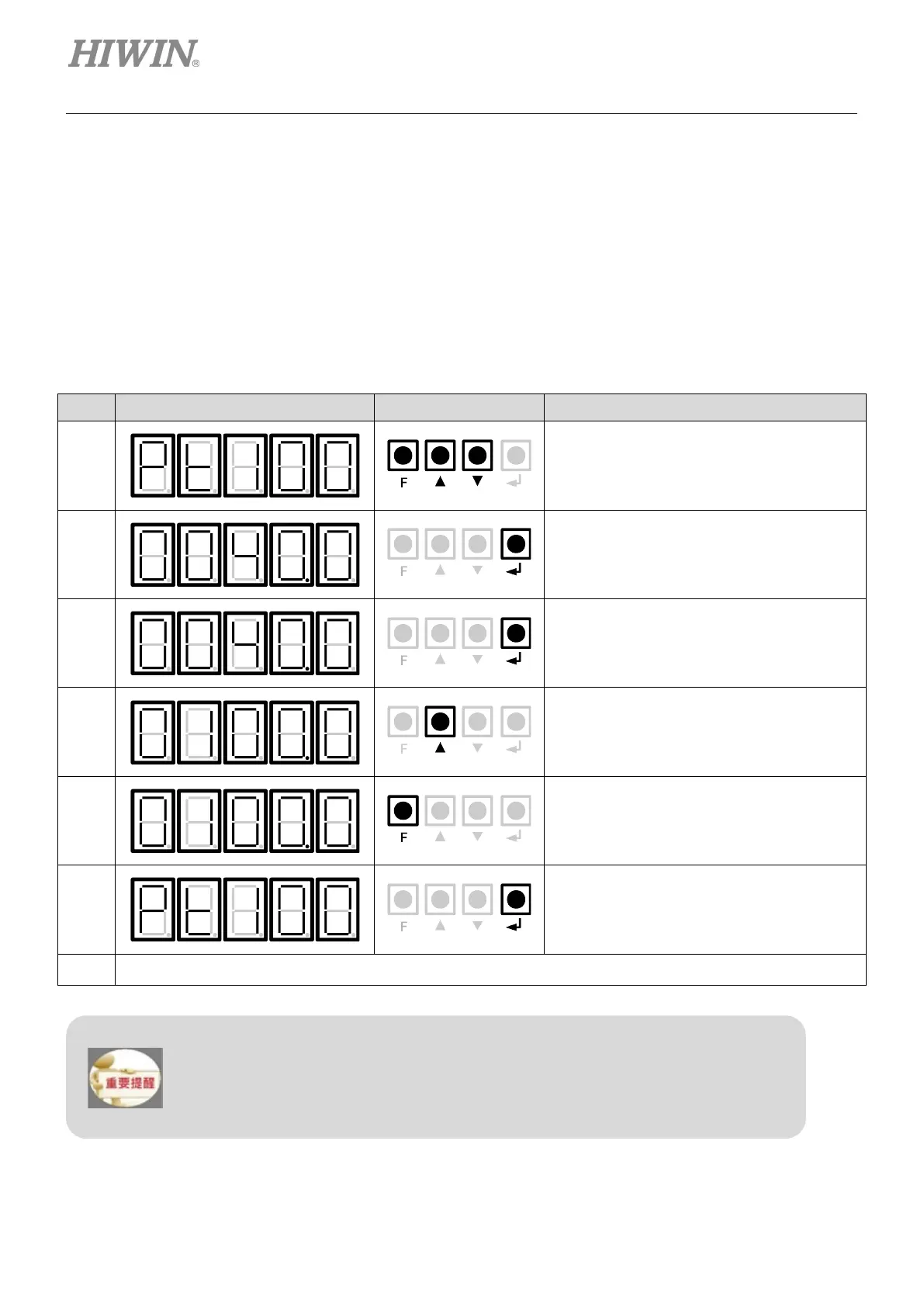

Table14.2.1.1
Step Display Key Operation
1
Press F
key to go to parameter setting
mode.
If the displayed parameter is not
Pt100, press UP or DOWN
key to display
Pt100.
2
Press DATA/SHIFT
key for one second to
display the current setting value of Pt100.
3
Press DATA/SHIFT key to move among
digits. If a digit is flashing, it means it is
editable.
4
Press UP key for six times to change the
setting value to 100.0. For setting values
with more than six digits, please refer to
figure 14.2.1.1.
5
Press F key and the value will be flashing.
After that, the setting value is changed from
40.0 to 100.0.
6
Press DATA/SHIFT
key for one second.
Then the display will return to Pt100.
7 To save parameter to servo drive Flash, execute Ft001 by referring to section 14.4.2.
Setting negative value
 For parameter that can be set to negative value, press DOWN key from 00000 to set
negative value.
 While setting negative value, press DOWN key to increase the value and UP key to
decrease the value.
