E1 Series Servo Drive User Manual Troubleshooting And Maintenance
13-2 HIWIN MIKROSYSTEM CORP.

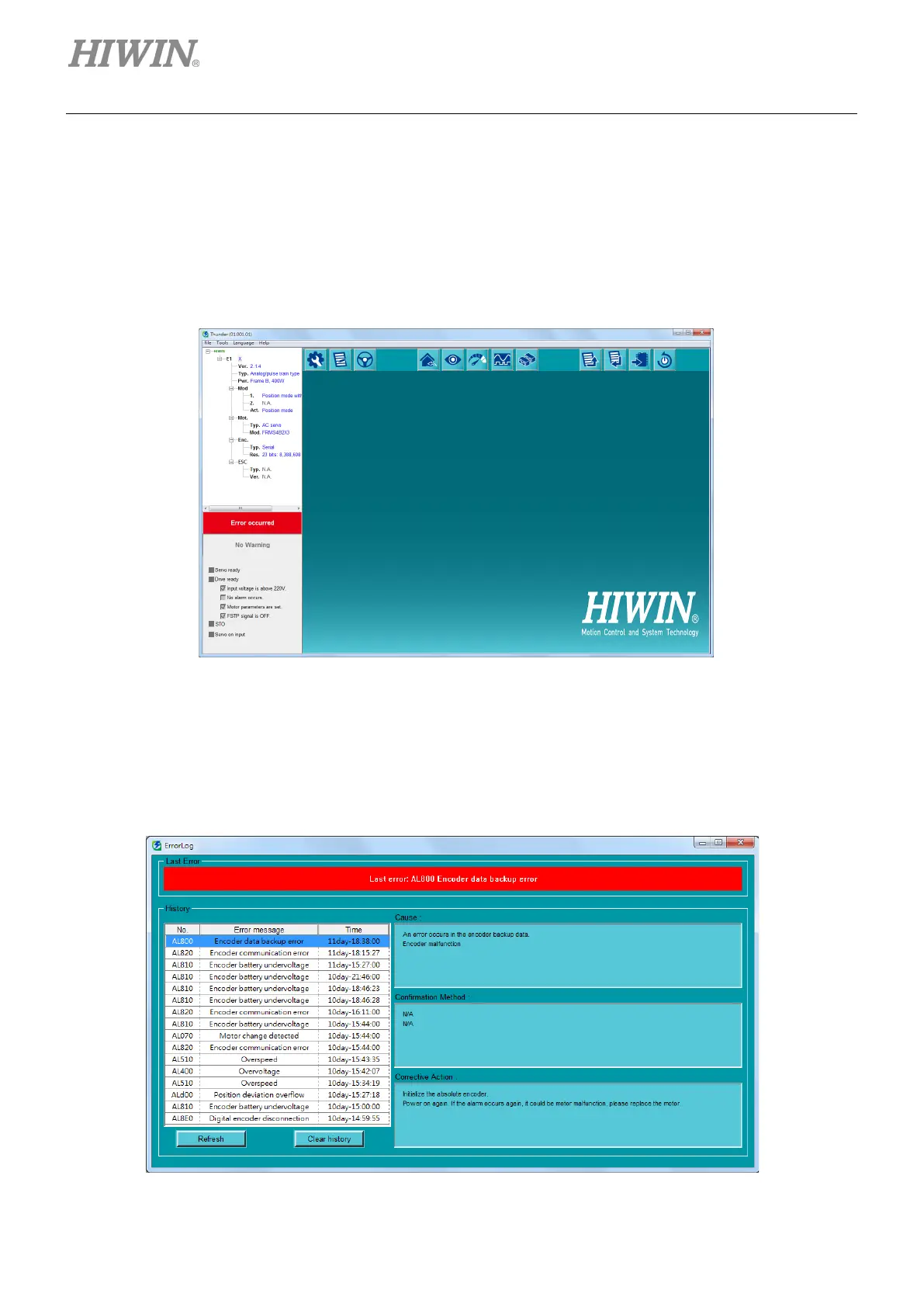

13.1 Alarm display
13.1.1 Alarm display
When an alarm or a warning occurs, users can view its alarm code or warning code from the servo drive
panel. Users can also check if an alarm or a warning occurs from the lower left area of Thunder.
Figure13.1.1.1 The main screen of Thunder when an alarm occurs
13.1.2 Error log
To view error log, users can click on Tools on the menu bar to open ErrorLog window.
Figure13.1.2.1 Error log in Thunder
