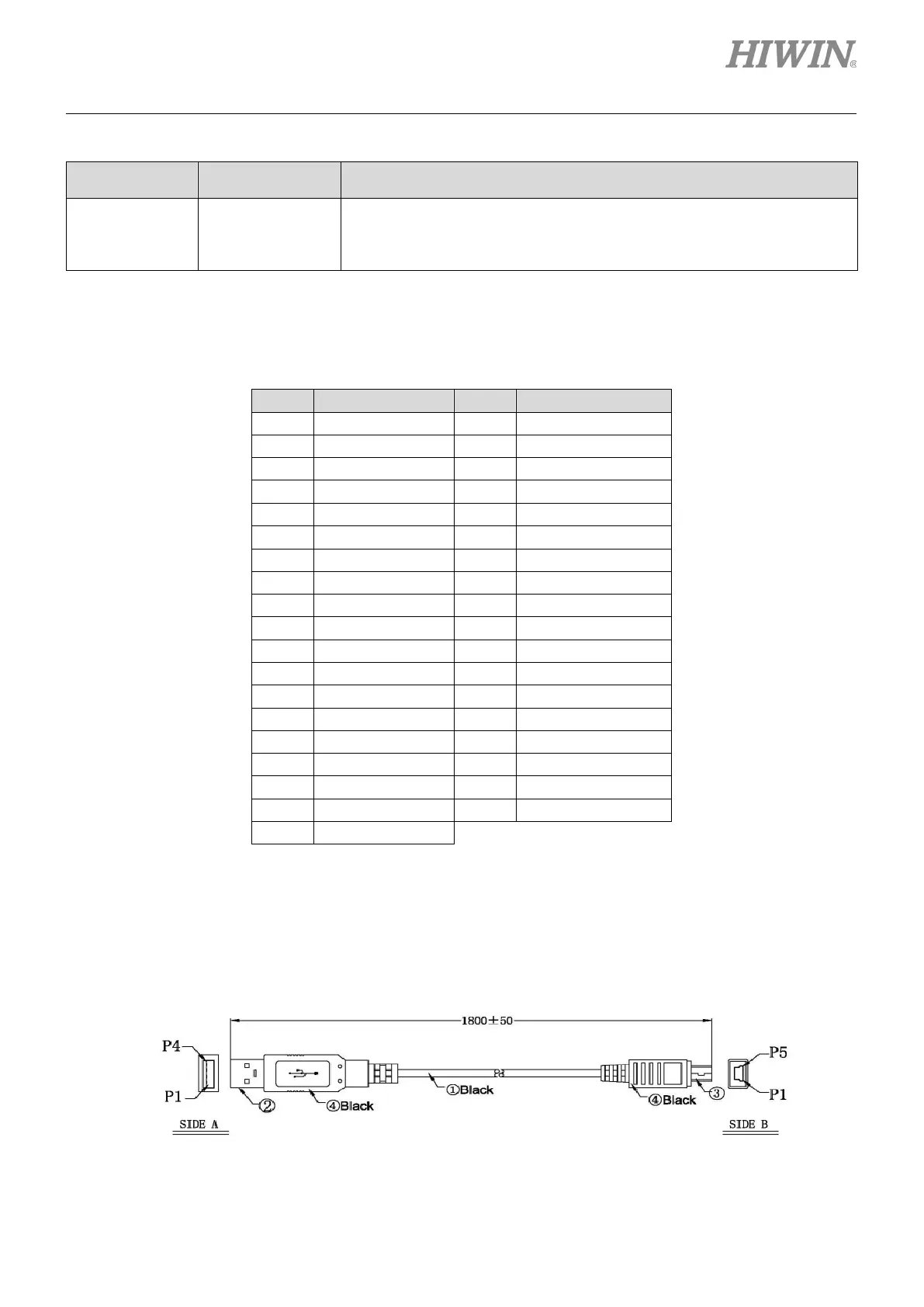

E1 Series Servo Drive User Manual Appendix
HIWIN MIKROSYSTEM CORP. 16-9
MD09UE01-1910
Table16.1.5.3
Name
HIWIN Part
Number
Description
Servo drive
signal cable
(Fieldbus 36
pins)
HE00EJ6DC300
Send or receive I/O signal, analog monitoritng output signal, analog
otuput signal, etc. via CN6 on Fieldbus servo drive. The cable (3 m) is
with open ends.
Note:
For other cable lengths, please contact local distributor.
Table16.1.5.4 Wire color table (Fieldbus servo drive)
Pin
Wire Color
Pin
Wire Color
1
Brown
19
Green
2
Brown/White
20
Green/Black
3
Red
21
Purple
4
Red/Black
22
Purple/White
5
Red/Blue
23
Light/Green
6
Red/White
24
Gray
7
Orange
25
Gray/Black
8
Orange/Black
26
Gray/Red
9
Pink
27
Gray/Blue
10
Pink/Black
28
Gray/Yellow
11
Pink/Red
29
Gray/Green
12 Pink/Blue 30 Light Green/Black
13
Pink/Yellow
31
Light Green/Yellow
14
Pink/White
32
Light Green/Green
15
Yellow
33
Light Green/Red
16
Yellow/Black
34
Green/Blue
17
Yellow/Red
35
Green/White
18 Yellow/Blue 36 Light Green/Blue
Shield
Case
16.1.6 Communication cable
Figure16.1.6.1 USB communication cable
PC end
Servo drive end CN3
