E1 Series Servo Drive User Manual Panel Operation
14-2 HIWIN MIKROSYSTEM CORP.
MD09UE01-1910

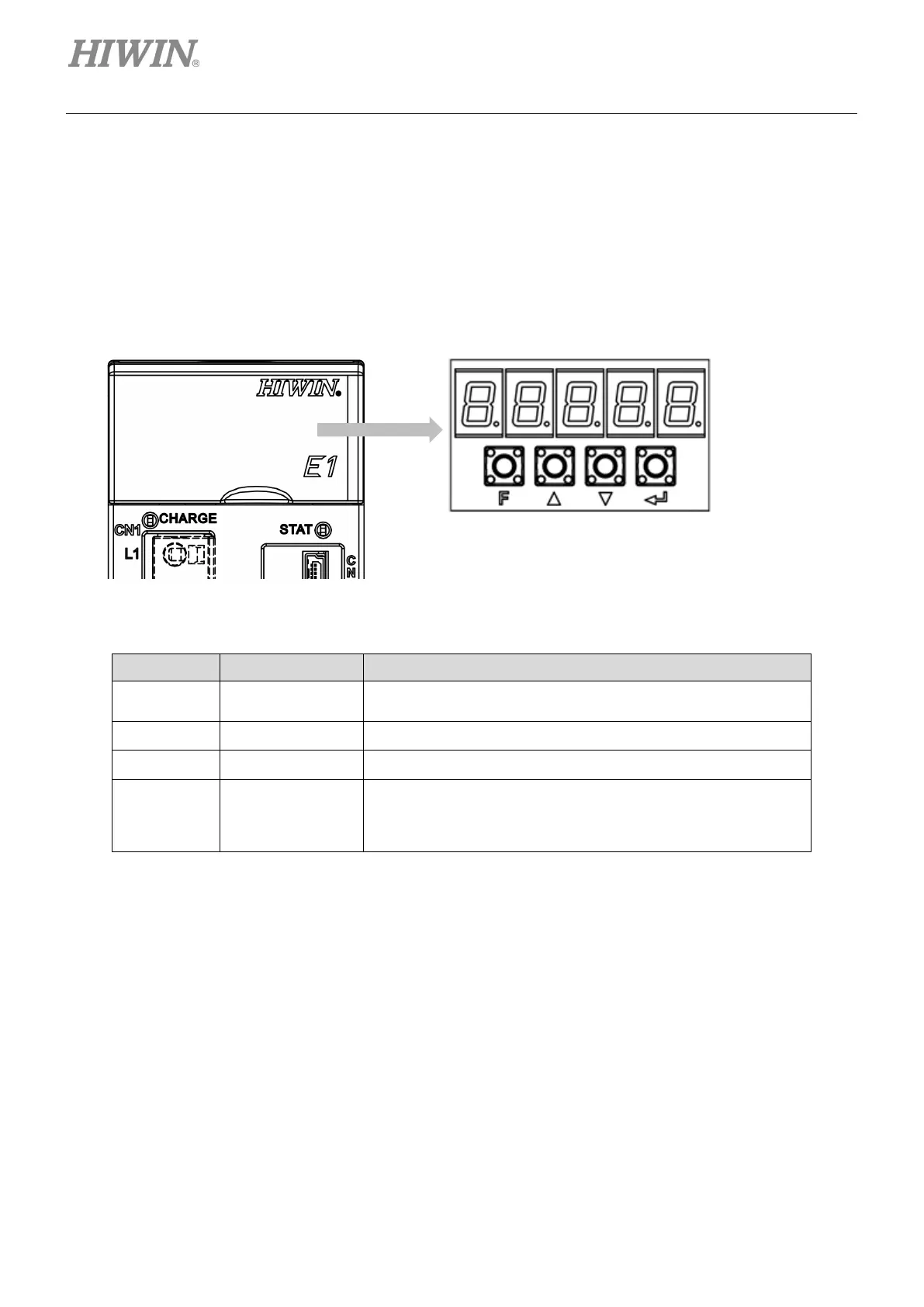

14.1 Panel description
14.1.1 Key names and functions
Users are allowed to perform auxiliary functions, set parameters as well as monitor the status and values*
of the servo drive by panel. The names and functions of the keys on the servo drive panel are described
as below.
Figure14.1.1.1
Table14.1.1.1
Key Number Key Name Function
○
1
F key
(1) Switch function.
(2) Confirm setting value.
○
2
UP key Increase setting value.
○
3
DOWN key Decrease setting value.
○
4
DATA/SHIFT key
(1) Display setting value. Press DATA/SHIFT key for one
second to display setting value.
(2) While a digit is flashing, use this key to move to the next
digit on its left.
Note:
*For Fieldbus servo drive, users can only monitor the servo drive status from the panel since there is no key on
Fieldbus model.
○
1
○
2
○
3
○
4
