16.1.3 Encoder extension cable for linear motor
When using linear motor with digital linear scale, the cable below is required.

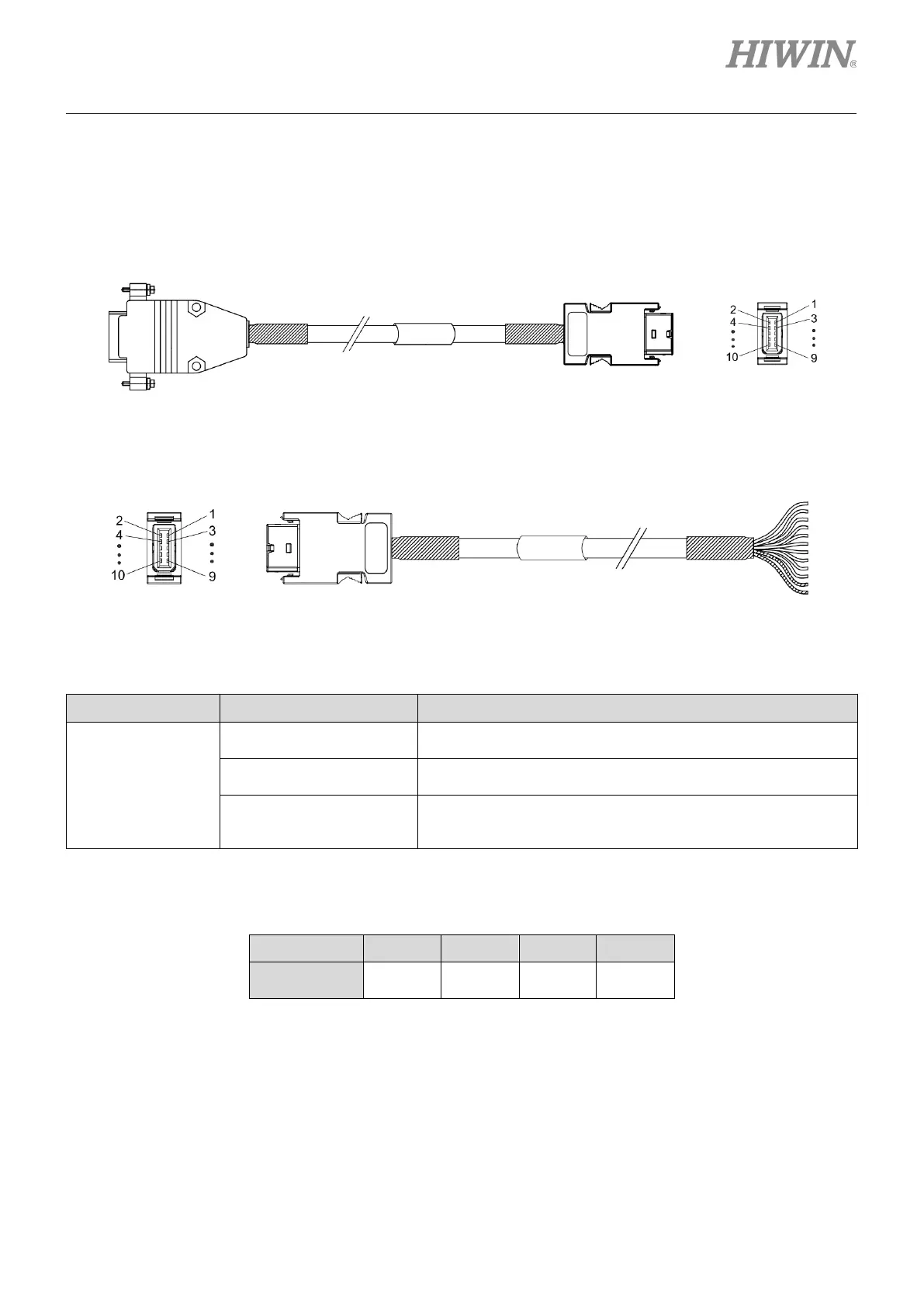

Figure16.1.3.1 Encoder extension cable (HE00817EK□00, HE00VJQ82100)
Figure16.1.3.2 HE00EJ6DB□00 Encoder extension cable (open ends)
Table16.1.3.1
Name HIWIN Part Number Description
Encoder extension
cable
HE00817EK□00
Extension cable used to connect to CN7 on the servo drive
For Renishaw linear digital encoder, highly bendable
HE00VJQ82100
Extension cable used to connect to CN7 on the servo drive
For Renishaw linear digital encoder, highly bendable, 0.4 m
HE00EJ6DB□00
Extension cable used to connect to CN7 on the servo drive
The encoder extension cable is with open ends for
customized connector by users.
□ stands for cable length, please refer to below.
Table16.1.3.2
□ 3 5 7 A
Cable Length
(m)
3 5 7 10
Renishaw linear digital
encoder
Servo drive end CN7
Servo drive end CN7
Encoder end
