E1 Series Servo Drive User Manual Panel Operation
14-22 HIWIN MIKROSYSTEM CORP.
MD09UE01-1910
14.4.9 Setting stiffness level for tuneless function (Ft200)

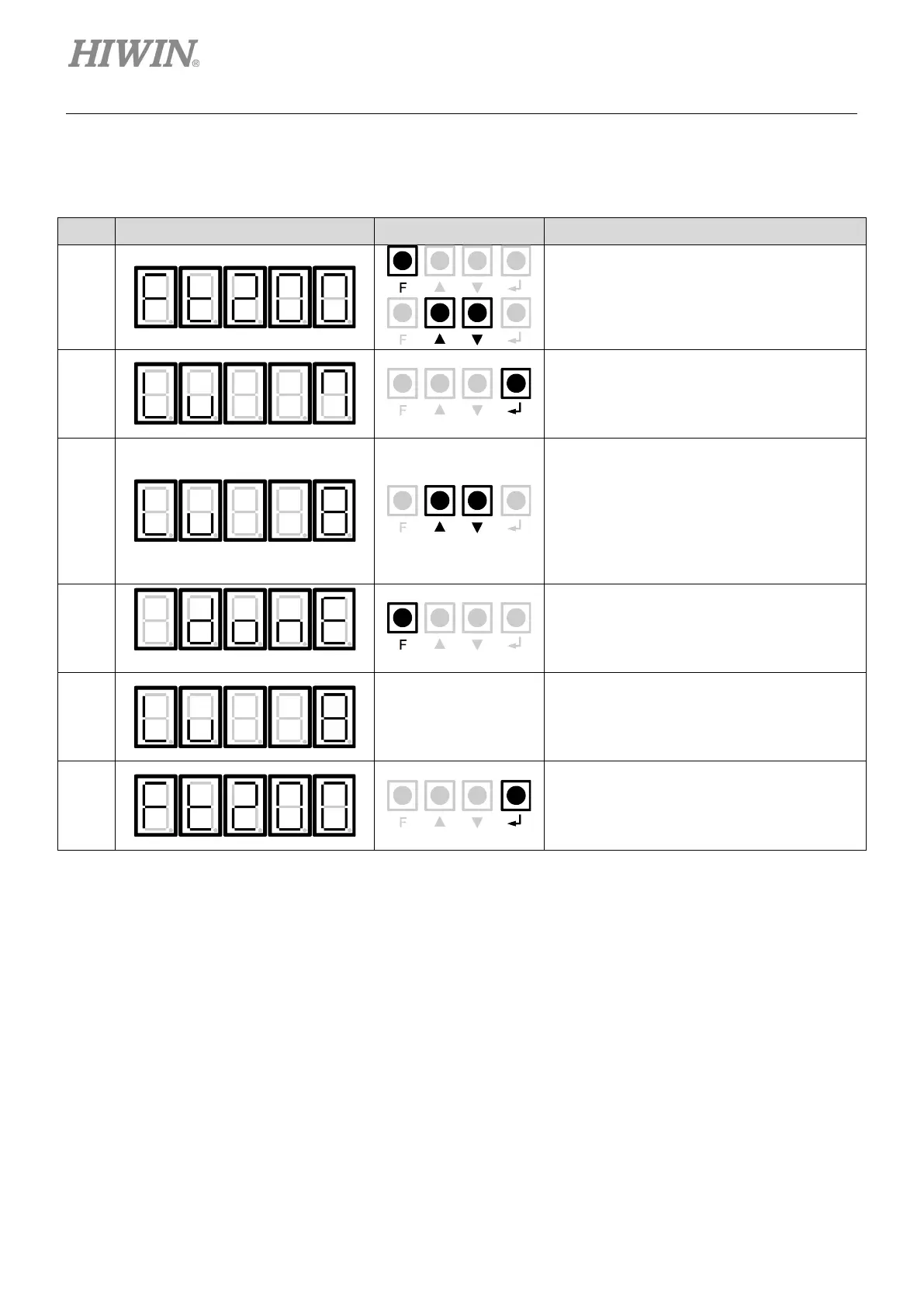

Table14.4.9.1
Step Display Key Operation
1
Press F key to go to auxiliary function mode
(Ft). Press UP or DOWN
key to display
Ft200.
2
Press DATA/SHIFT key for one second to
set stiffness level for tuneless function.
3
Press UP or DOWN key to select stiffness
level from 1~F. The higher the stiffness level
is, the higher the gain and response are.
(Default: 7)
Note:
If the stiffness level is too high, vibration could
occur. At this time, please decrease stiffness
level.
4
(Blinking)
Press F key to set stiffness level. After the
setting
completes, the display on the left
shows for one second.
5
－
After the setting completes, the
display on
the panel automatically returns to the display
on the left.
6
Press DATA/SHIFT
key for one second to
display Ft200.
