5.3.5 Wiring for regenerative resistor
This section will describe how to connect to regenerative resistor.
The wiring of external regenerative resistor must be correctly performed. Do not connect B1/⊕ and B3. If B1/
⊕ and B3 are connected, it may cause damage to the regenerative resistor as well as the servo drive and it
may cause fire.
Connecting to external regenerative resistor
Connect to external regenerative resistor via B1/⊕ and B3 terminals of the servo drive.

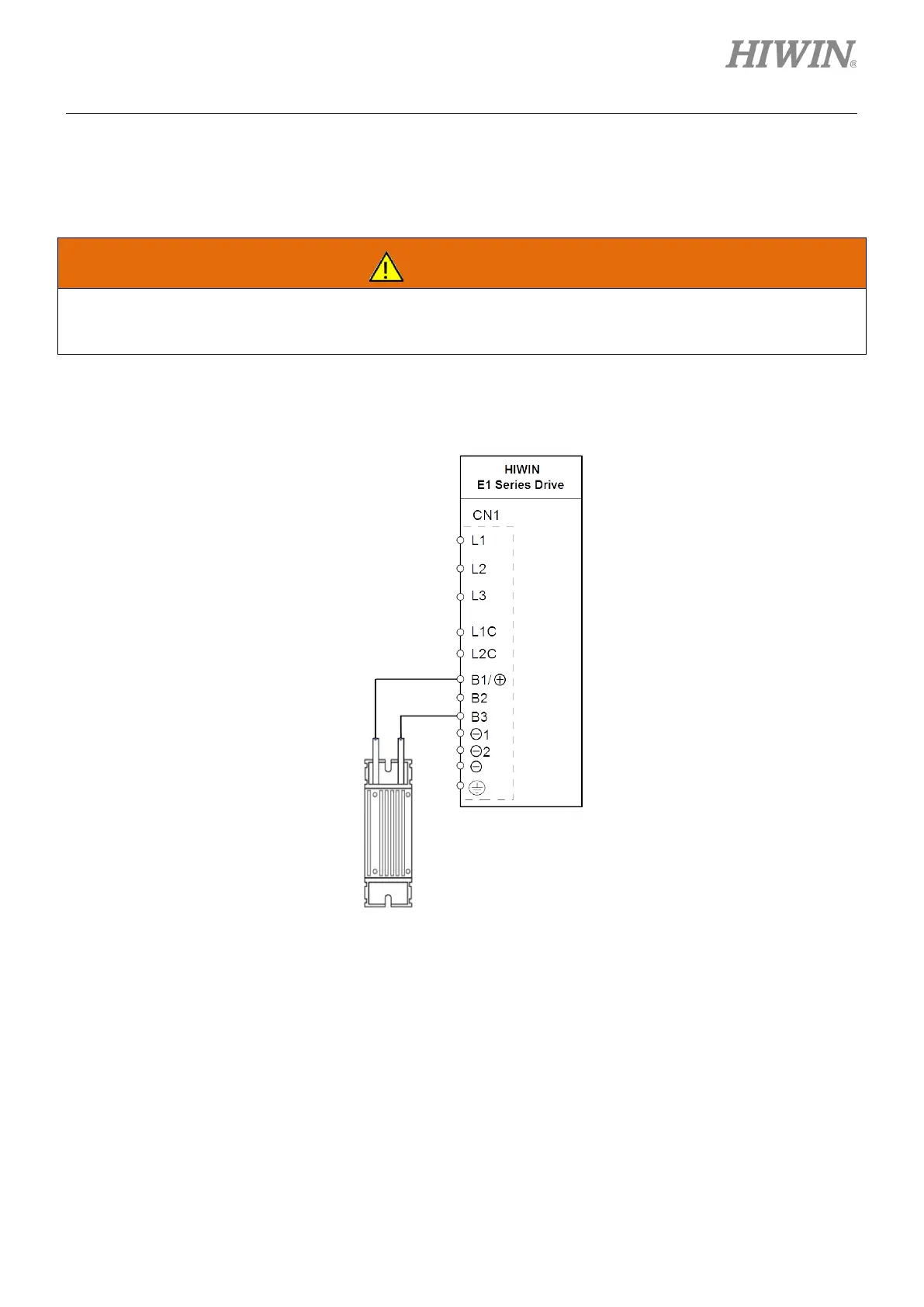

Figure5.3.5.1
