E1 Series Servo Drive User Manual Appendix
16-2 HIWIN MIKROSYSTEM CORP.
MD09UE01-1910
16.1 Cables
16.1.1 Servo motor power cable

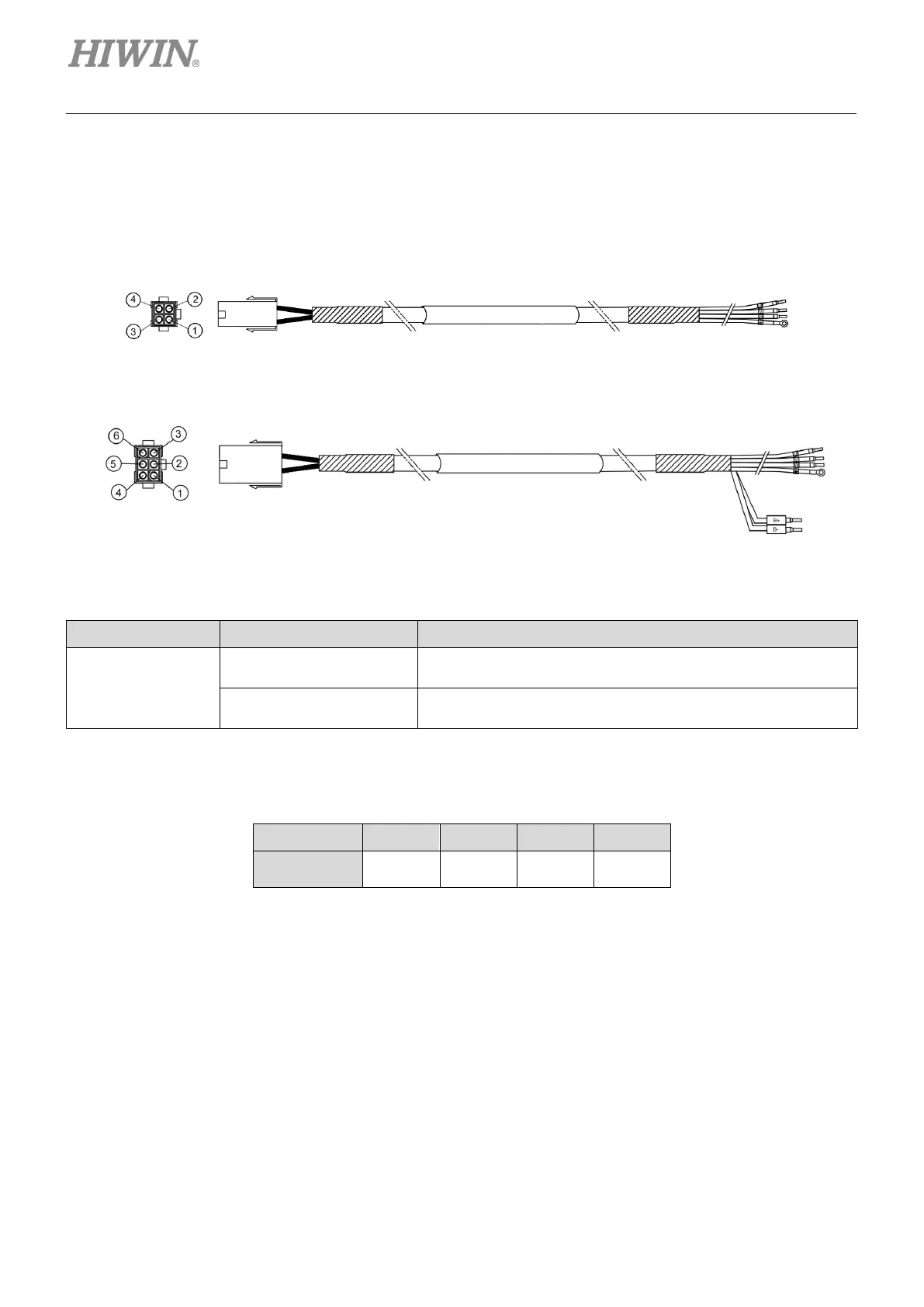

Figure16.1.1.1 Motor power cable (HVPS04AB□□MB, without brake cable)
Figure16.1.1.2 Motor power cable (HVPS06AB□□MB, with brake cable)
Table16.1.1.1 Motor power cable for servo motor
Name HIWIN Part Number Description
Motor power cable
HVPS04AB□□MB
For 50 W ~ 750 W servo motor, without brake cable, highly
bendable
HVPS06AB□□MB
For 50 W ~ 750 W servo motor, with brake cable, highly
bendable
□□ stands for cable length, please refer to below.
Table16.1.1.2
□□
03 05 07 10
Cable Length
(m)
3 5 7 10
Motor end
Servo drive end CN2
Motor end
Servo drive end CN2
