Hiwin E1 Series User Manual

E1 Series Servo Drive User Manual Specification
4-2 HIWIN MIKROSYSTEM CORP.
MD09UE01-1910
4.1 Dimensions of E1 series servo drive
The dimensions and locations of installation holes of E1 series servo drives (Standard and Fieldbus) are
provided in sections 4.1.1 and 4.1.2. The dimensions are shown in millimeters (mm). The diameter of
installation hole is 5 mm.
4.1.1 E1 series servo drive (Standard)
The model number of standard servo drive is ED1S.
 400 W servo drive (Standard)

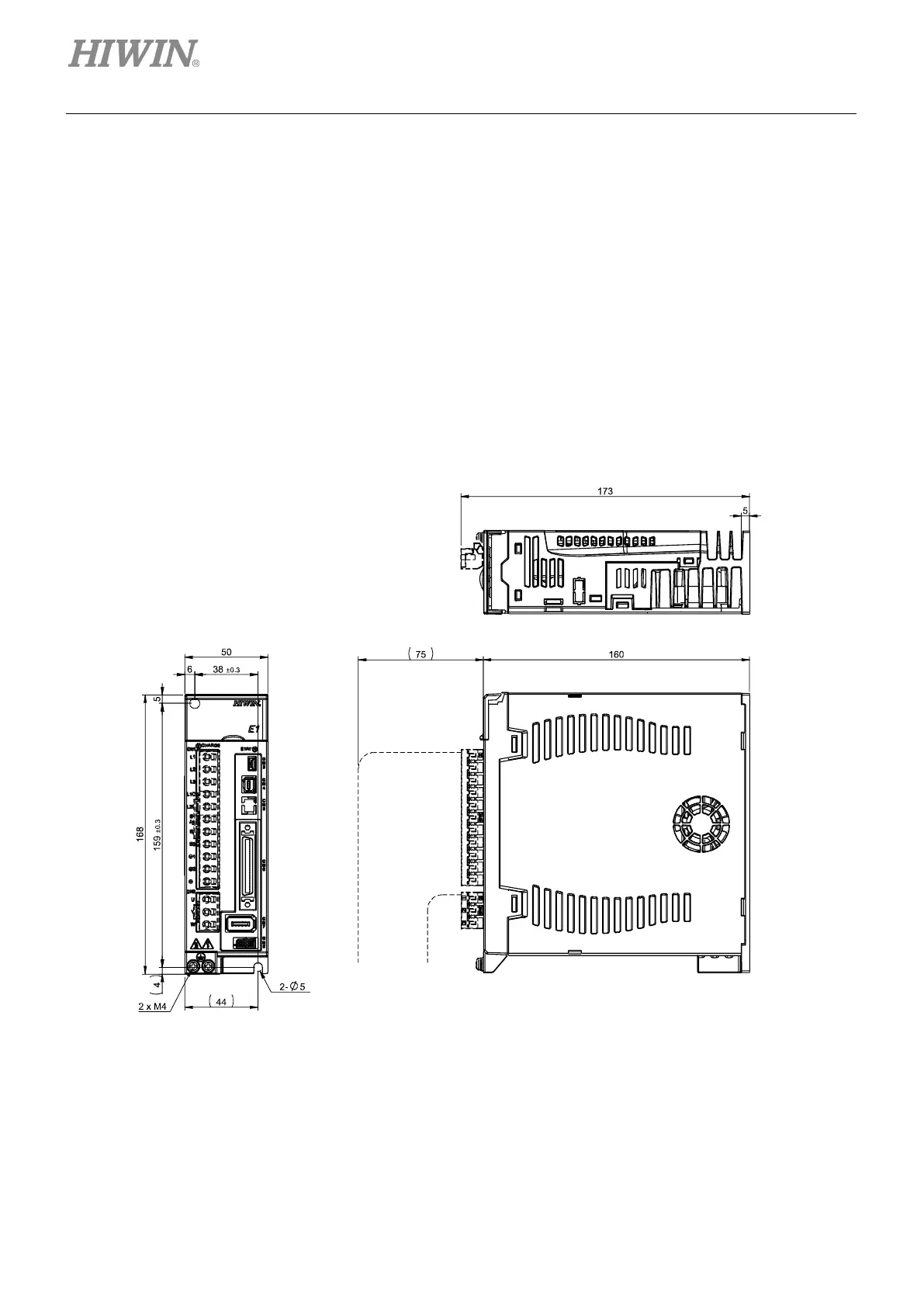

Figure4.1.1.1 The dimensions of 400 W servo drive (Standard)

Hiwin E1 Series Specifications

General

Brand	Hiwin
Model	E1 Series
Category	Servo Drives
Language	English
