Hiwin E1 Series User Manual

E1 Series Servo Drive User Manual Panel Operation
14-16 HIWIN MIKROSYSTEM CORP.
MD09UE01-1910
14.4.3 JOG (Ft002)
For related parameters of JOG, please refer to section 8.7.1.

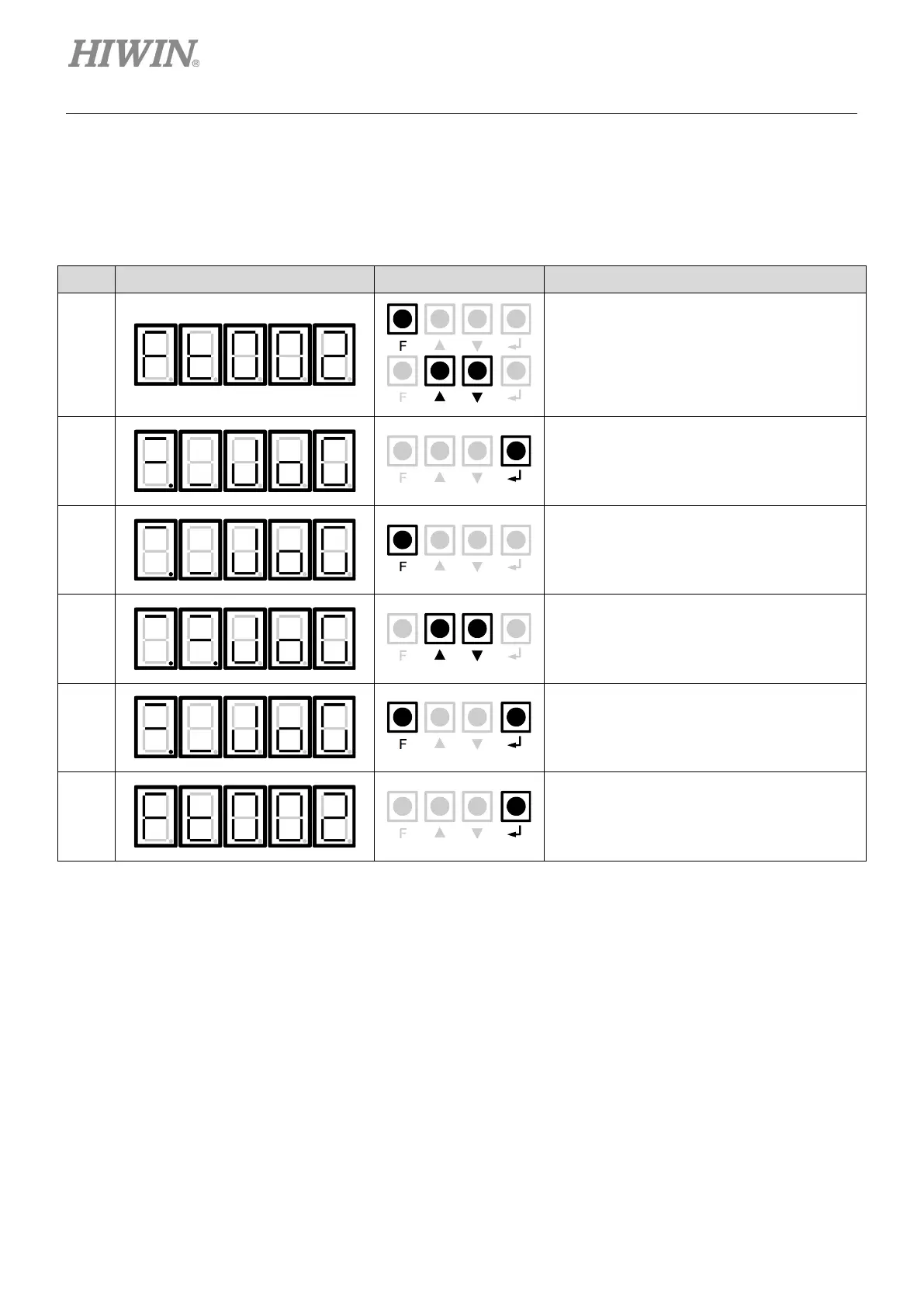

Table14.4.3.1
Step Display Key Operation
1
Press F key to go to auxiliary function mode
(Ft). Press UP or DOWN
key to display
Ft002.
2
Press DATA/SHIFT
key for one second to
show the display on the left.
3
Press F key to go to servo ON state. The
display on the left shows.
4
Press UP key (forward) or DOWN key
(reverse). The servo motor operates at the
setting set by Pt304 (rotary motor) or Pt383
(linear motor).
5
Press F key to go to servo OFF state.
Note:
Users can also press DATA/SHIFT key for
one second to servo off.
6
Press DATA/SHIFT key for one second to
display Ft002.
