14.3 Monitoring function (Ut□□□)
Users are allowed to monitor physical quantity and I/O signal via panel. The number of monitoring item
starts with a beginning of “Ut”. The example below is monitoring motor velocity (Ut000).

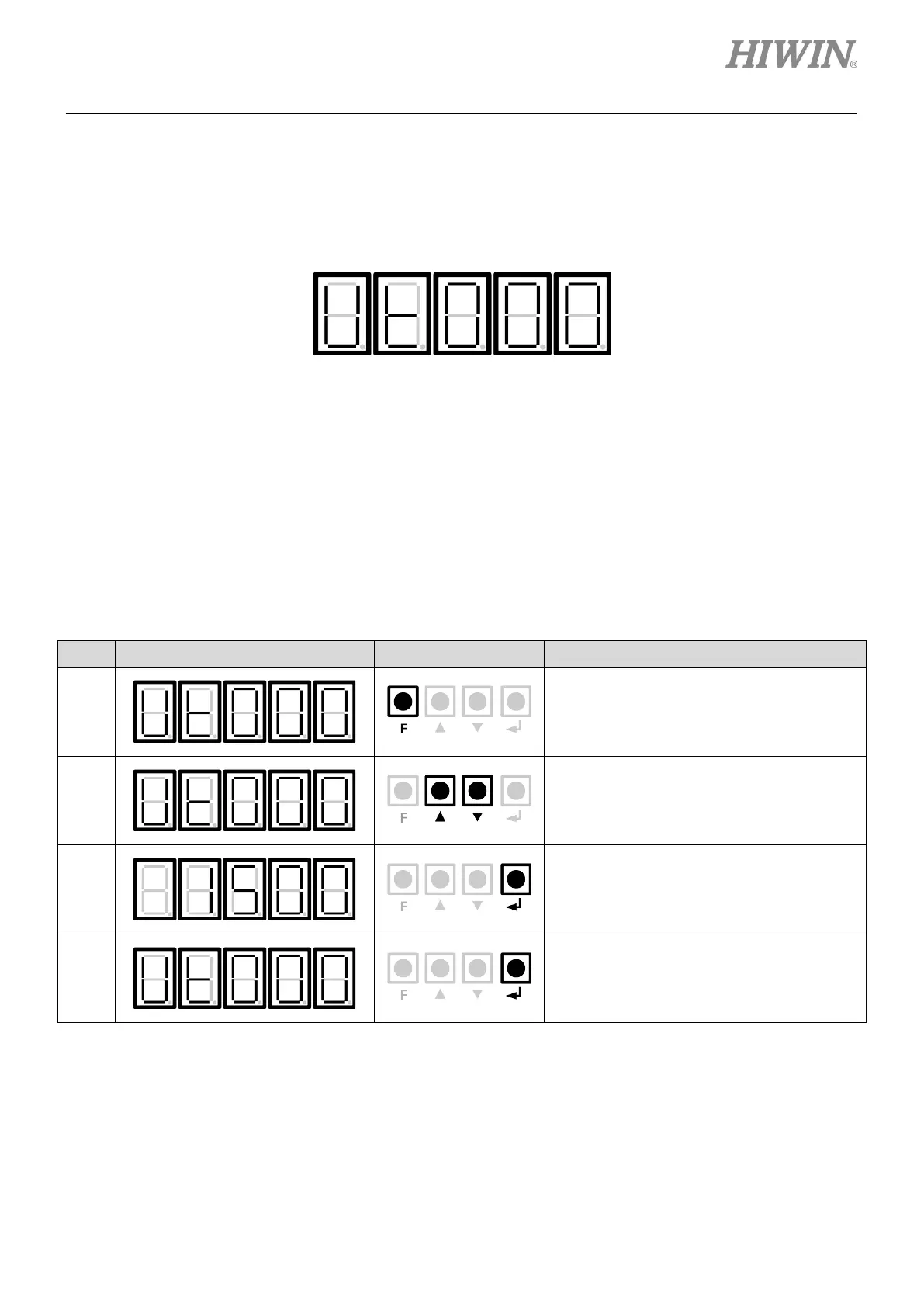

Figure14.3.1
For basic operation of monitoring function and the numbers of monitoring items, please refer to the
following.
14.3.1 Basic operation of monitoring function
Table 14.3.1.1 describes how to monitor motor velocity (Ut000).
Table14.3.1.1
Step Display Key Operation
1
Press F key to go to
mode (Ut).
2
Press UP or DOWN key to select the Ut
number to be monitored.
3
Press DATA/SHIFT key f
or one second to
display the contents of Ut number. If the
displayed value is with more than six digits,
please refer to figure 14.2.1.1.
4
Press DATA/SHIFT key for one second to
return to the display of step 1.
