Suzuki GSF650 Service Manual

1A-75 Engine General Information and Diagnosis:
DTC “C24” (P0351), “C25” (P0352), “C26” (P0353) or “C27” (P0354): Ignition System Malfunction
B817H21104017
NOTE
Refer to “No Spark or Poor Spark in Section 1H (Page 1H-2)” for details.
DTC “C28” (P1655): Secondary Throttle Valve Actuator (STVA) Malfunction
B817H21104018
Detected Condition and Possible Cause

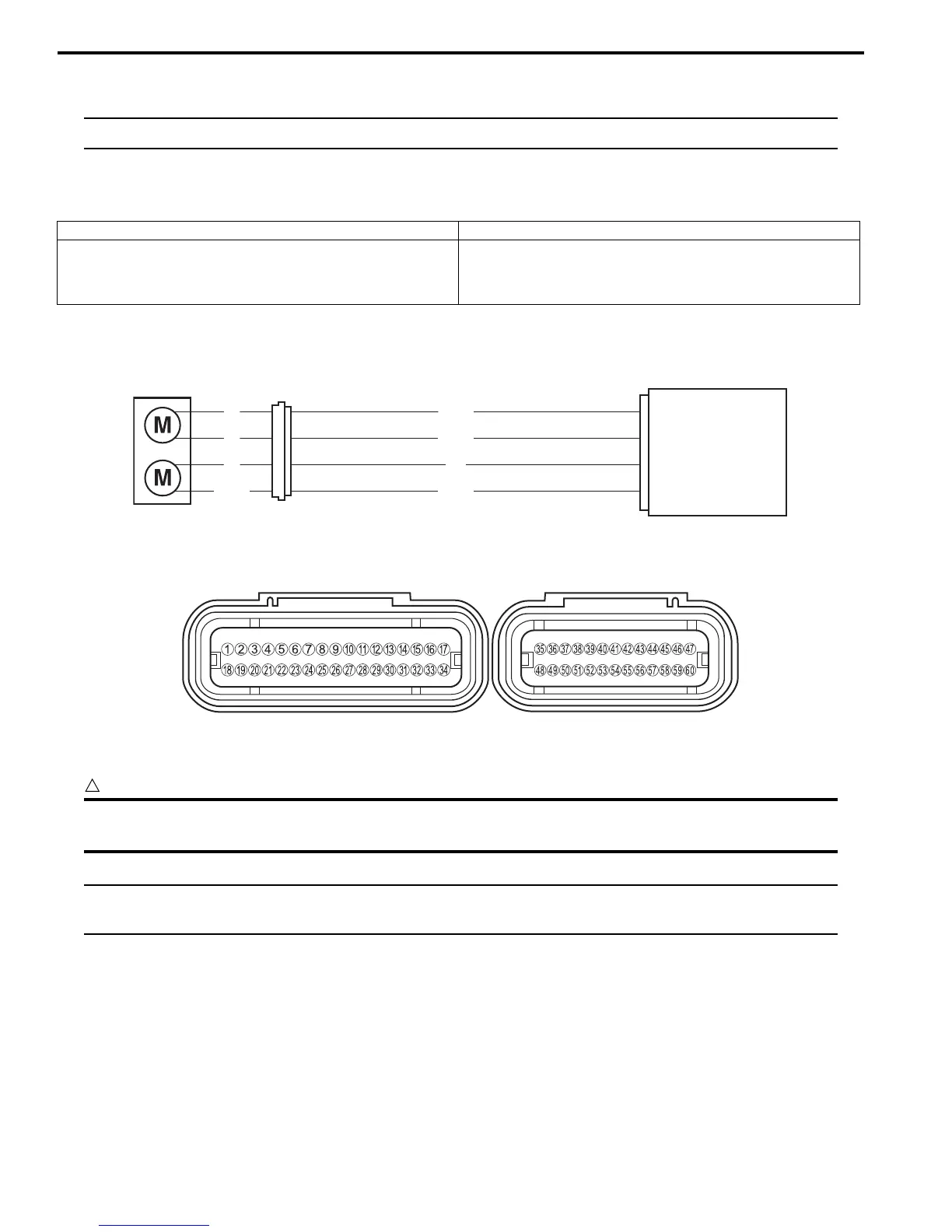

Wiring Diagram
ECM coupler (Harness side)
Troubleshooting
CAUTION
!
When using the multi-circuit tester, do not strongly touch the terminal of the ECM coupler with a
needle pointed tester probe to prevent the terminal damage or terminal bend.
NOTE
After repairing the trouble, clear the DTC using SDS tool. Refer to “Use of SDS Diagnosis Reset
Procedures (Page 1A-15)”.
Detected Condition Possible Cause
The operation voltage does not reach the STVA.
ECM does not receive communication signal from the
STVA.
• STVA malfunction.
• STVA circuit open or short.
• STVA motor malfunction.
ECM
STVA. 2B
STVA. 1A
STVA. 1B
STVA
STVA. 2A
B
P
G
W/Bl
B/Lg
P/W
G
W/B
19
2
18
1
I718H1110077-04
I718H1110240-01

Suzuki GSF650 Specifications

General

Displacement	656 cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm
Rear Brakes	Disc brake
Fuel Tank Capacity	19.0 L
Wheelbase	1, 470 mm
Seat Height	790 mm
Ground Clearance	135 mm
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
