Suzuki GSF650 Service Manual

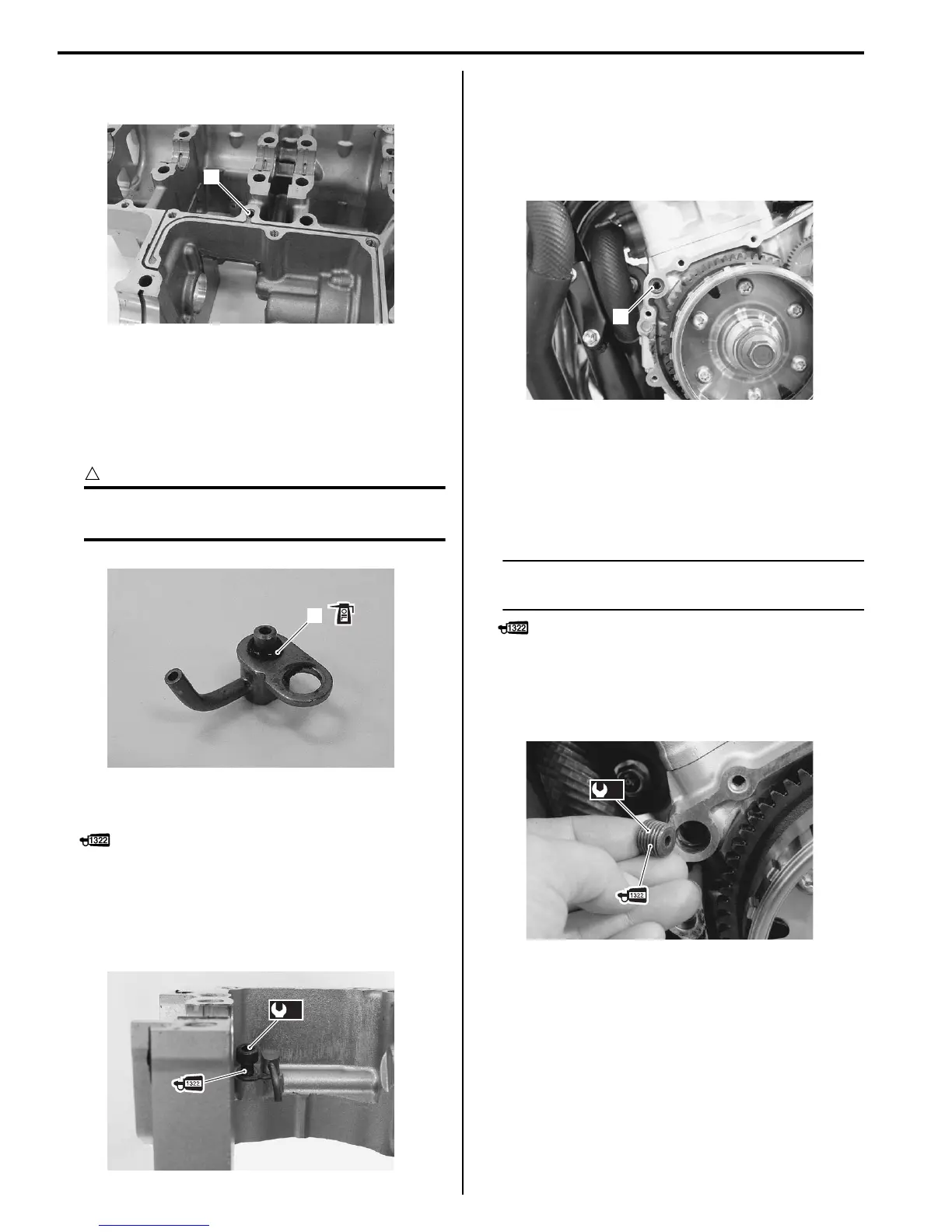

1E-9 Engine Lubrication System:
5) Remove the oil jet (2) (for transmission) from the
lower crankcase.
Installation
Installation is in the reverse order of removal.
Pay attention to the following points:
• Fit new O-ring (1) to each piston cooling oil jet as
shown and apply engine oil to them.
CAUTION
!
Use new O-rings to prevent oil pressure
leakage.
• Apply a small quantity of THREAD LOCK to the bolts
and tighten them to the specified torque.
: Thread lock cement 99000–32110
(THREAD LOCK CEMENT SUPER 1322 or
equivalent)
Tightening torque
Piston cooling oil jet bolt (a): 10 N·m (1.0 kgf-m,
7.0 lbf-ft)
Oil Gallery Jet Removal and Installation
B817H21506008
Removal
1) Remove the generator cover. Refer to “Generator
Removal and Installation in Section 1J (Page 1J-4)”.
2) Remove the oil gallery jet (1).
Installation
Installation is in the reverse order of removal. Pay
attention to the following point:
• Apply THREAD LOCK to the oil gallery jet and tighten
it to the specified torque.
NOTE
After tighten the jet, make sure that the jet
end is flush with the cover mating surface.
: Thread lock cement 99000–32110
(THREAD LOCK CEMENT SUPER 1322 or
equivalent)
Tightening torque
Oil gallery jet (a): 22 N·m (2.2 kgf-m, 16.0 lbf-ft)
2
I718H1150047-01
1
I718H1150048-01
(a)
I718H1150049-02
1
I717H1150017-01
(a)
I718H1150051-02

Suzuki GSF650 Specifications

General

Displacement	656 cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm
Rear Brakes	Disc brake
Fuel Tank Capacity	19.0 L
Wheelbase	1, 470 mm
Seat Height	790 mm
Ground Clearance	135 mm
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
