Suzuki GSF650 Service Manual

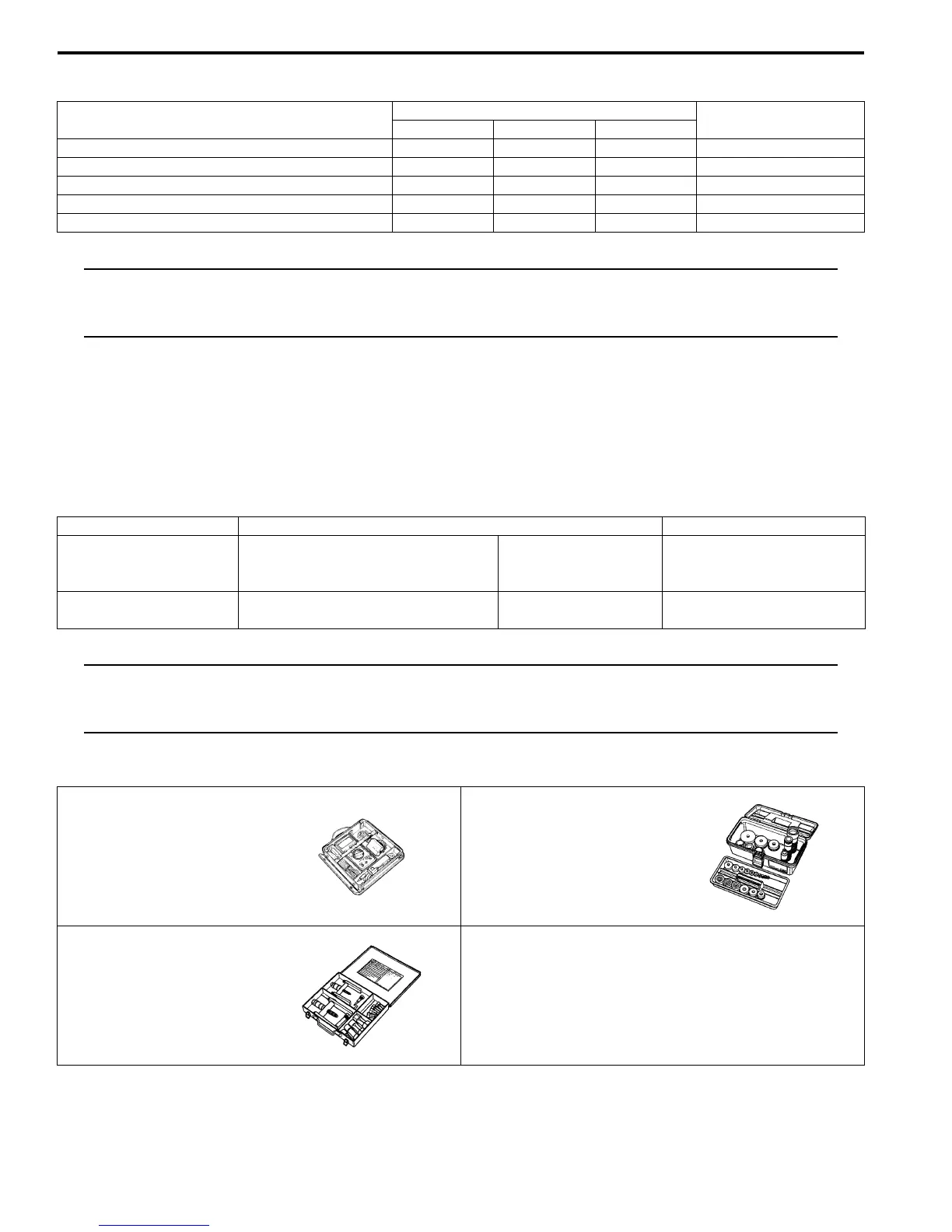

1F-18 Engine Cooling System:
Tightening Torque Specifications
B817H21607002
NOTE
The specified tightening torque is also described in the following.
“Water pump Components (Page 1F-11)”
“Water Pump Construction (Page 1F-12)”
Reference:
For the tightening torque of fastener not specified in this section, refer to “Tightening Torque List in Section 0C
(Page 0C-7)”.
Special Tools and Equipment
Recommended Service Material
B817H21608001
NOTE
Required service material is also described in the following.
“Water pump Components (Page 1F-11)”
“Water Pump Construction (Page 1F-12)”
Special Tool
B817H21608002
Fastening part
Tightening torque
Note
N⋅mkgf-mlbf-ft
Thermostat connector bolt 10 1.0 7.0 )(Page 1F-10)
Water pump mounting bolt 10 1.0 7.0 )(Page 1F-13)
Impeller securing bolt 8 0.8 6.0 )(Page 1F-15)
Water pump case screw 6 0.6 4.5 )(Page 1F-16)
Water pump air vent bolt 13 1.3 9.5 )(Page 1F-16)
Material SUZUKI recommended product or Specification Note
Grease SUZUKI SUPER GREASE A or
equivalent
P/No.: 99000–25010 )(Page 1F-12) /
)(Page 1F-14) /
)(Page 1F-15)
Thread lock cement THREAD LOCK CEMENT SUPER
1322 or equivalent
P/No.: 99000–32110 )(Page 1F-8)
09900–25008 09913–70210
Multi-circuit tester set Bearing installer set
)(Page 1F-9) )(Page 1F-14)
09921–20240
Bearing remover set
)(Page 1F-14)

Suzuki GSF650 Specifications

General

Displacement	656 cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm
Rear Brakes	Disc brake
Fuel Tank Capacity	19.0 L
Wheelbase	1, 470 mm
Seat Height	790 mm
Ground Clearance	135 mm
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
