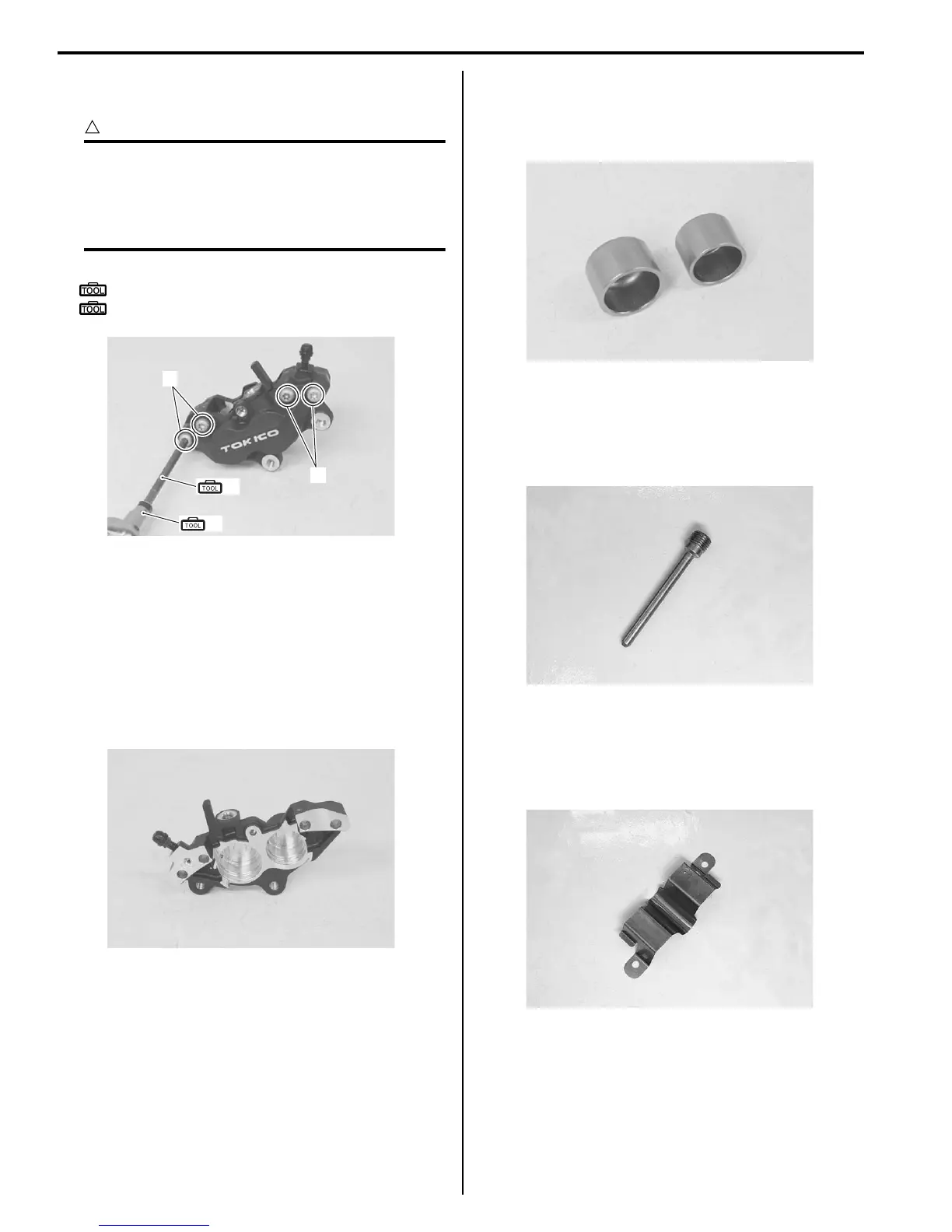

4B-5 Front Brakes:
• Temporarily tighten the brake caliper housing bolts
(3).
CAUTION
!
After installing the brake caliper to the front
fork, tighten the brake caliper housing bolts
to the specified torque. Refer to “Front Brake
Caliper Removal and Installation (Page 4B-
2)”.
Special tool
(A): 09930–11920 (Torx bit (JT 40H))
(B): 09930–11940 (Bit holder)
Front Brake Caliper Parts Inspection
B817H24206006
Refer to “Front Brake Caliper Disassembly and
Assembly (Page 4B-3)”.
Brake Caliper Cylinder
Inspect the brake caliper cylinder wall for nicks,
scratches or other damage. If any damage is found,
replace the caliper with a new one.
Brake Caliper Piston
Inspect the brake caliper piston surface for any
scratches or other damage. If any damage is found,
replace the piston with a new one.
Brake Caliper Mounting Pin
Inspect the brake caliper mounting pin for wear and
other damage. If any damage is found, replace the
mounting pin with a new one.
Brake Pad Spring
Inspect the brake pad springs for damage and excessive
bend. If any defects are found, replace them with new
ones.
(B)
(A)
3
3
I717H1420008-01
I649G1420015-02
I649G1420016-02
I717H1420009-01
I717H1420010-01
