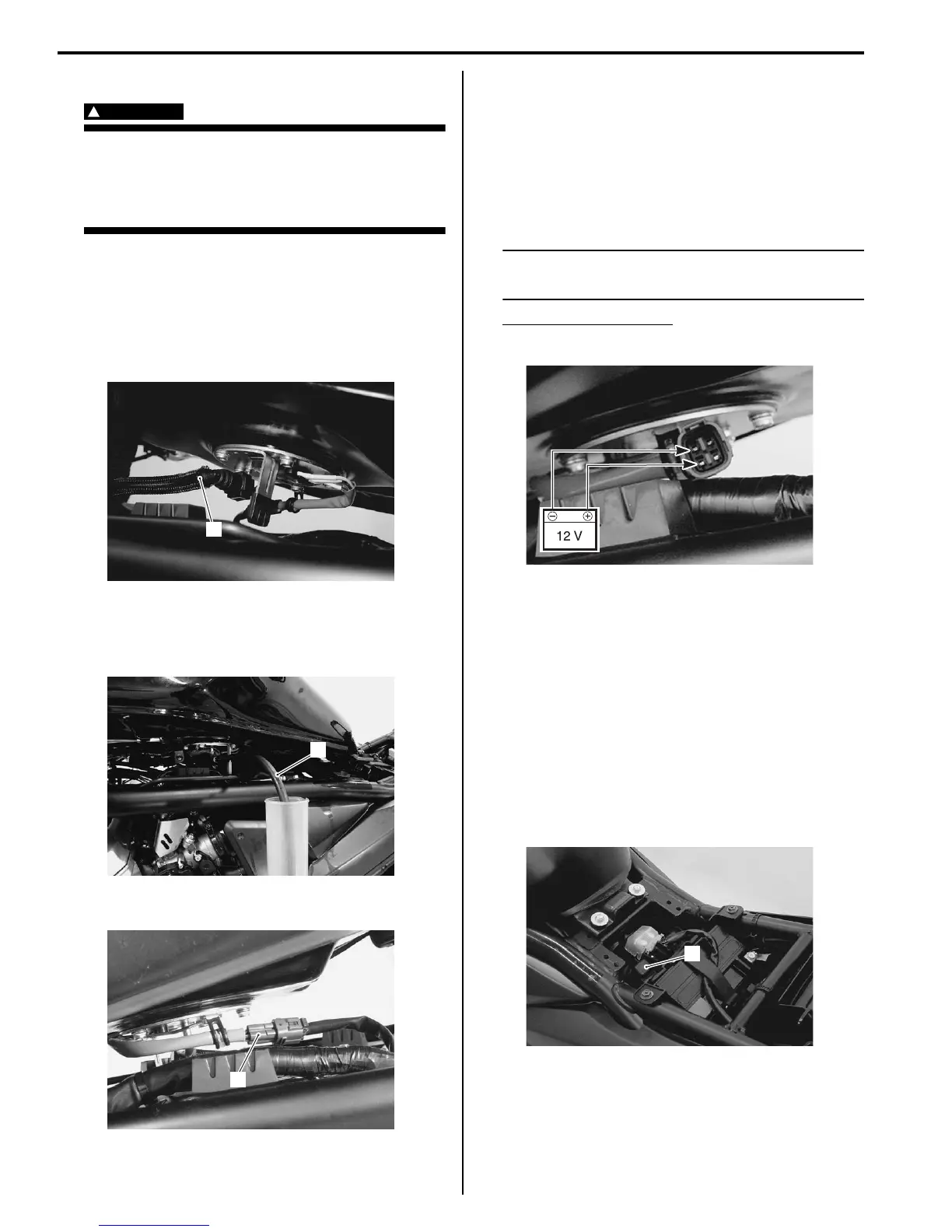

1G-6 Fuel System:
Fuel Discharge Amount Inspection
B817H21706003
WARNING
!
• Keep away from fire or spark.
• Spilled gasoline should be wiped off
immediately.
• Work in a well-ventilated area.
Inspect the fuel discharge amount in the following
procedures:
1) Lift and support the fuel tank. Refer to “Fuel Tank
Removal and Installation (Page 1G-9)”.
2) Place a rag under the fuel feed hose (1) from the fuel
pump.
3) Connect a proper fuel hose (2) to the fuel pump.
4) Place the measuring cylinder and insert the fuel
hose end into the measuring cylinder.
5) Disconnect the fuel pump lead wire coupler (3).
6) Connect a proper lead wire into the fuel pump lead
wire coupler (fuel pump side) and apply 12 V to the
fuel pump (between (+) Y/R wire and (–) B/W wire)
for 10 seconds and measure the amount of fuel
discharged.
If the discharge amount is out of the specification,
the probable cause may be failure of the fuel pump
or clogged fuel filter.
NOTE
The battery must be in fully charged
condition.
Fuel discharge amount
166 ml (5.6/5.8 US/lmp oz) and more/10 seconds
7) After finishing the fuel discharge inspection, reinstall
the fuel tank. Refer to “Fuel Tank Removal and
Installation (Page 1G-9)”.
Fuel Pump Relay Inspection
B817H21706004
Refer to “Electrical Components Location in Section 0A
(Page 0A-10)”.
Inspect the fuel pump relay in the following procedures:
1) Remove the seat. Refer to “Exterior Parts Removal
and Installation (GSF650/S/A/SAK7) in Section 9D
(Page 9D-6)”.
2) Remove the fuel pump relay (1).
1
I717H1170001-01
2
I718H1170014-01
3
I717H1170002-01
I717H1170003-01
1
I717H1170004-01
