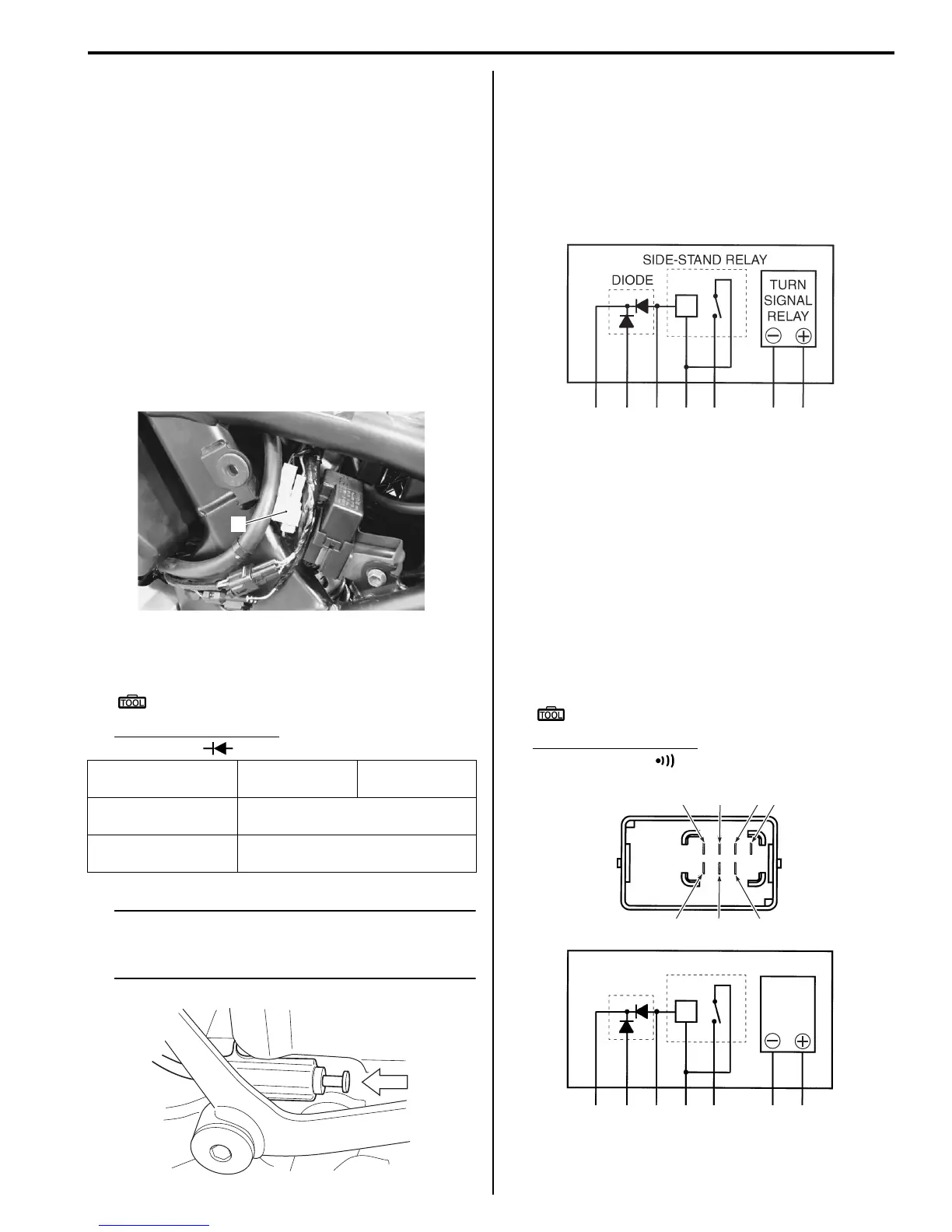

Starting System: 1I-8
Side-stand / Ignition Interlock System Parts
Inspection
B817H21906008
Refer to “Electrical Components Location in Section 0A
(Page 0A-10)”.
Check the interlock system for proper operation. If the
interlock system does not operate properly, check each
component for damage or abnormalities. If any
abnormality is found, replace the component with a new
one.
Side-stand Switch
1) Turn the ignition switch OFF position.
2) Remove the left frame cover. Refer to “Exterior Parts
Removal and Installation (GSF650/S/A/SAK7) in
Section 9D (Page 9D-6)”.
3) Disconnect the side-stand switch coupler (1).
4) Measure the voltage between Green and Black/
White lead wires.
Special tool
: 09900–25008 (Multi-circuit tester set)
Tester knob indication
Diode test ( )
NOTE
If the tester reads 1.4 V and below when the
tester probes are not connected, replace its
battery.
5) Connect the side-stand switch coupler.
6) Install the left frame cover. Refer to “Exterior Parts
Removal and Installation (GSF650/S/A/SAK7) in
Section 9D (Page 9D-6)”.
Turn Signal / Side-stand Relay
The turn signal/side-stand relay is composed of the turn
signal relay, side-stand relay and diode.
Side-stand relay
1) Remove the turn signal/side-stand relay. Refer to
“Turn Signal / Side-stand Relay Removal and
Installation (Page 1I-7)”.
2) Check the insulation between “D” and “E” terminals
using the multi-circuit tester.
3) Apply 12 V to terminals “D” and “C” ((+) to “D” and (–
) to “C”) and check the continuity between “D” and
“E”. If there is no continuity, replace the turn signal/
side-stand relay with a new one. Refer to “Turn
Signal / Side-stand Relay Removal and Installation
(Page 1I-7)”.
Special tool
: 09900–25008 (Multi-circuit tester set)
Tester knob indication
Continuity test ( )
4) Install the turn signal/side-stand relay. Refer to “Turn
Signal / Side-stand Relay Removal and Installation
(Page 1I-7)”.
G
((+) probe)
B/W
((–) probe)
ON
(Side-stand up)
0.4 – 0.6 V
OFF
(Side-stand down)
1.4 V and more
(Testers battery voltage)
1
I717H1190016-01
I718H1190023-01
I649G1190027-02
DIODE
SIDE-STAND RELAY
TURN
SIGNAL
RELAY
“A”“B”“C”“D”
“E” “F” “G”
“A” “B” “C” “D” “E” “F” “G”
I649G1190028-02
