Suzuki GSF650 Service Manual

Fuel System: 1G-3
Schematic and Routing Diagram
Fuel Tank Drain Hose and Breather Hose Routing Diagram
B817H21702001
1
2
1 2
“a”
4
In
sid
e
8
“b”
“C”
6
7
3
“B”
“D”
“A”
5
1
I717H1170016-04

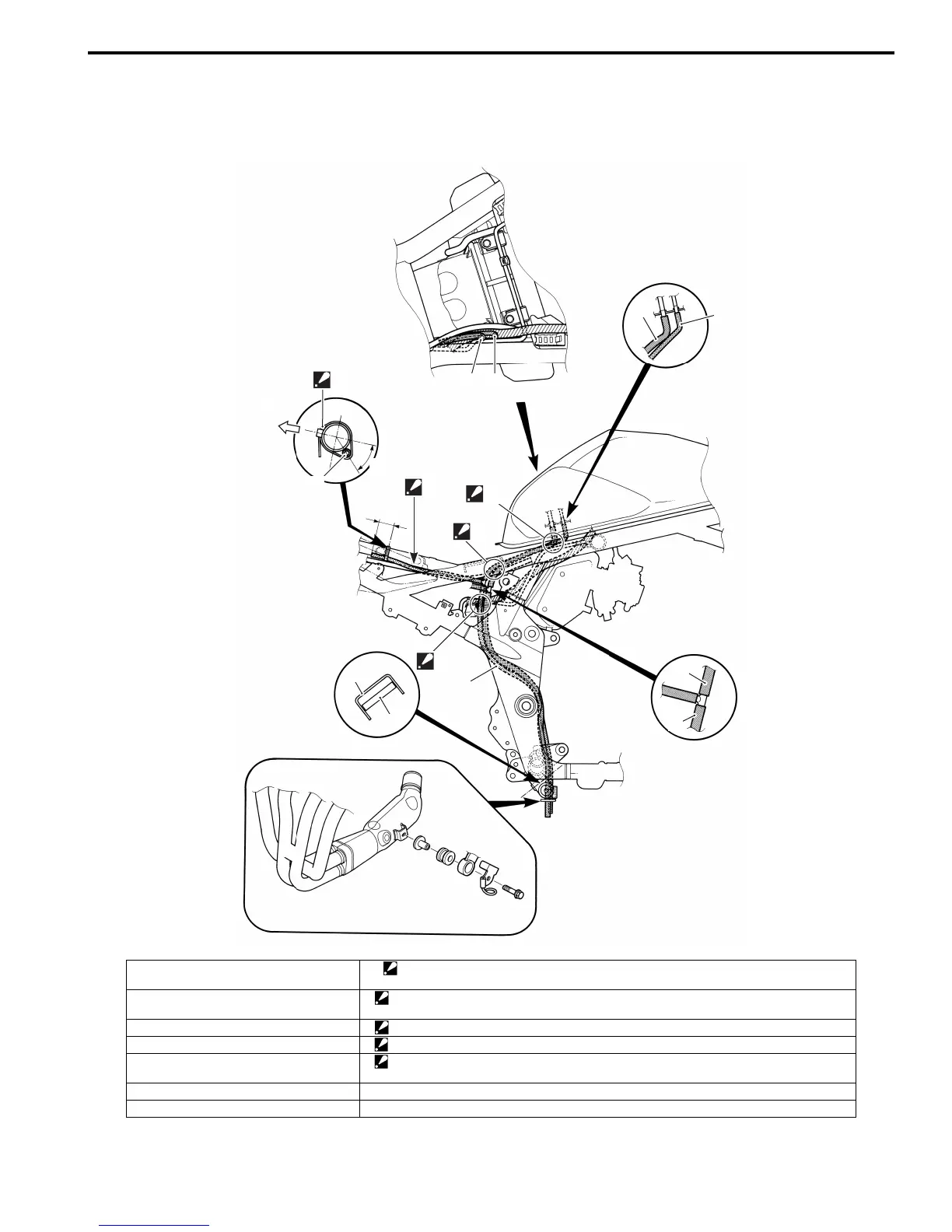

1. Fuel tank drain hose 8. Clamp
: Clamp end should face inside. Tip of clamp should face downward.
2. Fuel tank breather hose No.1 “A”: Be careful not to bind the fuel tank drain hose and fuel tank breather hose with the other
hoses and wire harness.
3. Fuel tank breather hose No.2 “B”: Pass the breather hose and drain hose through outside the reservoir tank inlet hose.
4. Fuel tank breather hose No.3 “C”: Be careful for the hose not to be slackened.
5. Air cleaner drain hose “D”: Pass the breather hose and drain hose through outside the brake pipe.
Pass the breather hose and drain hose through ahead of connector.
6. Frame “a”: 45° ± 15°
7. Drain hose guide “b”: 30 ± 10 mm (1.2 ± 0.4 in)

Suzuki GSF650 Specifications

General

Displacement	656 cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm
Rear Brakes	Disc brake
Fuel Tank Capacity	19.0 L
Wheelbase	1, 470 mm
Seat Height	790 mm
Ground Clearance	135 mm
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
