Suzuki GSF650 Service Manual

4E-1 ABS:
Brake
ABS
Precautions
Precautions for ABS
B817H24500001
Refer to “Precautions for Electrical Circuit Service in
Section 00 (Page 00-2)”.
ABS Information
B817H24500002
WARNING
!
• Be sure to bleed air from the brake fluid
circuit when the brake is felt spongy or
when a brake relating part is replaced.
• Never ride the motorcycle before bleeding
the air.
• Be sure to route the brake hoses correctly.
• The ABS does not shorten the motorcycle’s braking
distance. When riding down slopes or on wet or
bumpy roads the braking distance is lengthened as
compared to a motorcycle without ABS. In addition,
braking distance increases more, when the road is
slippery.
• The ABS does not control slides which may occur
when braking while turning. As with a motorcycle that
does not have ABS, it is best not apply the brakes
while turning.
• The brake levers may move by themselves when they
are applied. This is not a malfunction.
• Only use the specified tires.
General Description
Wheel Speed Sensor Description
B817H24501001

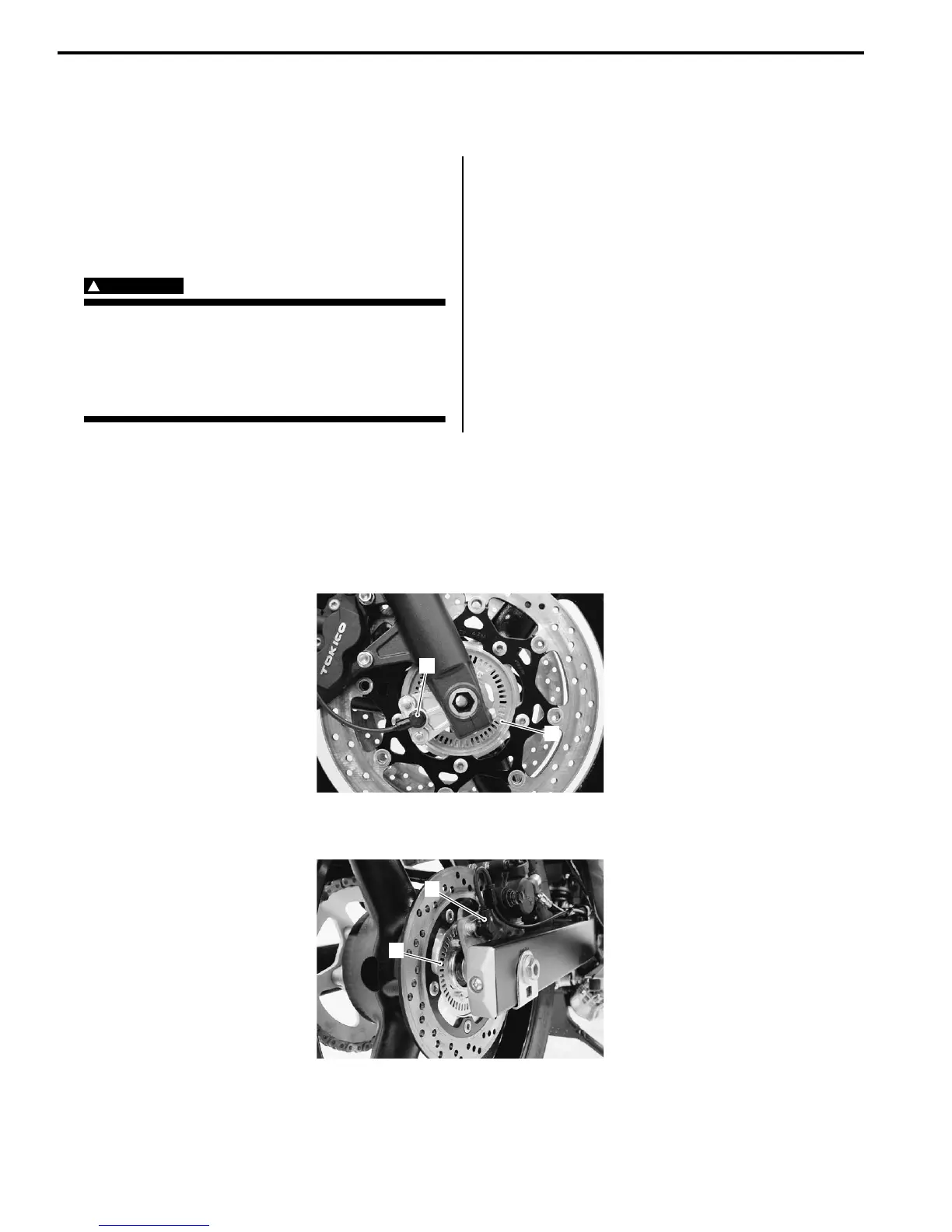

Wheel speed sensor consists of wheel speed sensor (1) and sensor rotor (2).
Front
Rear
1
2
I717H2450001-01
1
2
I717H2450002-01

Suzuki GSF650 Specifications

General

Displacement	656 cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm
Rear Brakes	Disc brake
Fuel Tank Capacity	19.0 L
Wheelbase	1, 470 mm
Seat Height	790 mm
Ground Clearance	135 mm
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
