Suzuki GSF650 Service Manual

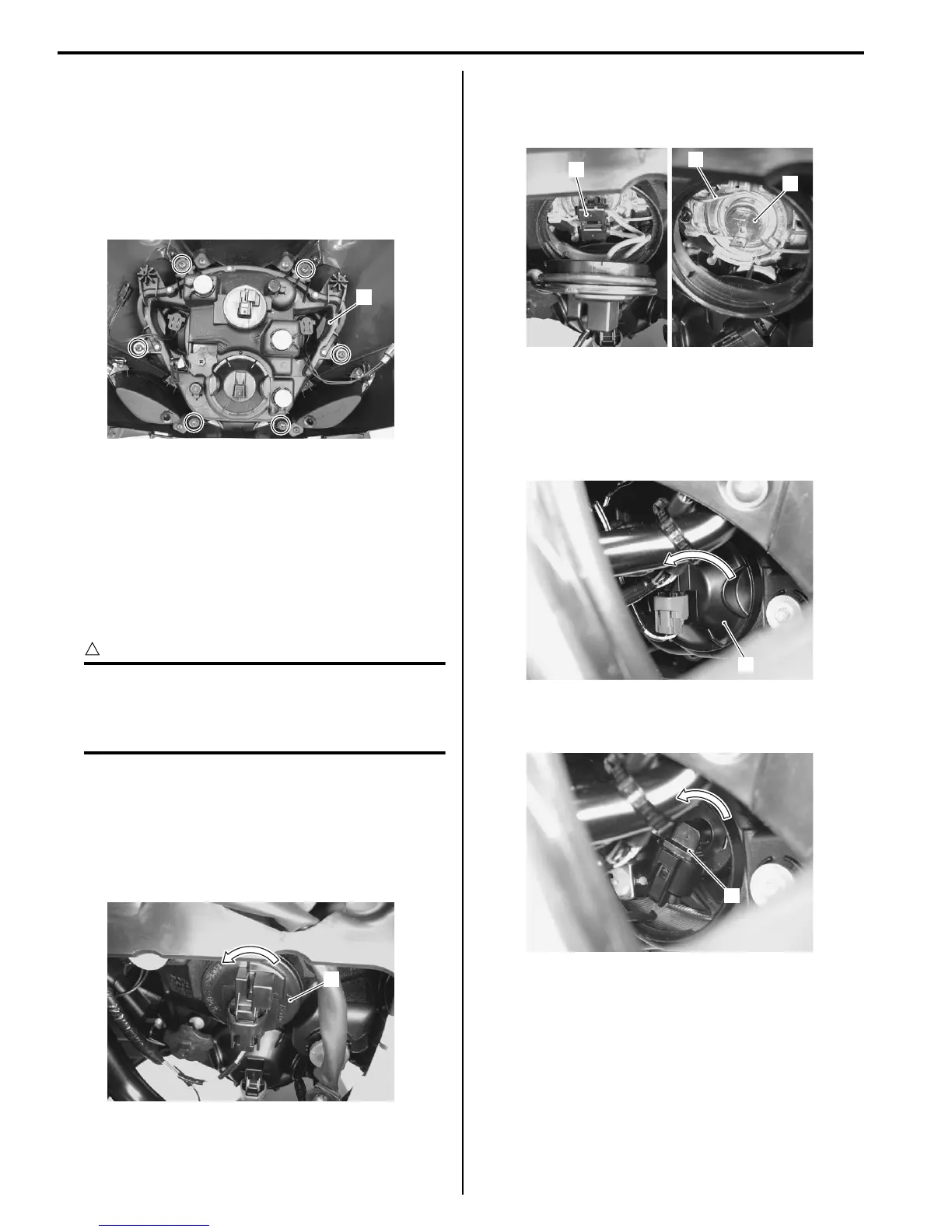

9B-13 Lighting Systems:
Headlight Removal and Installation
(GSX650FK8)
B817H29206025
Removal
1) Remove the body cowling assembly. Refer to
“Exterior Parts Removal and Installation
(GSX650FK8) in Section 9D (Page 9D-14)”.
2) Remove the headlight assembly (1).
Installation
Installation is in the reverse order of removal. Pay
attention to the following point:
• After installing, be sure to inspect the headlight beam.
Refer to “Headlight Beam Adjustment (GSX650FK8)
(Page 9B-14)”.
Headlight Bulb Replacement (GSX650FK8)
B817H29206026
CAUTION
!
When you touch the bulb with your bare
hands, clean the bulb with a cloth moistened
with alcohol or soapy water to prevent
premature bulb failure.
Low Beam
1) Remove the combination meter assembly. Refer to
“Combination Meter Removal and Installation
(GSX650FK8) in Section 9C (Page 9C-13)”.
2) Remove the bulb cap (1) by turning it
counterclockwise.
3) Disconnect the low beam lead wire coupler (2).
4) Replace the low beam bulb (3) by unhooking the
bulb holder spring (4).
5) Reinstall the removed parts.
High Beam
1) Remove the bulb cap (1) by turning it
counterclockwise.
2) Remove the bulb socket (2) by turning it
counterclockwise.
1
I817H2920002-01
1
I817H2920003-01
3
4
2
I817H2920006-02
1
I817H2920007-01
2
I817H2920008-01

Suzuki GSF650 Specifications

General

Displacement	656 cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm
Rear Brakes	Disc brake
Fuel Tank Capacity	19.0 L
Wheelbase	1, 470 mm
Seat Height	790 mm
Ground Clearance	135 mm
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
