Suzuki GSF650 Service Manual

Clutch: 5C-12

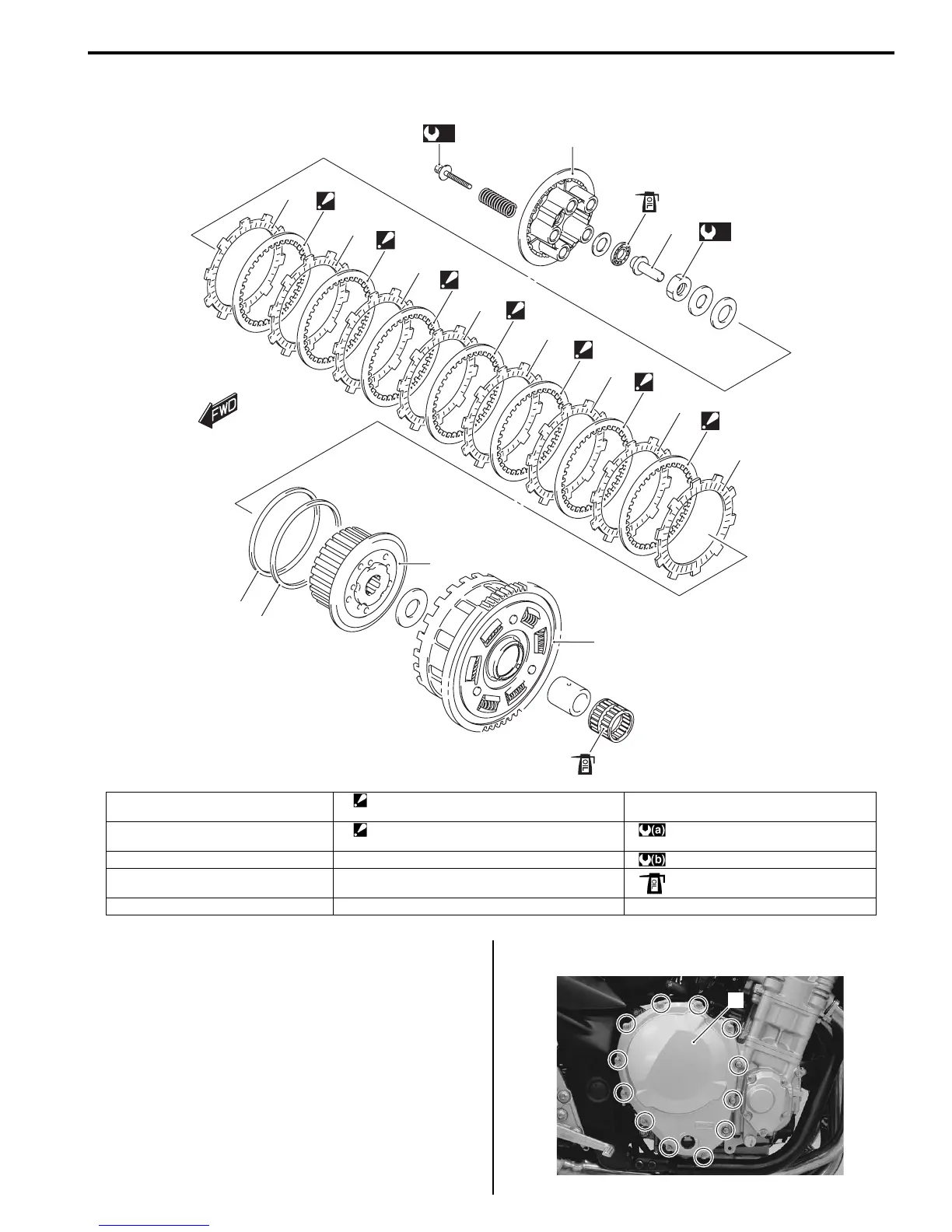

Clutch Components
B817H25306015
Clutch Removal
B817H25306016
1) Drain engine oil. Refer to “Engine Oil and Filter
Replacement in Section 0B (Page 0B-12)”.
2) Remove the clutch cover (1).
(a)
(b)
2
3
6
7
7
7
7
7
7
4
4
4
4
4
4
5
1
10
8
9
11
I717H1530001-01
1. Clutch pressure plate 6. No.1 driven plate (0 – 2 pcs)
: The No.1 and No.2 driven plates are 7 in total.
11. Primary driven gear assembly
2. Clutch push piece 7. No.2 driven plate (5 – 7 pcs)
: The No.1 and No.2 driven plates are 7 in total.
: 150 N⋅m (15.0 kgf-m, 108.5 lb-ft)
3. No.2 drive plate 8. Spring washer : 10 N⋅m (1.0 kgf-m, 7.0 lb-ft)
4. No.1 drive plate 9. Spring washer seat : Apply engine oil.
5. No.3 drive plate 10. Clutch sleeve hub
1
I717H1530002-01
