Suzuki GSF650 Service Manual

Rear Brakes: 4C-6

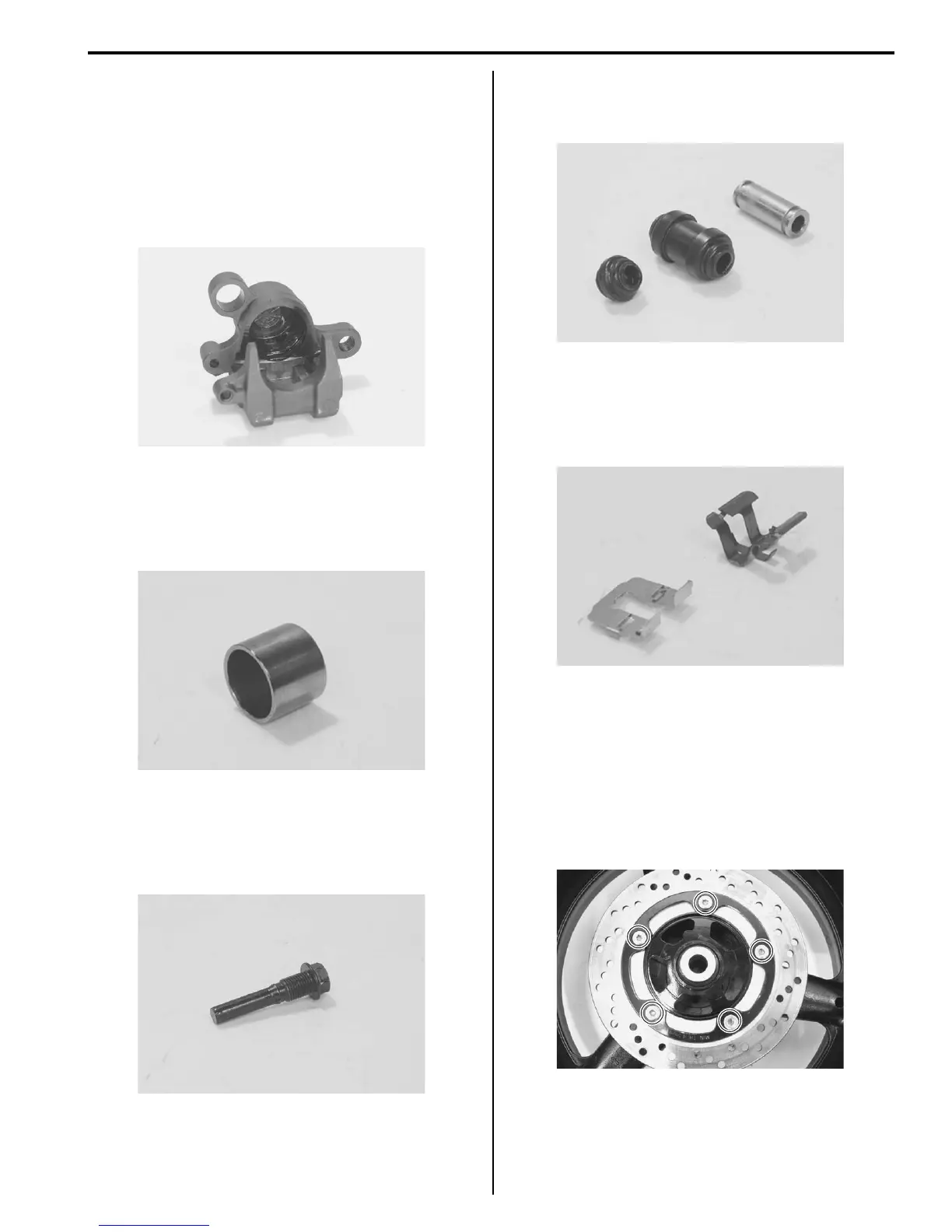

Rear Brake Caliper Parts Inspection
B817H24306006
Refer to “Rear Brake Caliper Disassembly and
Assembly (Page 4C-4)”.
Brake Caliper Cylinder
Inspect the brake caliper cylinder wall for nicks,
scratches or other damage. If any damage is found,
replace the caliper with a new one.
Brake Caliper Piston
Inspect the brake caliper piston surface for any
scratches or other damage. If any damage is found,
replace the piston with a new one.
Brake Caliper Sliding Pin
Inspect the brake caliper sliding pin for wear and other
damage. If any damage is found, replace the sliding pin
with a new one.
Boot and Spacer
Inspect the boots and spacer for damage and wear. If
any defects are found, replace them with new ones.
Brake Pad Spring
Inspect the brake pad springs for damage and excessive
bend. If any defects are found, replace them with new
ones.
Rear Brake Disc Removal and Installation
B817H24306007
Removal
1) Remove the rear wheel assembly. Refer to “Rear
Wheel Assembly Removal and Installation (GSF650/
S/U/SUK7) in Section 2D (Page 2D-11)”.
2) Remove the rear brake disc.
I649G1430020-02
I649G1430021-02
I649G1430022-02
I649G1430023-02
I649G1430024-02
I717H1430013-01

Suzuki GSF650 Specifications

General

Displacement	656 cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm
Rear Brakes	Disc brake
Fuel Tank Capacity	19.0 L
Wheelbase	1, 470 mm
Seat Height	790 mm
Ground Clearance	135 mm
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
