Suzuki GSF650 - Rear Wheel Components (GSF650 A;UA;SA;ASUK7)

2D-23 Wheels and Tires:

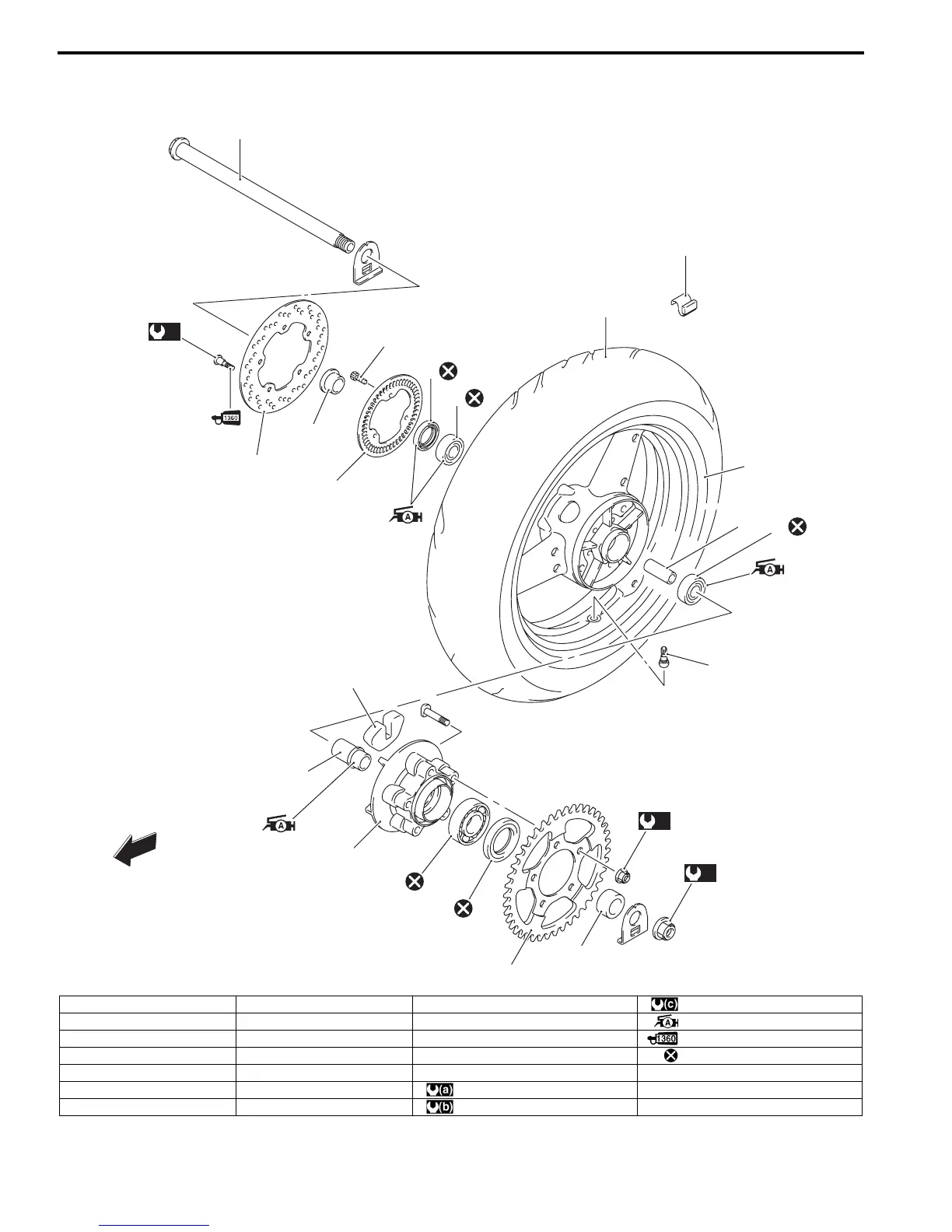

Rear Wheel Components (GSF650A/UA/SA/ASUK7)
B817H22406018
19
1
(c)
6
7
5
18
3
2
4
17
8
9
16
10
11
12
FWD
FWD
(a)
(b)
15
14
13
6
I717H2240003-01
1. Rear axle 8. Spacer 15. Collar : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
2. Brake disc 9. Bearing 16. Air valve : Apply grease.
3. Spacer 10. Wheel damper 17. Rear wheel : Apply thread lock to thread part.
4. Sensor rotor bolt 11. Retainer 18. Tire : Do not reuse.
5. Wheel speed sensor rotor 12. Sprocket mounting drum 19. Wheel balancer
6. Dust seal 13. Bearing : 100 N⋅m (10.0 kgf-m, 72.5 lb-ft)
7. Bearing 14. Sprocket : 60 N⋅m (6.0 kgf-m, 43.5 lb-ft)
