Suzuki GSF650 Service Manual

3A-2 Drive Chain / Drive Train / Drive Shaft:
Engine Sprocket Removal and Installation
B817H23106002

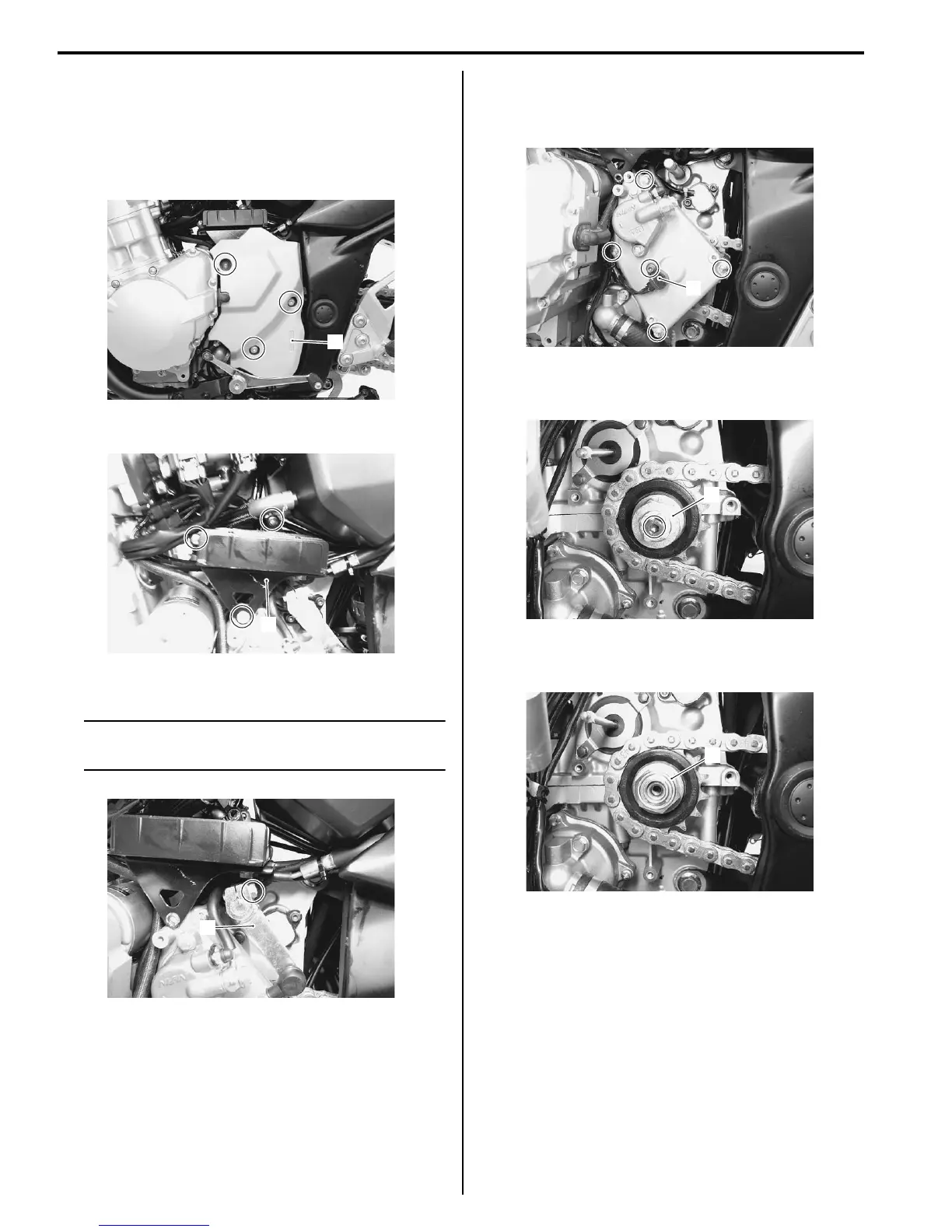

Removal
1) Support the motorcycle with the center stand.
2) Remove the engine sprocket outer cover (1).
3) Remove the regulator/rectifier bracket (2).
4) Remove the gearshift link arm (3).
NOTE
Mark the marking to the matching surface of
gearshift link arm before removing.
5) Remove the speed sensor (4).
6) Remove the engine sprocket cover along with the
clutch release cylinder.
7) Remove the speed sensor rotor (5) by removing its
bolt while depressing the rear brake pedal.
8) Remove the engine sprocket nut (6) while
depressing the rear brake pedal.
1
I717H1310002-02
2
I717H1310003-03
3
I717H1310004-02
4
I717H1310005-03
5
I717H1310006-05
6
I717H1310007-01

Suzuki GSF650 Specifications

General

Displacement	656 cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm
Rear Brakes	Disc brake
Fuel Tank Capacity	19.0 L
Wheelbase	1, 470 mm
Seat Height	790 mm
Ground Clearance	135 mm
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
