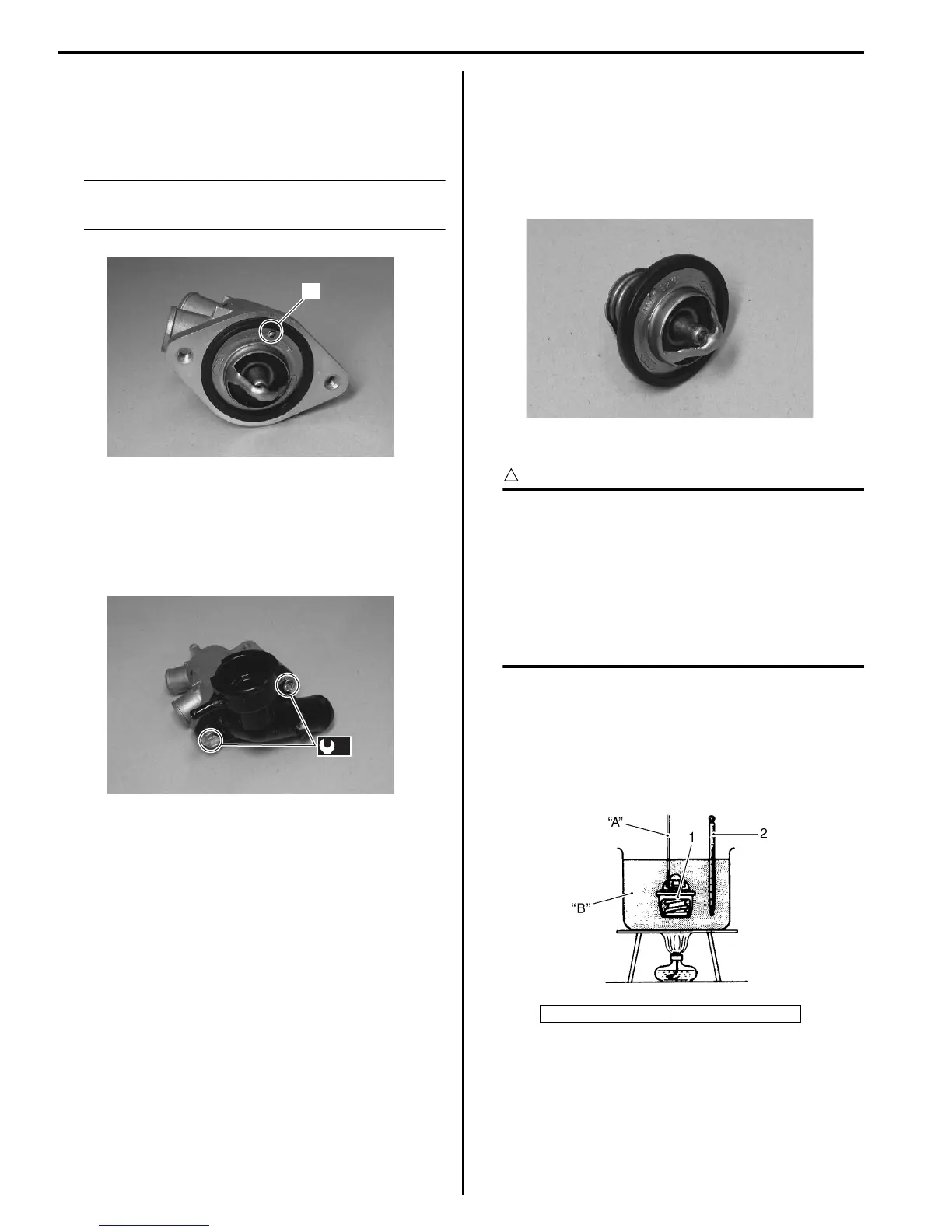

1F-10 Engine Cooling System:
Installation
Install the thermostat in the reverse order of removal.
Pay attention to the following points:
• Install the thermostat.
NOTE
The jiggle valve “A” of the thermostat faces
upside.
• Tighten the thermostat connector bolts to the specified
torque.
Tightening torque
Thermostat connector bolt (a): 10 N·m (1.0 kgf-
m, 7.0 lbf-ft)
• Connect the water hoses securely. Refer to “Water
Hose Routing Diagram (Page 1F-3)”.
• Pour engine coolant and bleed air from the cooling
circuit. Refer to “Cooling System Inspection in Section
0B (Page 0B-14)”.
Thermostat Inspection
B817H21606014
Inspect the thermostat in the following procedures:
1) Remove the thermostat. Refer to “Thermostat
Connector / Thermostat Removal and Installation
(Page 1F-9)”.
2) Inspect the thermostat pellet for signs of cracking.
3) Test the thermostat at the bench for control action.
CAUTION
!
• Do not contact the thermostat (1) and the
column thermometer (2) with a pan.
• As the thermostat operating response to
water temperature change is gradual, do
not raise water temperature too quickly.
• The thermostat with its valve open even
slightly under normal temperature must be
replaced.
4) Immerse the thermostat (1) in the water contained in
a beaker and note that the immersed thermostat is in
suspension.
5) Heat the water by placing the beaker on a stove and
observe the rising temperature on a thermometer
(2).
“A”
I718H1160007-01
(a)
I717H1160020-01
“A”: String “B”: Water
I718H1160051-01
I705H1160030-03
