Combination Meter / Fuel Meter / Horn: 9C-2
Combination Meter System Description (GSX650FK8)
B817H29301002
This combination meter mainly consists of the stepping motor, LCD (Liquid Crystal Display) and LED (Light Emitting
Diode).
The rpm pointer is driven by the stepping motor.
The LCDs indicate Speed, Odo / Trip 1 / Trip 2 / Fuel reserve’s trip / Clock / FI (DTC), Gear position, Engine revolution
indicator and Fuel level indicator respectively.
LED (Light Emitting Diode)
LED is used for the illumination light and each indicator light.
LED is maintenance free. LED is less electric-power consuming and stronger to vibration resistance compared to the
bulb.
Engine Revolution Indicator Lamp
This speedometer is equipped the engine revolution indicator lamp. The engine revolution indicator lamp is adjustable
from 6 000 – 12 500 r/min. (from 6 000 r/min to 10 000 r/min, every 500 r/min and 10 000 r/min to 12 500 r/min, every
250 r/min: Initial setting: 11 000 r/min)
FI
1
2
7
14
8
3
4
5
9
15
10
6
13
11
12
14

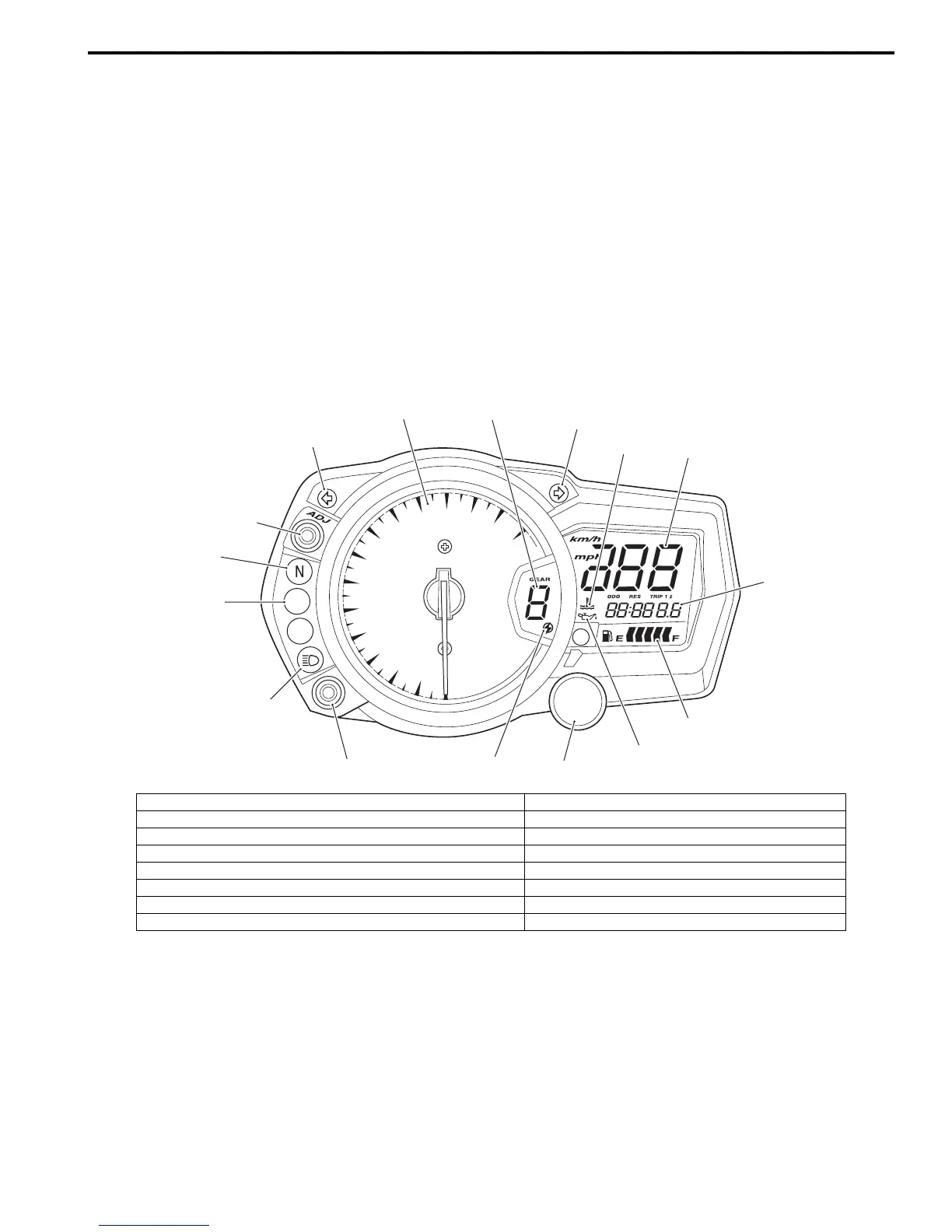

I817H2930001-02
1. Adjust switch (Trip / Engine revolution / Clock) 9. LCD (Oil pressure indicator light)
2. LED (Tachometer) 10. LCD (Engine revolution indicator)
3. LCD (Speedometer) 11. LED (FI indicator light)
4. LCD (Odo / Trip 1/ Trip 2 / Clock / FI (DTC)) 12. LED (Neutral indicator light)
5. LCD (Fuel level indicator) 13. LED (High-beam indicator light)
6. Select switch (Odo / Trip 1 / Trip 2 / Fuel reserve’s trip / Clock) 14. LED (Turn signal indicator light)
7. LCD (Gear position) 15. LED (Engine revolution indicator light)
8. LCD (Engine coolant temperature indicator light)
