Suzuki GSF650 Service Manual

Engine Mechanical: 1D-9

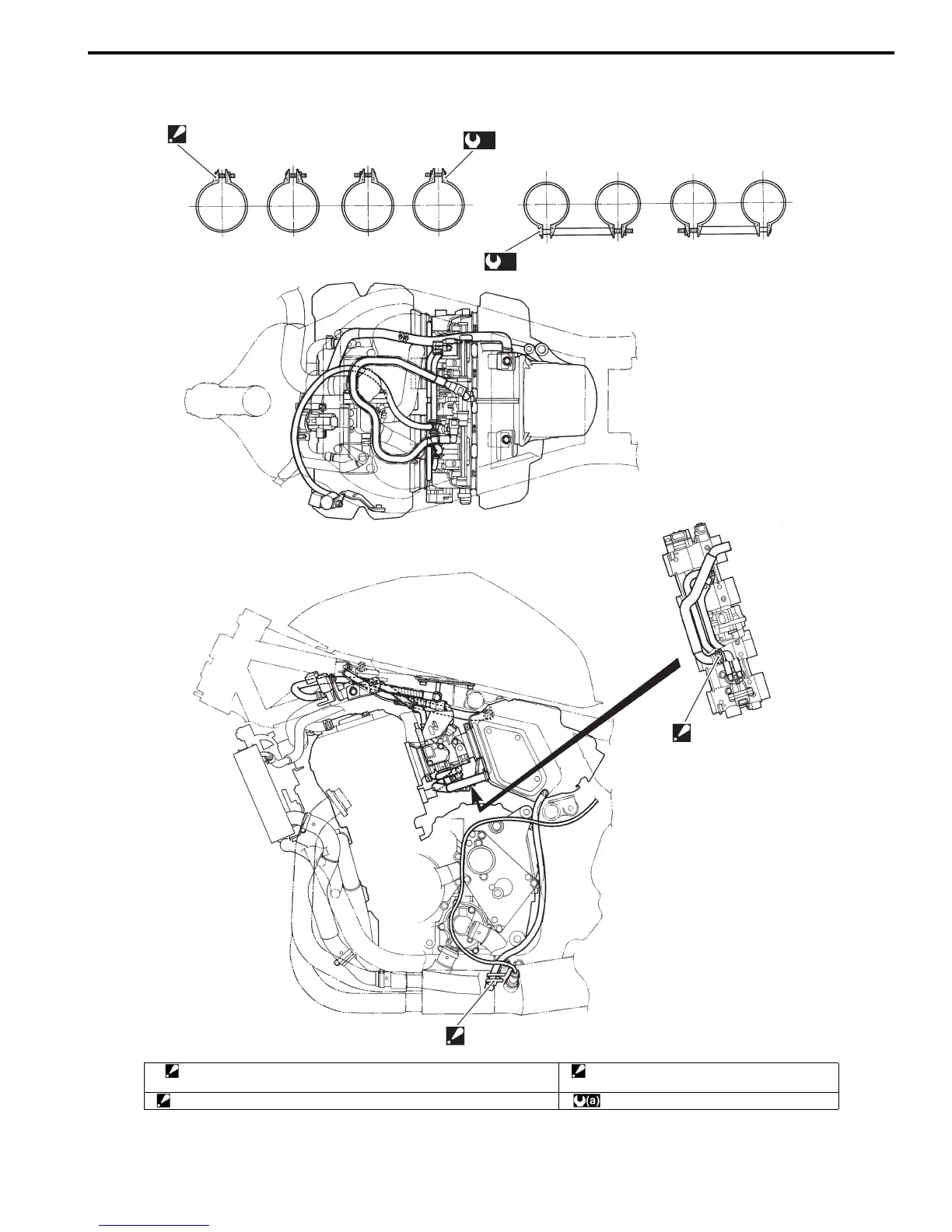

Throttle Body Construction
B817H21406009
“B”
LH LHRH
RH
Upper Upper
Air cleaner side
Engine side
1
(a)
(a)
“A”
I717H1140014-01
1. Clamp (Air cleaner side)
: After tighten the clamp band #3, 4 and tighten the clamp band #1, 4.
“B”: Clamp the drain hose at mark position.
“A”: White mark downward. : 1.5 N⋅m (0.15 kgf-m, 1.0 Ib-ft)
