Suzuki GSF650 Service Manual

6B-3 Steering / Handlebar:

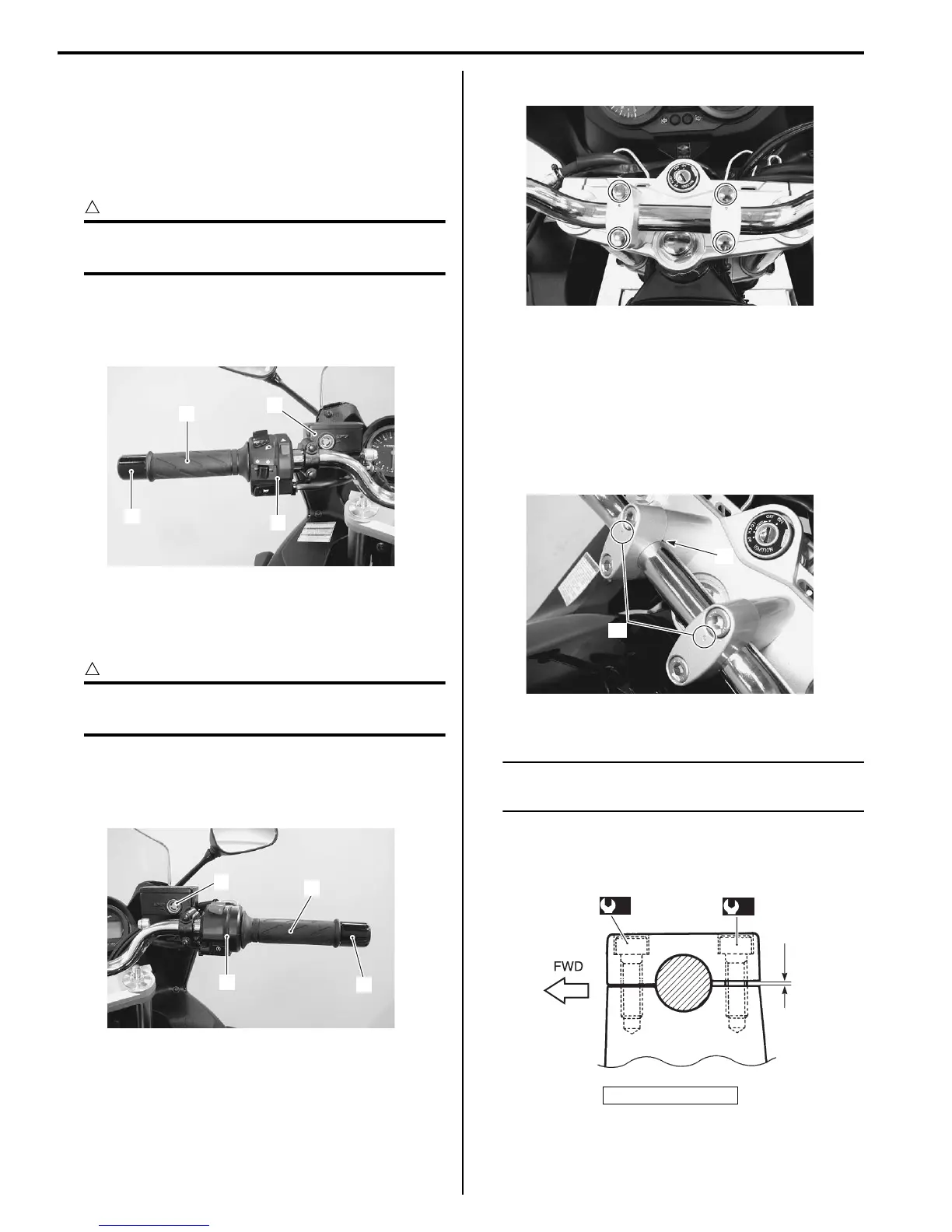

Handlebars Removal and Installation
B817H26206003
Removal
1) Remove the following parts from the left handlebar.
a) Rear view mirror (GSF650)
b) Clutch master cylinder/clutch lever (1)
CAUTION
!
Do not turn the clutch master cylinder upside
down.
c) Left handlebar switch box (2)
d) Handlebar balancer (3)
e) Grip rubber (4)
2) Remove the following parts from the right handlebar.
a) Rear view mirror (GSF650)
b) Front brake master cylinder/Front brake lever (5)
CAUTION
!
Do not turn the front brake master cylinder
upside down.
c) Right handlebar switch box (6)
d) Handlebar balancer (7)
e) Throttle grip (8)
3) Remove the caps and handlebar holder bolts.
Installation
Install the handlebars in the reverse order of removal.
Pay attention to the following points:
• Set the handlebars so that its punch mark “A” aligns
with the mating surface of the left handlebar holder.
• Set the handlebar holders with their punch marks “B”
forward.
• Tighten the handlebar holder bolts.
NOTE
First tighten the handlebar holder bolts (1)
(front ones) to the specified torque.
Tightening torque
Handlebar holder bolt (a): 23 N·m (2.3 kgf-m, 16.5
lbf-ft)
1
2
3
4
I717H1620001-01
5
6
7
8
I717H1620002-02
“a”: Clearance
I717H1620003-02
“A”
“B”
I717H1620004-02
(a)
1,
(a)
“a”
I649G1620006-02

Suzuki GSF650 Specifications

General

Displacement	656 cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm
Rear Brakes	Disc brake
Fuel Tank Capacity	19.0 L
Wheelbase	1, 470 mm
Seat Height	790 mm
Ground Clearance	135 mm
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
