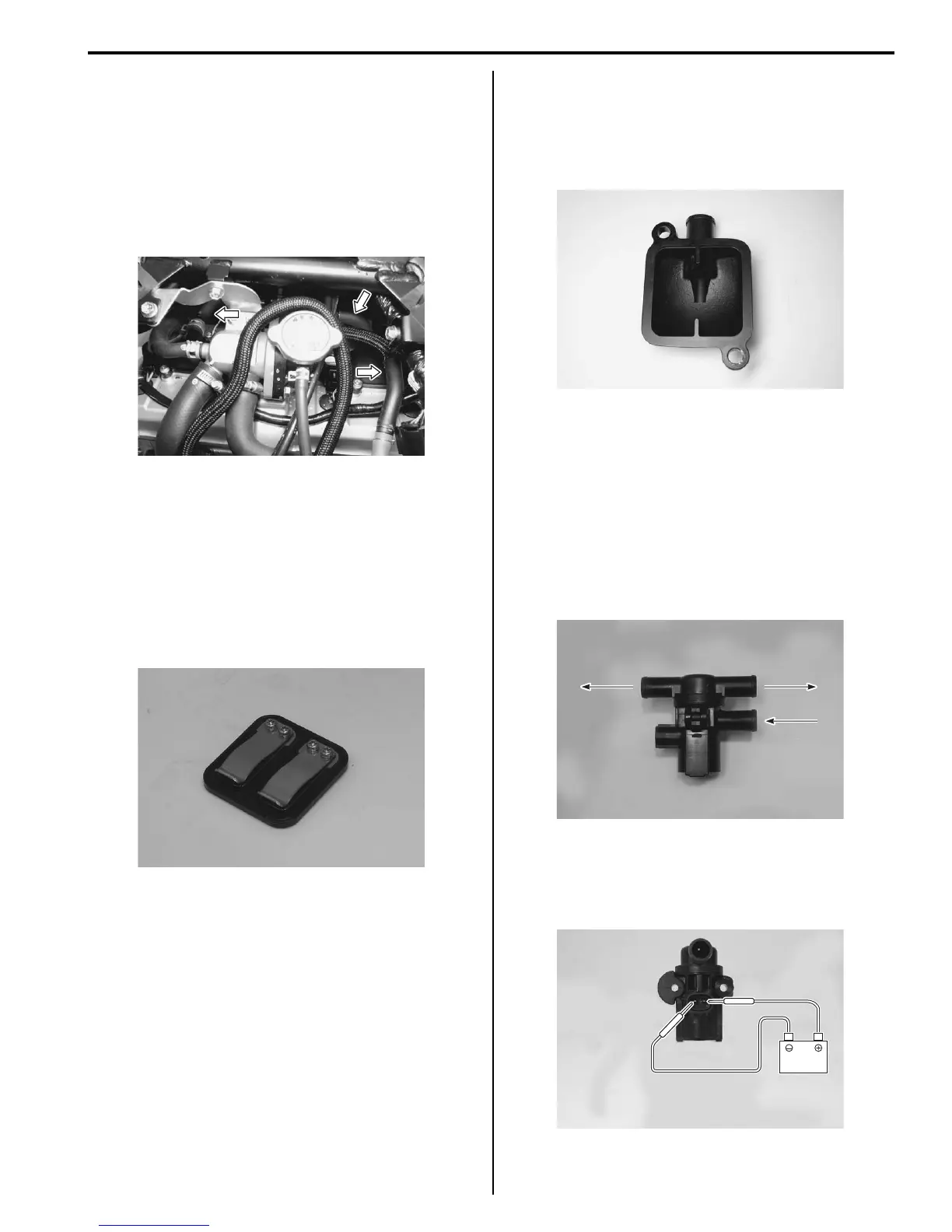

Emission Control Devices: 1B-7
PAIR System Inspection
B817H21206005
PAIR Hose
1) Remove the fuel tank. Refer to “Fuel Tank Removal
and Installation in Section 1G (Page 1G-9)”.
2) Inspect the hoses for wear or damage. If it is worn or
damaged, replace the PAIR hose with a new one.
Refer to “PAIR System Hose Routing Diagram
(Page 1B-4)”.
3) Reinstall the fuel tank. Refer to “Fuel Tank Removal
and Installation in Section 1G (Page 1G-9)”.
PAIR Reed Valve
1) Remove the PAIR reed valves. Refer to “PAIR Reed
Valve Removal and Installation (Page 1B-6)”.
2) Inspect the reed valves for the carbon deposit.
If the carbon deposit is found in the reed valve,
replace the PAIR reed valve with a new one.
3) Reinstall the PAIR reed valve. Refer to “PAIR Reed
Valve Removal and Installation (Page 1B-6)”.
PAIR Reed Valve Cover
1) Remove the PAIR reed valve covers. Refer to “PAIR
Reed Valve Removal and Installation (Page 1B-6)”.
2) Inspect the PAIR reed valve for carbon deposit. If the
carbon deposit is found in the PAIR reed valve cover.
3) Install the PAIR reed valve cover. Refer to “PAIR
Reed Valve Removal and Installation (Page 1B-6)”.
PAIR Control Solenoid Valve
1) Remove the PAIR control solenoid valve. Refer to
“PAIR Control Solenoid Valve Removal and
Installation (Page 1B-6)”.
2) Check that air flows through the air inlet port to the
air outlet port. If air does not flow out, replace the
PAIR control solenoid valve with a new one.
3) Connect the 12 V battery to the PAIR control
solenoid valve terminals and check the air flow. If air
does not flow out, the solenoid valve is normal
condition.
I717H1120006-01
I718H1120032-01
I717H1120007-01
I718H1120033-01
12V
I718H1120034-01
To Next Page
