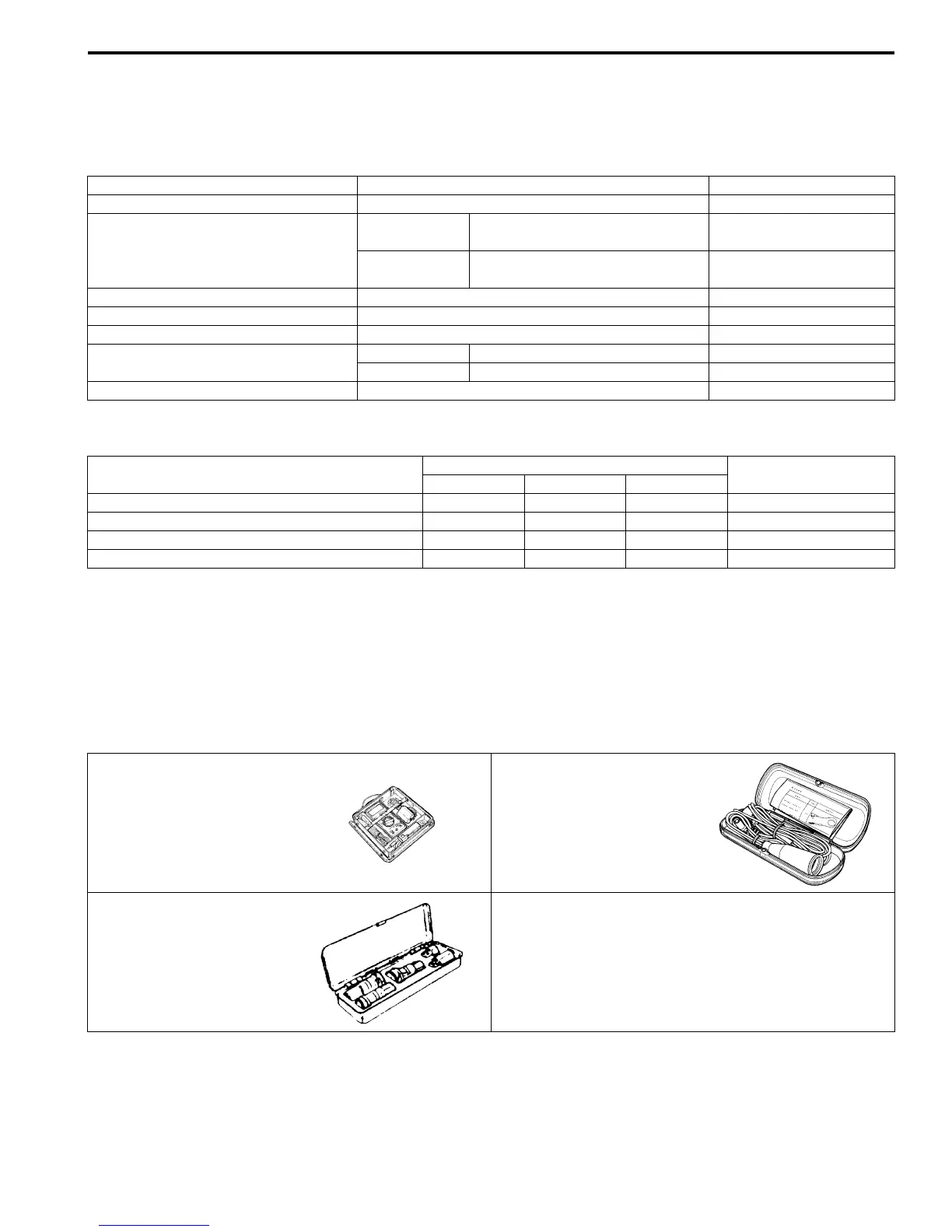

Ignition System: 1H-9
Specifications
Service Data
B817H21807001
Electrical
Unit: mm (in)
Tightening Torque Specifications
B817H21807002
Reference:
For the tightening torque of fastener not specified in this section, refer to “Tightening Torque List in Section 0C
(Page 0C-7)”.
Special Tools and Equipment
Special Tool
B817H21808001
Item Specification Note
Firing order 1 ⋅ 2 ⋅ 4 ⋅ 3
Spark plug
Type
NGK: CR9E
DENSO: U27ESR-N
Gap
0.7 – 0.8
(0.028 – 0.031)
Spark performance Over 8 (0.3) at 1 atm.
CKP sensor resistance 90 – 150 Ω
CKP sensor peak voltage 2.0 V and more When cranking
Ignition coil resistance
Primary 1.1 – 1.9 Ω Terminal – Terminal
Secondary 10.8 – 16.2 kΩ Plug cap – Terminal
Ignition coil primary peak voltage 80 V and more When cranking
Fastening part
Tightening torque
Note
N⋅mkgf-mlbf-ft
Spark plug 11 1.1 8.0 )(Page 1H-3)
Steering stem head nut 65 6.5 47.0 )(Page 1H-8)
Front fork upper clamp bolt 23 2.3 16.5 )(Page 1H-8)
Handlebar holder set nut 45 4.5 32.5 )(Page 1H-8)
09900–25008 09900–25009
Multi-circuit tester set Needle pointed probe set
)(Page 1H-4) / )(Page 1H-
5) / )(Page 1H-6) /
)(Page 1H-7)
)(Page 1H-4)
09930–10121
Spark plug wrench set
)(Page 1H-3) / )(Page 1H-
3)
